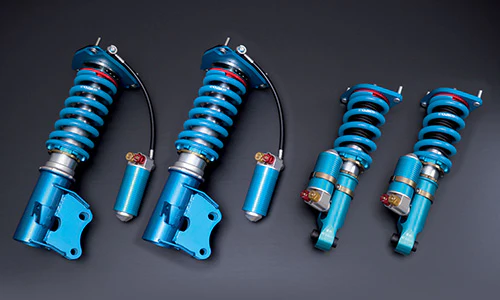

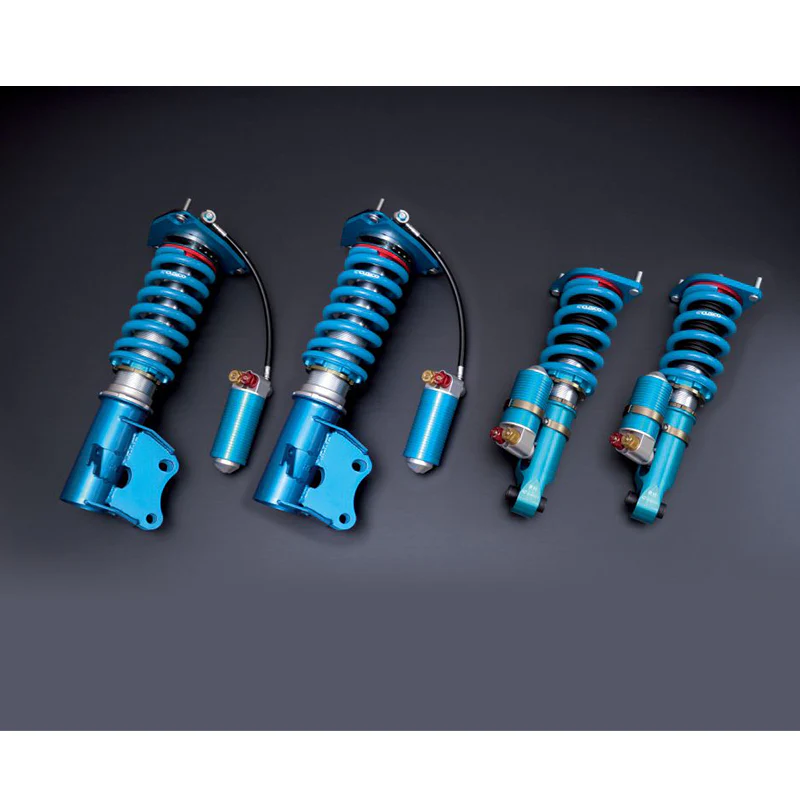

Cusco 692 64X CP Sport X 3-Way Adjustable Coilover Kit

The Cusco Sport X 692 64X CP is a competition-grade coilover suspension system engineered for serious track use with high-grip sports radials and semi-slick tires. Designed for Subaru Impreza WRX STI (GRB/GVB/GRF/GVF chassis, 2008-2014), this system delivers professional-level suspension tuning capabilities for time attack, circuit racing, and competitive motorsports applications.

Key Features:

• 3-Way Damping Adjustment: Professional-grade tuning with independent 24-step adjustments for rebound, low-speed compression, and high-speed compression damping
• External Reservoir Tank System: Separate external reservoirs increase fluid capacity for enhanced damper stability, longer piston stroke, and superior heat dissipation during extended track sessions
• Monotube Construction: Large-diameter piston design provides increased rigidity and larger volume chamber for superior damper control across all stroke speeds
• Full-Length Adjustable: Complete height adjustment range independent of spring preload, maintaining optimal damper stroke regardless of ride height setting
• Cusco Blue Springs: Shot-peened and wound using advanced anti-sagging metallurgy with multiple spring rate options available (Front: 12kg standard or optional 9/10/11/14/16kg; Rear: 14kg standard or optional 9/10/12/16/18/20kg)
• Pillow Ball Upper Mounts: Standard equipment includes precision-crafted pillow ball upper mounts for reduced deflection and improved response
• Inverted Strut Design: Ram-type (inverted) shock absorbers on front strut applications provide enhanced durability and precision

Specifications:

• Front Damping: 24-step 3-way adjustment, full-length height adjustable
• Rear Damping: 24-step 3-way adjustment, full-length height adjustable
• Recommended Height Adjustment: Front -60mm to 0mm, Rear -60mm to -20mm
• Front Spring Rate: 12kg/mm standard (optional rates available)
• Rear Spring Rate: 14kg/mm standard (optional rates available)

The Cusco Sport X series represents the pinnacle of Cusco's racing coilover development, specifically engineered for drivers seeking to extract maximum performance on track. The sophisticated 3-way damping adjustment system provides unparalleled control over suspension behavior, allowing fine-tuning for specific circuit conditions, tire compounds, and driving styles. This is a professional-grade suspension system designed for dedicated competition use where ride quality is secondary to ultimate performance and lap time reduction.
