Fabtech K4152DL Crawler Coilover Conversion Kit with Dirt Logic Reservoir Shocks - 5 2.5

The Fabtech K4152DL 5-inch Crawler Coilover Conversion system transforms your 2018-2020 Jeep Wrangler JL 4-door into a high-performance off-road machine with superior suspension damping and exceptional on-highway ride quality. This complete bolt-on system replaces the traditional separate coil spring and shock configuration with integrated Dirt Logic 2.5 stainless steel coilovers for dramatically improved performance.

Key Features:

• 5-inch lift height optimized for 35-inch tires and aggressive off-road use

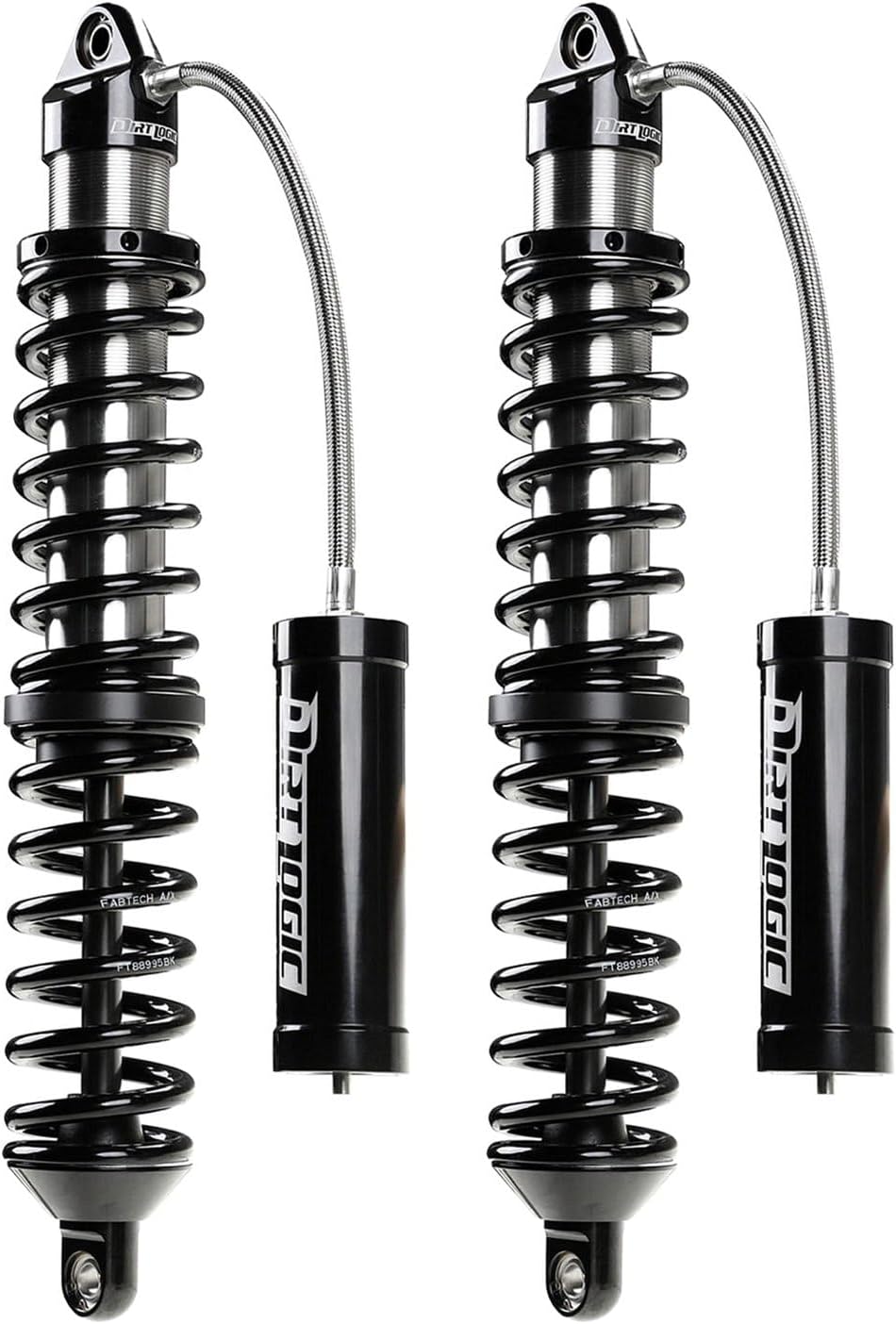

• Dirt Logic 2.5 stainless steel coilovers with remote reservoirs for fade-free performance
• 12.50 inches of wheel travel with Jeep JL-specific valving for balanced ride quality
• Retains factory coil spring buckets for straightforward bolt-on installation
• Heavy-duty axle brackets accommodate 9-inch wide wheels with 4.5-inch backspacing
• Clearance for up to 13.50-inch wide tires without rubbing
• Billet aluminum reservoirs with polished and anodized finish for heat dissipation and corrosion resistance
• Stainless steel shock bodies engineered for maximum durability in harsh conditions
• Compatible with optional Dirt Logic 2.25 Hydraulic Bump Stop kit for extreme compression control

The remote reservoir design provides superior heat management during extended off-road use, reducing shock fade and maintaining consistent damping performance. All aluminum components feature a premium polished and anodized finish that delivers both stunning appearance and long-term protection against the elements. This complete coilover conversion system is specifically engineered for the Jeep Wrangler JL 4-door platform, ensuring optimal geometry and performance.
