ICON Vehicle Dynamics K53010 Stage Suspension System for Toyota Tacoma - 10

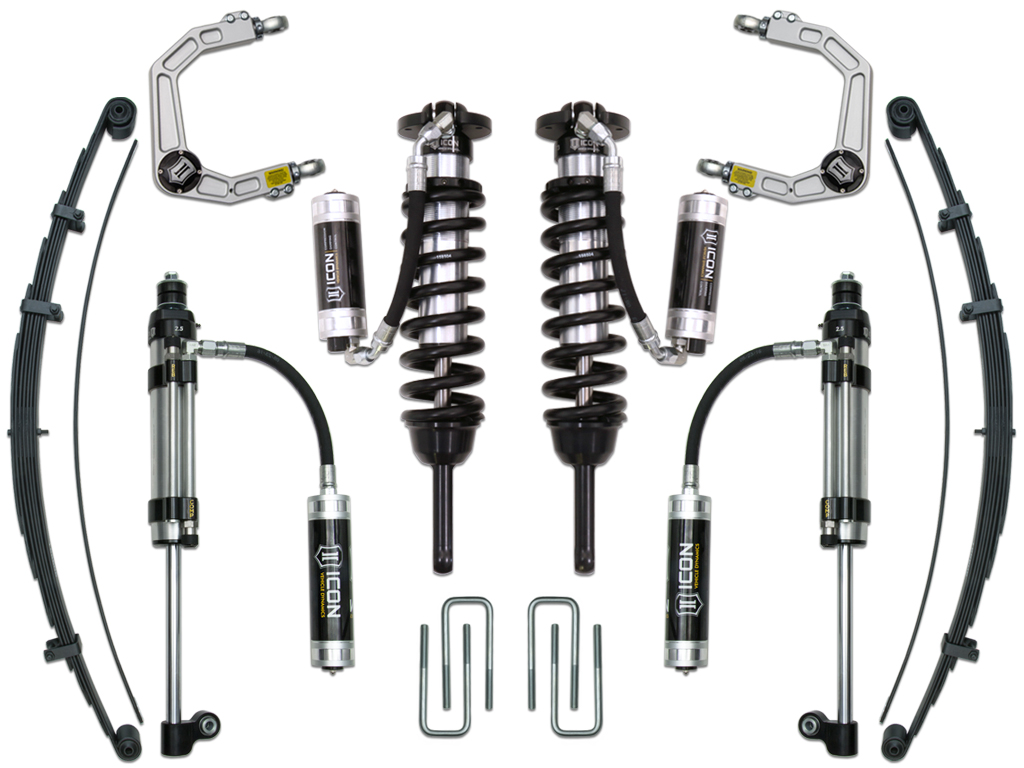

The ICON Vehicle Dynamics Stage 10 Suspension System represents the pinnacle of performance suspension engineering for 2005-2023 Toyota Tacoma trucks. This comprehensive system delivers maximum wheel travel, exceptional damping control, and superior ride quality both on and off-road through a combination of advanced coilover technology, billet upper control arms, multi-rate leaf springs, and bypass rear shocks.

Front Suspension Components:

• 2.5 Series Extended Travel coilover shocks with remote reservoirs for improved cooling and consistent performance under hard use
• CDC Valves (Compression Damping Control) providing 10 settings of compression damping adjustment from soft to hard
• Height adjustable from 0-3.5" on 2005-2015 models or 0-2.75" on 2016-2023 models
• Vehicle-specific tuned coil springs engineered for optimal suspension feel through the full range of travel
• Billet aluminum upper control arms with ICON's patented Delta Joint technology

Rear Suspension Components:

• ICON RXT multi-rate leaf springs with additional leaf included for adjustable spring rate (10-20% increase when added)
• 2.5 Aluminum Series Omega Bypass remote reservoir shocks with side-mount eyelet design
• Ten-inch remote reservoir for superior heat dissipation and fade resistance
• Multiple damping zones with 28 settings of compression and rebound adjustment

Delta Joint Technology:

The included billet upper control arms feature ICON's patented Delta Joint, a revolutionary design that combines the durability of a heavy-duty ball joint with the performance characteristics of a traditional uniball. The Delta Joint offers greater angularity than conventional ball joints while providing superior protection against the elements compared to standard uniballs. Features include a zinc-plated housing for corrosion resistance, grease seals to keep contaminants out, metal-on-metal construction, and a greaseable design for long-term, noise-free operation.

Performance Benefits:

• Dramatically increased front and rear wheel travel over stock suspension
• Corrected front-end geometry with improved camber and caster adjustment range
• Enhanced suspension component clearance for larger wheel and tire combinations
• Optimized for both unloaded daily driving and heavy payload configurations
• Ideal for trucks equipped with bed racks, roof top tents, spare tires, and expedition gear

This Stage 10 system is engineered for serious drivers who demand maximum performance, adjustability, and durability from their Tacoma's suspension. The combination of extended travel geometry, advanced damping technology, and fully adjustable components delivers exceptional control and ride quality in any terrain or driving condition.
