ICON Vehicle Dynamics K53010T Stage Suspension System for Toyota Tacoma - 10

The ICON Vehicle Dynamics Stage 10 Suspension System for 2005-2023 Toyota Tacoma delivers maximum performance and control for both on-road and off-road driving. This comprehensive system provides 0-3.5" of adjustable lift for 2005-2015 models or 0-2.75" for 2016-2023 models, dramatically increasing wheel travel and ride quality over stock components.

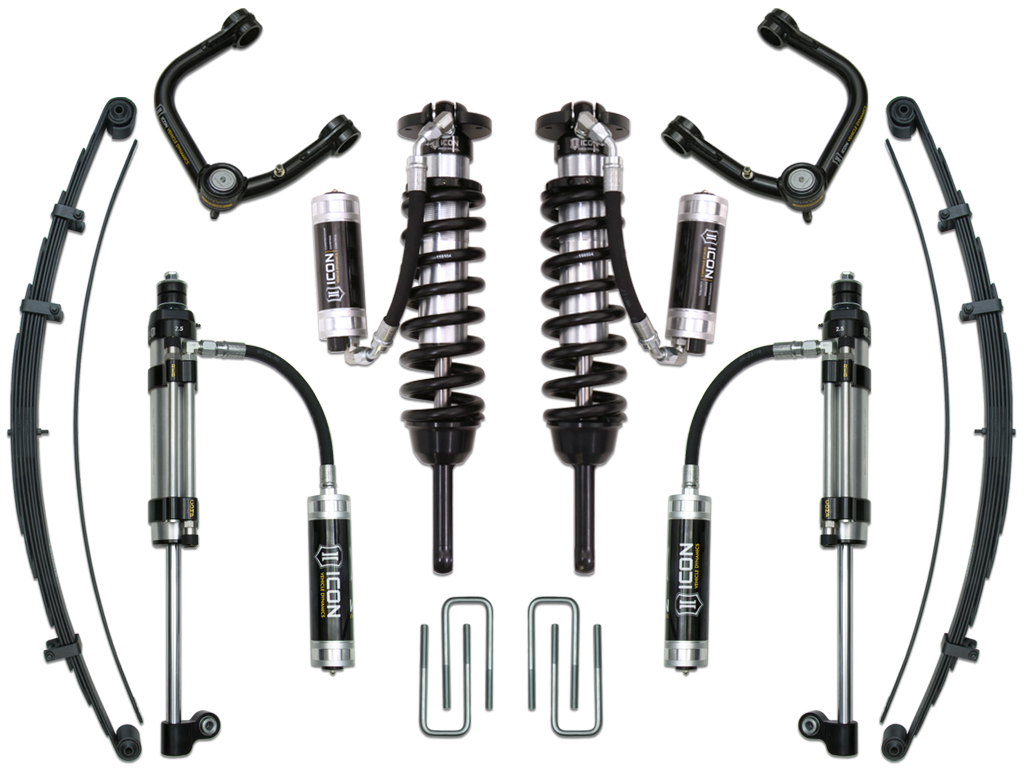

Front Suspension Components:

• 2.5 Series Extended Travel coilover shocks with remote reservoirs for exceptional heat dissipation and consistent performance under demanding conditions
• CDC Valves (Compression Damping Control) providing 10 adjustable compression damping settings from soft to hard
• Vehicle-specific tuned ICON-engineered coil springs for superior feel through the full range of travel
• Height adjustable design allows fitment of larger, more aggressive wheel and tire combinations
• Tubular upper control arms with patented Delta Joint technology for corrected geometry, additional caster, and improved component clearance

Rear Suspension Components:

• ICON RXT multi-rate leaf springs with additional leaf that can be exchanged or added to increase spring rate by 10-20%
• 2.5 Aluminum Series Omega Bypass remote reservoir shocks with side-mount eyelet design for maximum travel in factory mounting locations
• Ten-inch remote reservoir for superior heat dissipation and fade resistance
• 28 settings of compression and rebound adjustment for ultimate tuning control
• Multiple damping zones with vehicle-specific valving

Delta Joint Technology:

The included billet aluminum upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the articulation performance of a uniball. Unlike standard uniballs that are exposed to the elements, the Delta Joint features a zinc-plated housing and grease seal for superior corrosion resistance and longevity. The metal-on-metal construction with greaseable design ensures noise-free operation and extended service life in daily driving conditions.

System Benefits:

• Significantly increased front and rear wheel travel for improved off-road capability
• Enhanced ride quality in both loaded and unloaded configurations
• Optimized for vehicles with bed racks, roof top tents, spare tires, and other accessories
• Superior shock damping and vehicle control on all terrain types
• Extended Travel design maximizes suspension articulation

This Stage 10 system represents ICON's most comprehensive suspension upgrade for the Toyota Tacoma, engineered specifically for serious drivers who demand maximum performance and adjustability from their vehicle.
