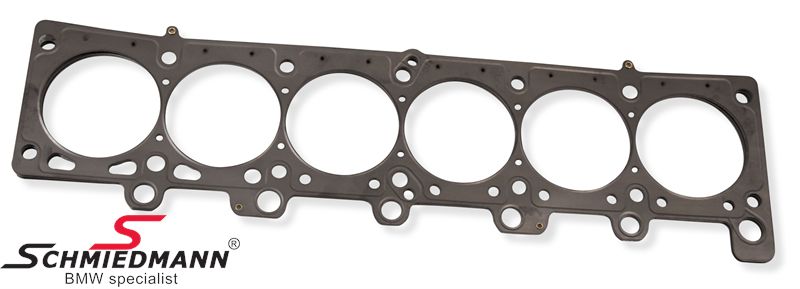

Cometic H1244SP1070S MLS Head Gasket BMW M20 86mm .070 Inch

The Cometic H1244SP1070S is a high-performance Multi-Layer Steel (MLS) head gasket engineered for BMW M20 2.5L and 2.7L engines. This precision-manufactured gasket features an 86mm bore size with a .070 inch (1.78mm) compressed thickness, making it ideal for high compression builds, turbocharged, and supercharged applications.

Key Features:

• MLS-5 construction with multiple embossed layers of stainless steel for superior strength and rebound characteristics
• Two outer layers with Viton coating for enhanced corrosion resistance and extreme cylinder pressure sealing
• Variable center layer design allows for precise thickness control to reduce compression or ensure proper piston-to-head clearance
• No re-torque required after initial installation and torque set
• Install dry—gasket comes pre-coated with sealant for optimal performance
• 86mm bore size (oversize for standard 85mm bore)
• Made in the USA with American-sourced materials

Cometic MLS head gaskets are ideal for any combination of head and cylinder materials, providing unmatched sealing performance under the most demanding conditions. Whether you're building a high-boost turbo engine or performing a standard rebuild, this gasket delivers the reliability and durability that performance engines demand.
