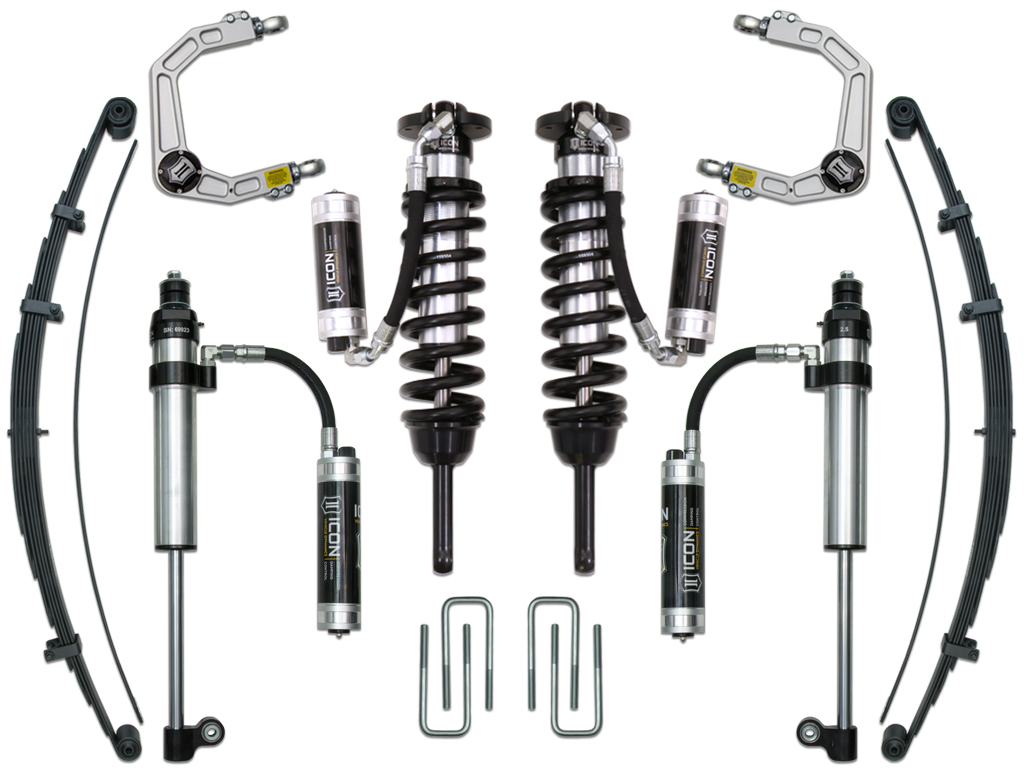

ICON Vehicle Dynamics K53009 Stage 9 Suspension System for Toyota Tacoma

The ICON Vehicle Dynamics Stage 9 Suspension System represents the ultimate suspension upgrade for 2005-2023 Toyota Tacoma owners seeking maximum performance both on and off-road. This comprehensive system dramatically increases wheel travel and damping ability, delivering outstanding vehicle control and ride quality through precision-engineered components designed specifically for the Tacoma platform.

Front Suspension Components:

• 2.5 Series Extended Travel coilovers with remote reservoirs for superior shock cooling and consistent performance under hard use
• Vehicle-specific tuned damping optimized for the Tacoma's weight and handling characteristics
• Height adjustable from 0-3.5" on 2005-2015 models or 0-2.75" on 2016-2023 models to accommodate larger wheel and tire combinations
• CDC Valves (Compression Damping Control) with 10 adjustable settings from soft to hard for tunable performance
• ICON-engineered coil springs for superior vehicle feel through the full range of travel
• Billet aluminum upper control arms with patented Delta Joint technology for corrected geometry and increased camber/caster adjustment

Rear Suspension Components:

• ICON RXT multi-rate leaf springs with optional additional leaf for 10-20% spring rate adjustment
• Unique 2.5 Aluminum Series remote reservoir shock with CDCV featuring side-mount eyelet design
• Ten-inch remote reservoir for enhanced heat dissipation and fade resistance during spirited driving
• Optimized for both unloaded driving and heavy payload configurations (bed racks, roof top tents, spare tires)

Delta Joint Technology:

ICON's patented Delta Joint combines the durability of a heavy-duty ball joint with the performance characteristics of a traditional uniball. Unlike standard uniballs that are exposed to the elements, the Delta Joint features a zinc-plated housing and tough grease seal for superior corrosion resistance. The greaseable metal-on-metal design ensures longevity and noise-free operation while providing greater angularity than typical ball joints and more durability than standard uniballs.

Key Benefits:

• Dramatically increased wheel travel and suspension articulation over stock
• Improved ride quality on-road with increased capability off-road
• Adjustable compression damping allows fine-tuning for driving style and terrain
• Corrected front-end geometry maintains proper alignment at lifted heights
• Improved suspension component clearance reduces wear and increases durability
• Remote reservoirs provide consistent damping performance under prolonged hard use

This Stage 9 system is engineered for serious drivers who demand maximum performance from their Tacoma. Whether tackling technical off-road trails or high-speed desert running, this comprehensive suspension system delivers the control, comfort, and capability that ICON Vehicle Dynamics is known for.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
