King Engine Bearings MB5315XPCSTDX XPC pMaxKote Main Bearing Set STD Extra Clearance

(Hyundai Sonata 1999-2005, Santa Fe 2001-06; Mitsubishi Lancer 2005-06, Eclipse 1995-98, 2006-12, Outlander 2004-06, 2008, Galant 2004-12 + 5 more models)

Manufacturer

Part Number

MB5315XPCSTDX
Black Friday Price

$82.27

$83.38 Save 1%

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

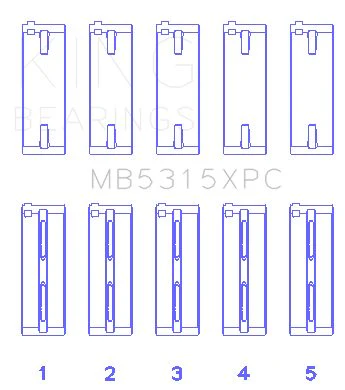

The King Engine Bearings MB5315XPCSTDX is a XPC Racing Series pMaxKote-coated crankshaft main bearing set designed for the Mitsubishi 4G63 and 4G64 engines found in Evo I–IV applications (1992 and later). This set combines King's proven XP tri-metal construction with a factory-applied nano-composite polymer coating for race-level protection in both street and competition builds.

The STDX size designation indicates an extra oil clearance specification. STDX bearing shells are 0.0005" thinner than standard size, providing approximately 0.001" (0.026mm) of additional oil clearance — ideal for high-performance and boosted engine applications where increased oil flow is desired.

XP Tri-Metal Construction:

  • Advanced tri-metal structure featuring a copper-lead intermediate layer, nickel barrier, and pMaxBlack™ Babbitt overlay over a steel backing
  • pMaxBlack™ overlay is 24% harder than conventional tri-metal race bearing overlays for superior fatigue resistance
  • Engineered for performance applications using forged steel aftermarket crankshafts under high, sustained loads

pMaxKote™ Nano-Composite Polymer Coating:

  • Factory-applied nano-composite polymer coating bonded over the pMaxBlack™ overlay during the manufacturing process
  • Contains ceramic nano-composite particles that function as a fourth protective layer to enhance wear resistance
  • Provides superior protection against oil starvation and cavitation erosion
  • Zero added wall thickness — does not alter the bearing's precision oil clearance specifications

King XP Geometric Features:

  • "Bull's Eye" wall thickness tolerance of ±0.0001" — tighter than industry standard
  • Enlarged, chamfered oil holes for improved crankshaft lubrication
  • Narrowed bearing width designed for large-radius crankshafts
  • Medium eccentricity for optimized load distribution and oiling

A standard undersize (STD) crankshaft is required. King's XPC Series bearings are a top choice for Mitsubishi 4G63/4G64 engine builds targeting high-boost, high-RPM performance.

Products specifications

Fits

Hyundai Sonata 1999-2005, Santa Fe 2001-06; Mitsubishi Lancer 2005-06, Eclipse 1995-98, 2006-12, Outlander 2004-06, 2008, Galant 2004-12, Grandis 2007-09; Chrysler Sebring 2001-05; Dodge Stratus 2001-05, H100 2003; Eagle Talon 1998

Material

pMax Black (racing line)

Undersize

STDX

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Application

Race
