Wiseco RE823M07700 Racer Elite Piston Kit CR - 4-Stroke 77mm 14.5 1

The Wiseco RE823M07700 Racer Elite 4-Stroke Piston Kit is engineered for the serious dirt bike racer demanding factory-level performance from an off-the-shelf piston. Featuring a standard 77.00mm bore and a high-compression 14.5:1 ratio, this piston kit delivers dyno-proven power gains for competitive riding and racing applications. The kit includes the piston, high-quality rings, wrist pin, and circlips — everything needed for a complete piston replacement.

Racer Elite Design Features:

• 100% Billet Machined: Fully machined from billet for precise dimensions, optimized weight, and a precision-machined under-crown structure
• Asymmetric Skirt Design: Industry-first asymmetrical skirt minimizes cylinder wall contact, reduces friction, and lowers overall piston weight
• ArmorGlide® Skirt Coating: Proprietary skirt coating reduces friction for improved performance and extended service life
• DLC Coated Wrist Pin: Diamond-Like Carbon (DLC) coating on the piston pin delivers Formula 1-inspired friction reduction and wear resistance
• Enhanced Pin Oiling: Optimized oil passages improve wrist pin lubrication under high-load racing conditions
• Precision-Fit Lapped Ring & Ring Groove: Custom-lapped compression ring matched to a precision-machined ring groove maximizes ring seal for improved power output
• Pressure Seal Groove: Reduces ring lifting and minimizes power loss under high-RPM operation
• High-Compression Dome Design: 14.5:1 compression ratio optimized for maximum torque and throttle response

Kit Specifications:

• Bore: 77.00mm (Standard)
• Compression Ratio: 14.5:1
• Skirt Coating: ArmorGlide®
• Pin Coating: DLC (Diamond-Like Carbon)
• Skirt Profile: Asymmetric

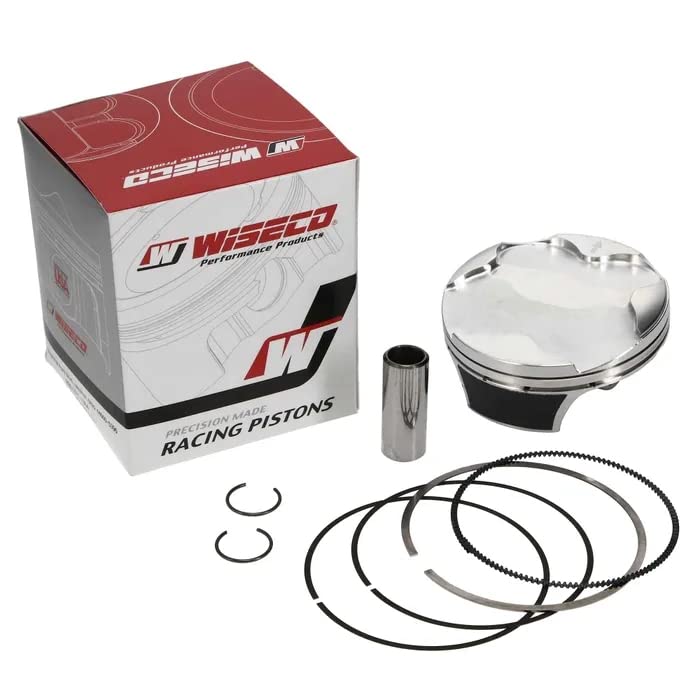

• Contents: Piston, rings, wrist pin, and circlips

Engineered, tested, and proven for high-level racing applications, the Wiseco Racer Elite line sets a new standard in powersports piston performance. Manufactured in Mentor, OH, USA.
