Product Details

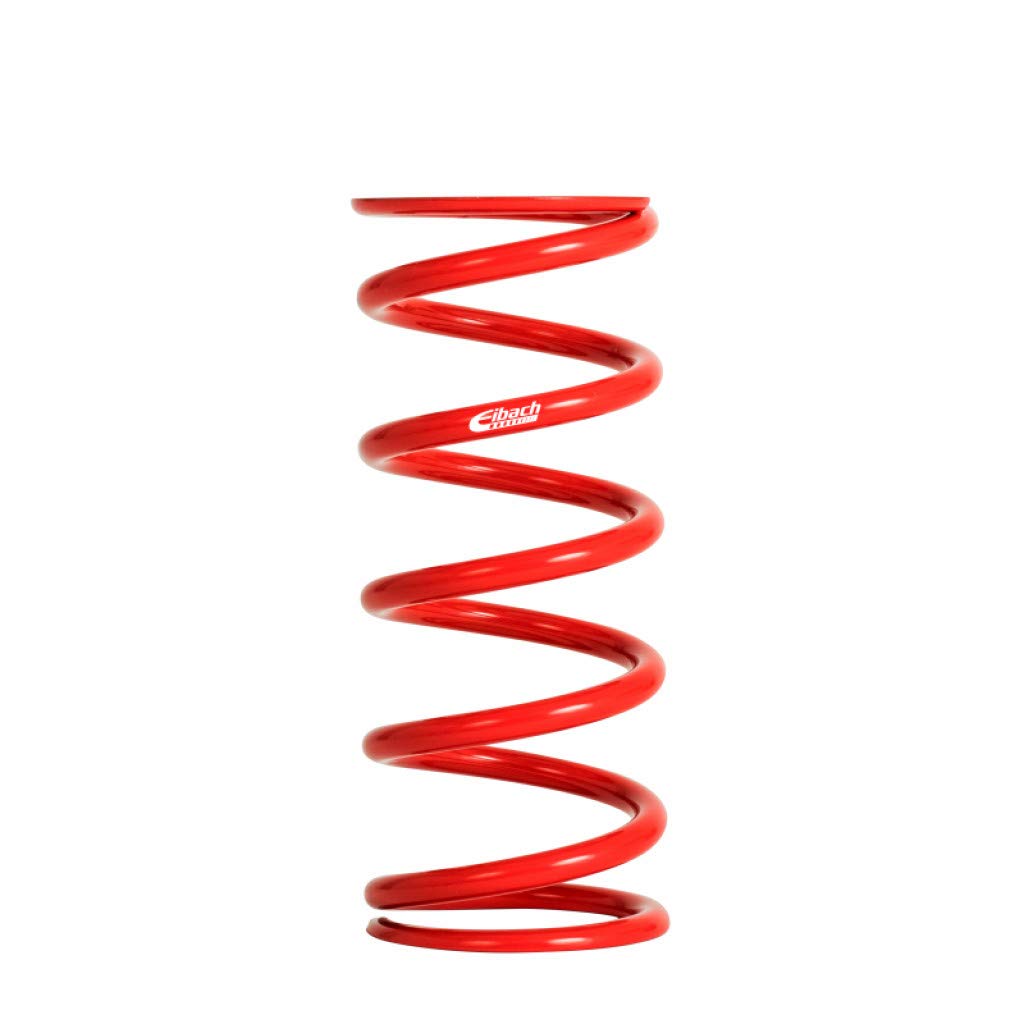

The Eibach 1300.500.0450 is a high-performance conventional rear coil spring designed for precise suspension tuning in racing and performance applications. This spring is part of Eibach's renowned ERS (Eibach Race Spring) system, engineered to deliver the perfect balance between comfort and control by transforming engine power into optimal track adhesion.

ERS Double Spring System:

Eibach's ERS system utilizes a sophisticated Main and Tender spring concept that provides a softer initial rate when both springs compress together, then transitions to a firmer ending rate once the tender spring fully closes. With over 700 different spring components available, the ERS system offers virtually unlimited combination possibilities to achieve your exact suspension setup. The Main spring features a linear-rate characteristic and determines the final system rate, while Tender springs are available in both linear-rate and progressive-rate options to set the initial rate.

Key Features:

  • High spring travel and deflection for maximum end loads at compact mounting lengths
  • Superior block resistance for bottoming protection
  • Shot-peened surface treatment for enhanced fatigue resistance
  • Exceptional dynamic durability ensuring long component life
  • Manufactured to precise tolerances for consistent performance
  • Advanced corrosion protection through phosphating and epoxy coating
  • Clearly imprinted with part number, spring rate, and physical dimensions for easy identification
  • Individual protective packaging to prevent damage

Note: Helper springs are available separately to prevent spring looseness at full droop, covering up to 50mm of spring-to-perch gap. Connecting plates (inside and outside diameter options) are also available for Main and Tender spring combinations.

Products specifications

Block Height

4.65in

Bushings Included

No

Coil Spring Diameter (in)

5.000 in.

Coil Spring Height (in)

13.000 in.

For Street Use

No

Front Leaf Spring Bushings Included

No

ID

5.00in

Length

13.00in

Load @ Block Height

3,757lbs

Notes

Block height: 4.650 inch, load at block height: 3,759 pounds, and travel is 8.350 inch.

Progressive Rate Spring

No

Quantity

Sold individually.

Rate

450lbs/in

Spring Finish

Red powdercoated

Spring Position

Rear

Spring Rate (lbs/in)

450 lbs./in.

Spring Style

Coil

Spring Type

Coil

Travel

8.35in

(WSM) Web Category Description

EIBACH CONVENTIONAL REAR SPRING

(WSM) Category Display Order

492

(WSM) Clean Prod Desc

Conventional-Rear-Spring

Prop 65

Yes
