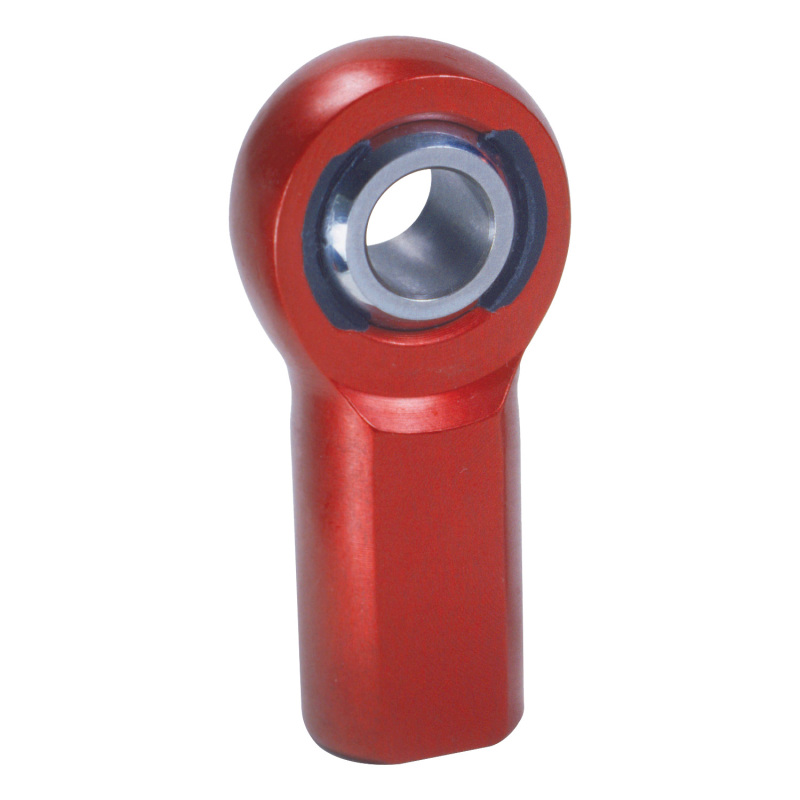

QA1 AFL5 A Series Endura Female Rod End 5/16-24 Left Hand Thread Red Aluminum

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AFL5
5 reviews
Sale Price

$8.92

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AFL5 is an A Series Endura aluminum rod end featuring a female left-hand 5/16-24 thread and a 5/16 in. (0.3125 in.) bore. Engineered for performance builds where reducing weight without sacrificing strength is a priority, this rod end is a popular choice for circle track, sprint car radius rods, drag racing, and street performance suspension applications.

The AFL5 uses QA1's proprietary loader slot (two-piece) body design, which delivers over 10% weight savings compared to traditional three-piece aluminum rod ends while maintaining maximum strength. The body is machined from 7075 aircraft aluminum and finished with a distinctive red anodized coating. The bearing ball is made from heat-treated, hard chrome plated 52100 bearing steel for precision and durability.

Key Features:

  • Thread: 5/16-24 UNF left-hand female thread
  • Bore: 0.3125 in. (5/16 in.)
  • Ultimate Radial Static Load: 2,284 lbs
  • Misalignment Angle: 14 degrees
  • Body Material: 7075 aircraft aluminum, red anodized finish
  • Ball Material: 52100 bearing steel, heat treated, hard chrome plated, precision ground
  • Race: Nylon/PTFE injection molded — self-lubricating and self-sealing
  • Metal-to-metal support provides stability under heavy shock loads
  • Increased cross-sectional thickness for greater tensile strength
  • Self-sealing liner keeps dirt and debris out, extending service life
  • Over 10% lighter than traditional three-piece aluminum rod ends

The AFL5 is also available in a right-hand thread version (AFR5) and with stud configurations. Sold individually.

Products specifications

A (+/-0.015)

1.375

Approx Bearing Weight

0.06

B (+0.0015/-0.0005)

0.3125

Ball Dia Ref

0.625

C (+0.062/-0.031)

0.75

D (+/-0.010)

0.875

E (+/-0.010

0.5

F (+/-0.010)

0.437

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

14

Notes

Only the rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.375 in.

Rod End Construction

2-piece

Rod End Finish

Red anodized

Rod End Head Bore Size

0.313 in.

Rod End Head Diameter

0.875 in.

Rod End Head Width

0.437 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

14 degrees

Rod End Static Load Capacity

2,780 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

5/16-24 LH in.

T (+/-0.005)

0.343

Thread Length

0.750 in.

Thread Type

Left Hand

Thread UNF-2B

5/16 -24

UTL Radical Static

2780

W (+/-0.005)

0.437
