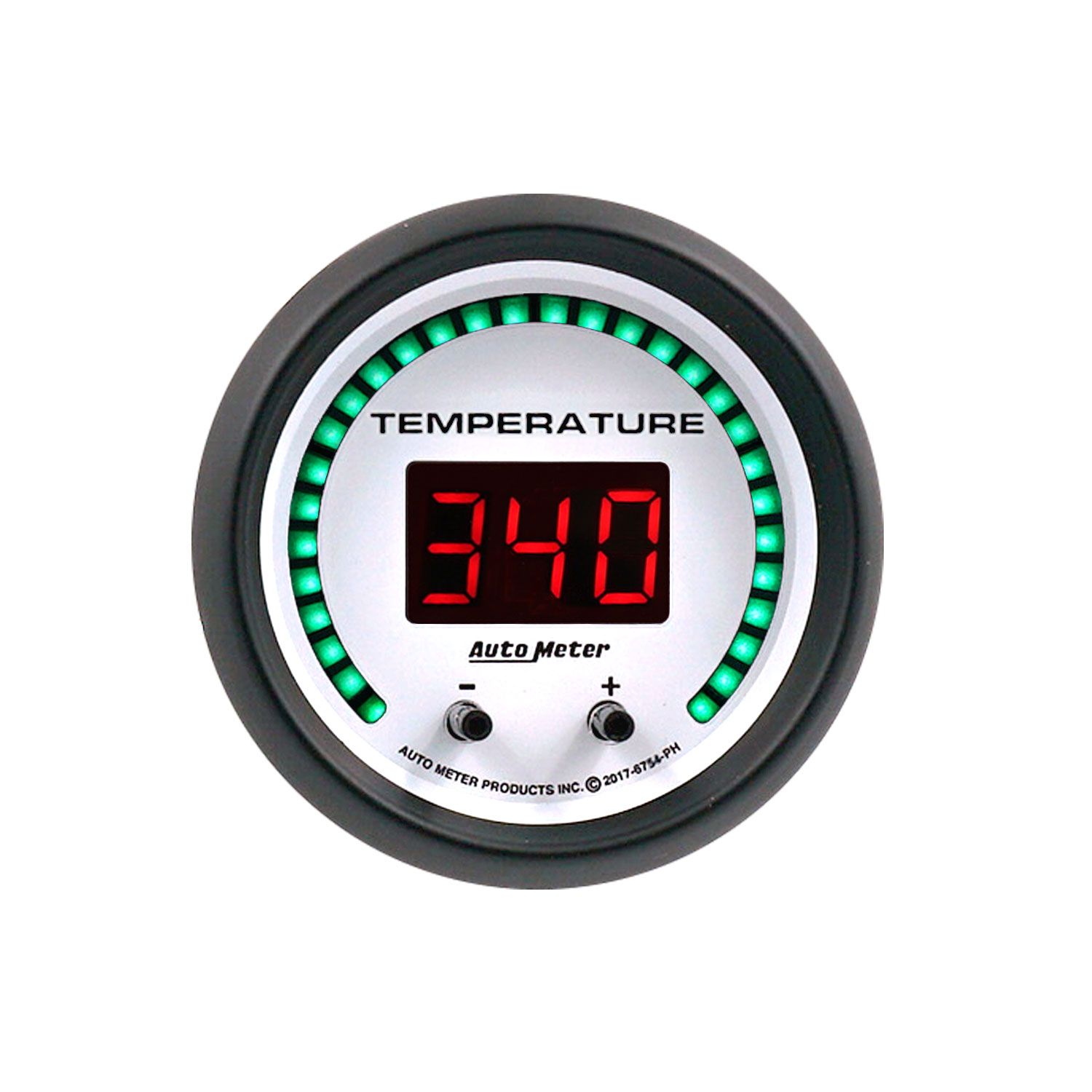

AutoMeter 6754-PH 2-1/16" Dual Channel Digital Fluid Temperature Gauge Phantom Elite

The AutoMeter Phantom Elite Digital Dual Channel Fluid Temperature Gauge delivers maximum data visibility in minimal space. This innovative 2-1/16" gauge monitors two independent temperature inputs simultaneously, making it ideal for tracking fluid temperatures before and after coolers, comparing oil and coolant temps, or monitoring transmission fluid at multiple points.

Key Features:

• Dual channel monitoring with three display modes: individual channel view, combination view (radial + digital), or differential temperature reading
• Bright LED seven-segment display with 30 radial LED indicators for exceptional visibility
• E-Z View Digital LED Display System minimizes distracting high-speed digit changes
• Programmable temperature range: 60-340°F (40-170°C) with 1-degree resolution
• User-selectable Fahrenheit or Celsius display units
• Independent programmable alarms for each channel with visual flash alerts
• Pro-Control outputs trigger external devices like fans, pumps, lights, or buzzers based on temperature thresholds
• Peak temperature recall function for each channel
• 0-5V analog output per channel for datalogging or ECU integration
• Data acquisition-grade solid-state temperature sender included for unmatched accuracy
• Compatible with 12V and 16V electrical systems

Specifications:

• Size: 2-1/16" diameter with black Super Bezel design
• Display: Red LED lighting with white dial and flat clear lens
• Included: 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and installation instructions
• Note: Additional sensor required for second channel (sold separately)

The Phantom Elite series coordinates seamlessly with AutoMeter's popular Phantom gauge family, providing professional-grade instrumentation for street and racing applications.
