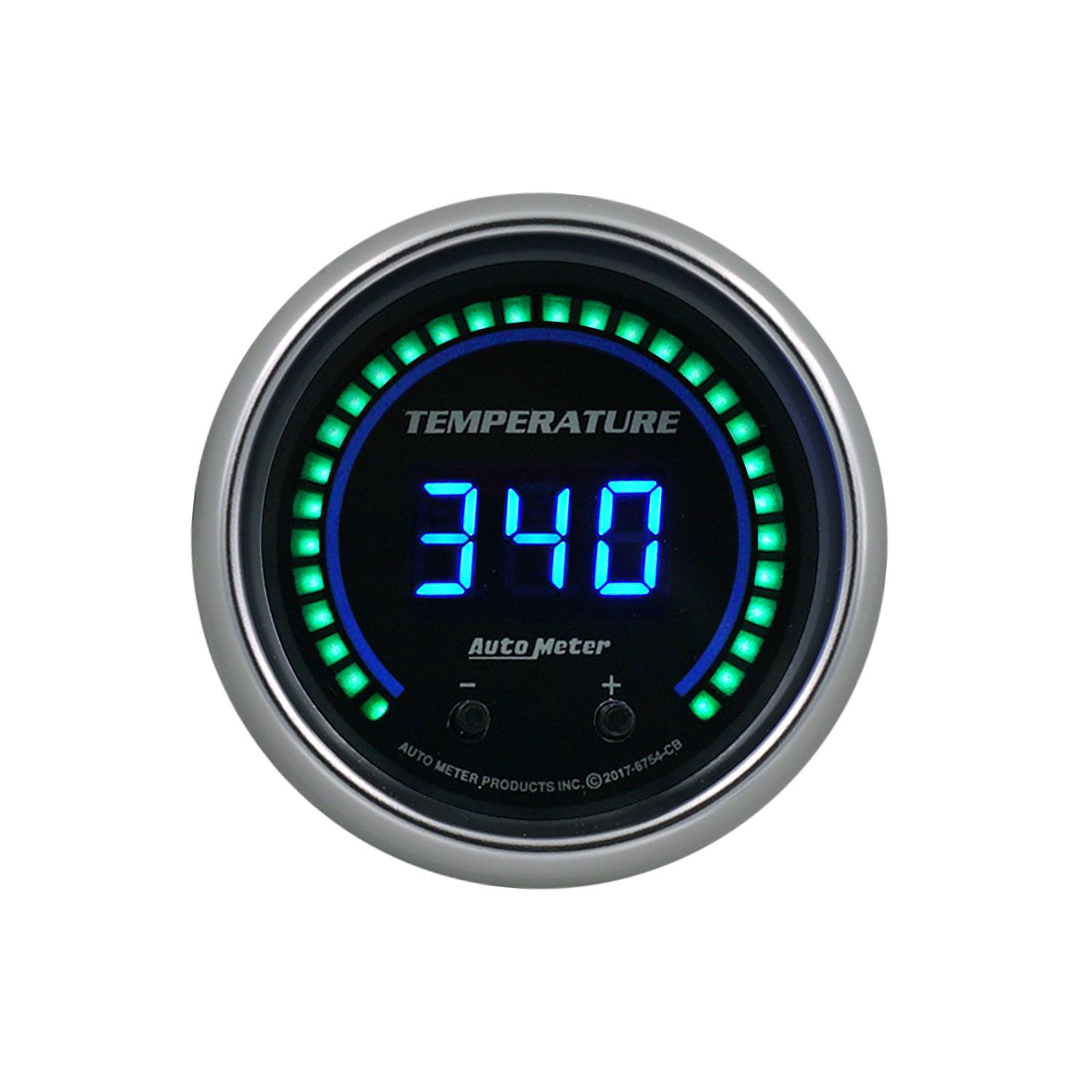

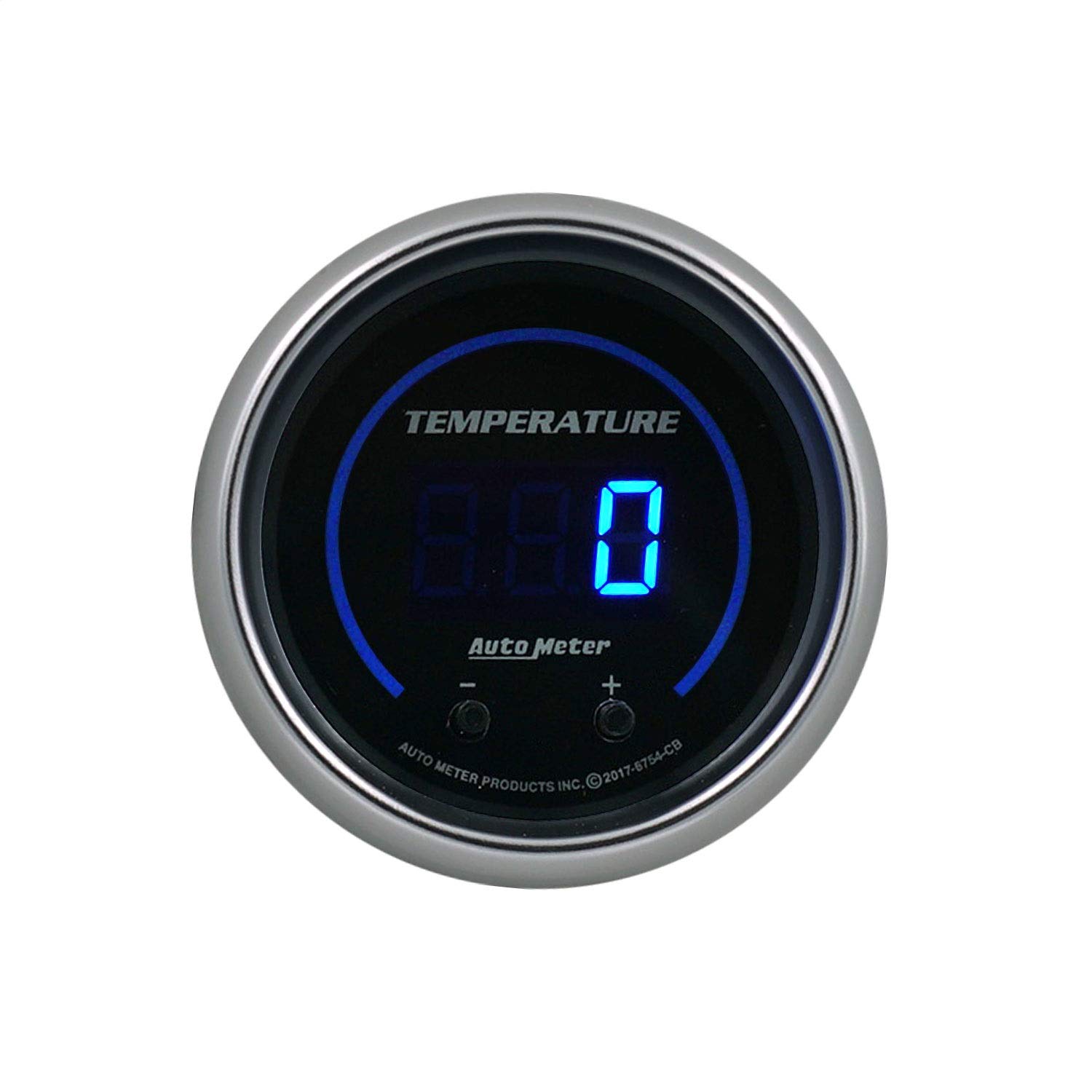

AutoMeter 6754-CB 2-1/16" Dual Channel Fluid Temperature Gauge Cobalt Elite Digital

The AutoMeter Elite Digital 6754-CB dual-channel fluid temperature gauge maximizes dashboard real estate by displaying two independent temperature readings within a single 2-1/16" instrument. This innovative gauge is ideal for monitoring critical fluids before and after coolers, or comparing temperatures across different systems such as oil, coolant, and transmission fluid.

Advanced Display Technology:

Featuring a bright blue LED seven-segment display with 30 radial LED indicators, this digital gauge offers multiple viewing modes to suit your preference. Toggle between individual channel displays, combined views with Channel 1 on the radial band and Channel 2 as a digital readout, or differential mode to see the temperature difference between both channels. The E-Z View Digital LED Display System ensures maximum readability while minimizing distracting high-speed digit changes.

Key Features:

• Dual-channel monitoring with programmable range of 60-340°F (40-170°C) and 1-degree resolution
• User-selectable Fahrenheit or Celsius units
• Custom programmable alarms for each channel with visual flashing alerts
• Pro-Control outputs to trigger external devices like lights, buzzers, fans, or pumps based on temperature thresholds
• High peak temperature recall function for each channel
• 0-5V analog voltage output per channel for datalogger or ECU integration
• 12 and 16 volt compatible for universal vehicle application
• Data acquisition-grade solid-state temperature sender included for exceptional accuracy and durability

Specifications:

• Size: 2-1/16" diameter with 2-1/4" outer bezel
• Bezel: Bright anodized Cobalt Super Bezel
• Lens: Flat, clear
• Lighting: Blue digital LED
• Dial: Black background

What's Included:

Complete gauge kit includes one 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed installation instructions. Additional sensor for second channel monitoring sold separately.
