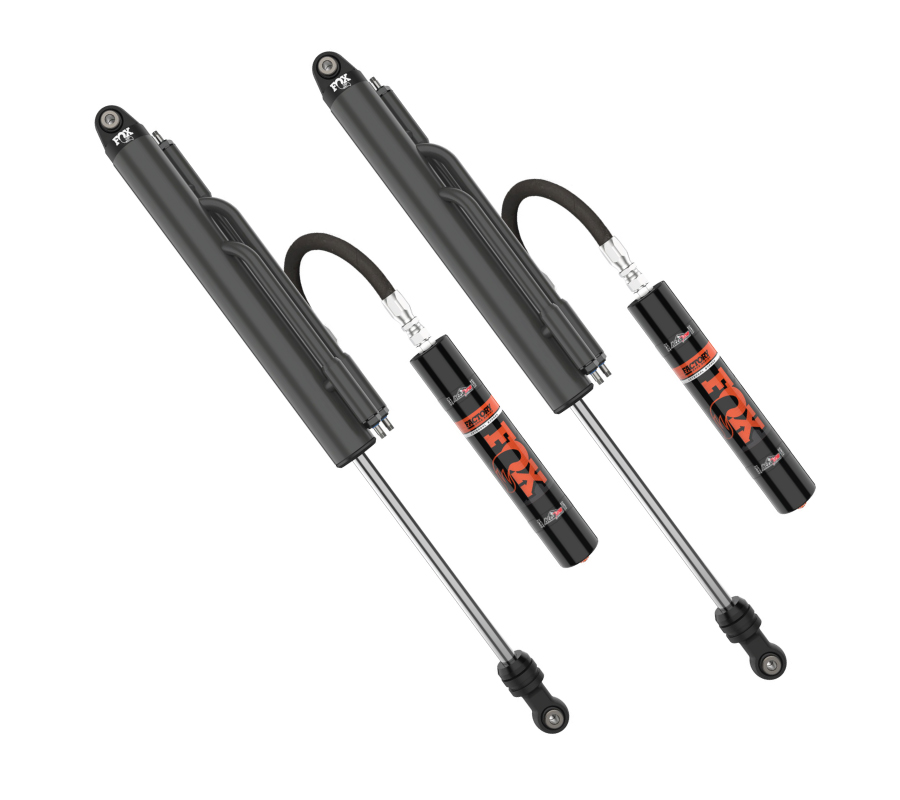

Fox Racing Shocks 980-02-117-1 2.5 Bypass Shock 18 Inch Travel Remote Reservoir

The Fox Racing Shocks 980-02-117-1 is a high-performance 2.5-inch Factory Series bypass shock with 18 inches of travel, designed for extreme off-road racing applications. This remote reservoir shock features a 3-tube external bypass design that delivers position-sensitive damping control, allowing independent adjustment of compression and rebound at different stages of the shock stroke for unmatched performance and tunability.

Key Features:

• 2.5-inch body diameter with 18.0 inches of travel for extreme suspension articulation
• 3-tube external bypass configuration with 2 compression adjusters and 1 rebound adjuster
• Industry-leading 17-4 H900 stainless steel shaft (7/8 inch diameter) for exceptional durability and twice the strength of standard carbon steel shafts
• Durable zinc-plated seamless alloy body construction for long-lasting corrosion resistance
• Black anodized CNC-machined 6061-T6 billet aluminum components
• Remote reservoir design with hose routing for flexible mounting options
• ORB O-ring port fittings deliver superior seal integrity
• High-temperature Viton seals with redundant sealing pack system for extreme durability
• Custom valving optimized for specific applications

Fox bypass shocks provide three critical advantages: externally adjustable tuning without disassembly, elimination of cavitation on compression, and progressive damping curves that reduce harshness over bumps while maintaining high-speed control. The position-sensitive external bypass design allows each stage of compression and rebound to be independently adjusted, delivering race-winning performance that has dominated off-road racing for over 30 years.
