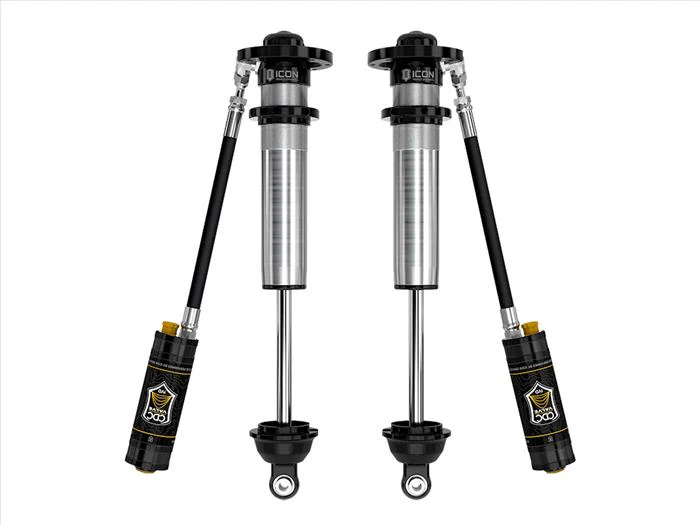

ICON Vehicle Dynamics 59750C-CB 2.5 VS Remote Reservoir CDCV Long Travel Coilover Kit, No Coils

(2007-2021 Toyota Tundra; 2017-2023 Subaru Impreza; 1993-2002 Pontiac Firebird Base/Formula)

Manufacturer

Part Number

59750C-CB
Black Friday Price

$1,784.40

$2,099.29 Save 15%

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 59750C-CB is a 2.5 VS Series remote reservoir front coilover kit with CDCV (Compression Damping Control Valve), purpose-built for the 2007–2021 Toyota Tundra equipped with a Camburg Engineering long travel front suspension system. This kit is engineered to maximize front wheel travel and deliver precise vehicle control both on and off-road.

Coil springs are not included with this kit, as spring rate requirements vary based on individual truck build weight, configuration, and intended use. This allows the builder to select the appropriate spring rate for their specific application.

Key Features:

  • 2.5" shock body with increased piston area over stock for superior damping ability and outstanding ride characteristics across all terrain types
  • Remote reservoir increases shock oil volume and heat dissipation, maintaining consistent damping performance during extended or aggressive off-road use
  • ICON CDC Valve (CDCV) provides external ride tuning with 10 compression damping adjustment settings from soft to firm — no tools required
  • Vehicle-specific (VS) valving — internally calibrated per application based on motion ratio, shaft diameter, and vehicle weight for optimal performance
  • Long travel length designed specifically for use with the Camburg Engineering long travel front suspension kit
  • FK Rod End bearings for extended service life and minimal deflection under load
  • Fully serviceable design allows for revalves, rebuilds, and virtually unlimited service life
  • 100% bolt-on installation — no cutting or welding required
  • Compatible with ICON rear 2.0 Aluminum Series or 2.5 Series shocks for balanced front-to-rear vehicle control

California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Warranty: 1 Year

Products specifications

Fits

2007-2021 Toyota Tundra; 2017-2023 Subaru Impreza; 1993-2002 Pontiac Firebird Base/Formula

Body Diameter

2.5

Grade Type

Performance

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Coil Over Springs Included

NO

Adjustable Height

yes

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point

Center of Eylet

Adjustable Damping

Yes

Shaft Diameter

7/8

Upper Mount Type

Mounting Plate

Shaft Diameter

0.875

Material

Aluminum

Remote Reservoir

Yes

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Material

Steel

Service Parts

257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL

Gas Charged

Yes

Lower Mount Type

Eyelet

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Dust Shield

No

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Damping Type

Oil

Service Parts

611019 - COILOVER HARDWARE KIT PAIR

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Boot Included

No

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT
