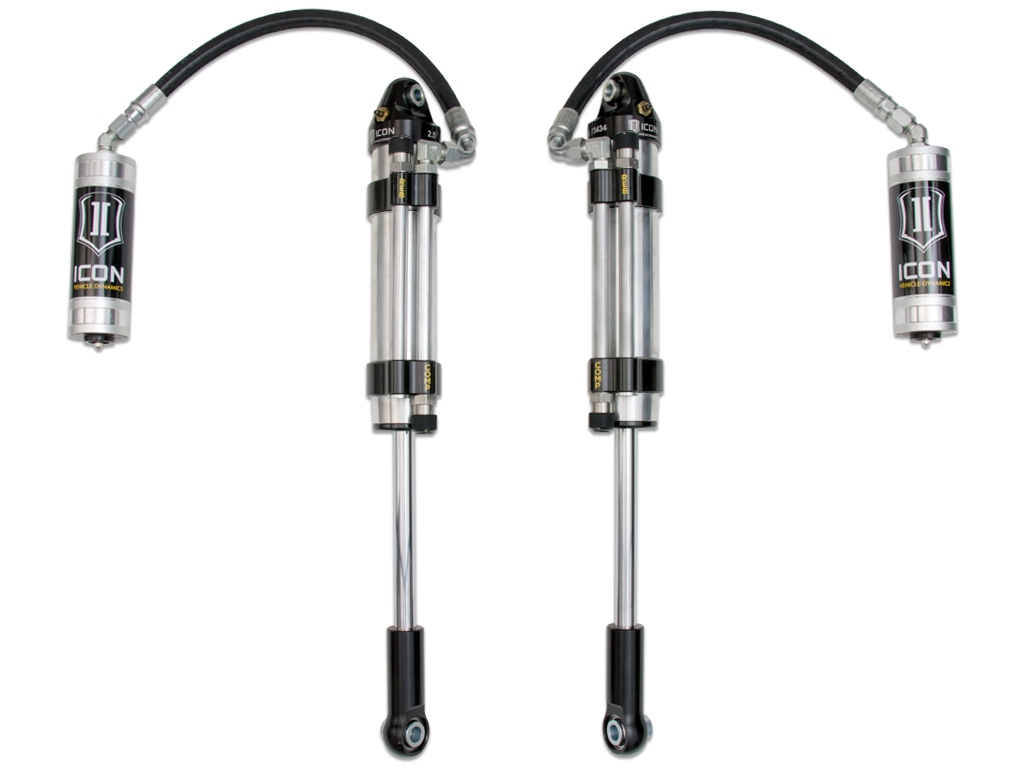

ICON Vehicle Dynamics 59922P 2.5 Omega Bypass Rear Secondary Shocks Pair Toyota Tundra

(2007-2021 Toyota Tundra; 2017-2023 Subaru Impreza; 1992-1994 Pontiac Grand Am SE; 1992-1995 Pontiac Grand Am GT)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

59922P
9 reviews
Sale Price

$2,278.05

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 59922P Omega Series Bypass shocks deliver exceptional off-road performance and smooth on-road handling for 2007-2021 Toyota Tundra trucks. These rear secondary shocks are engineered with advanced bypass valve technology that allows precise tuning of compression and rebound damping to match your driving style and terrain.

Key Features:

  • Hand-adjustable bypass valves with 28 detented settings at quarter-turn increments for precise suspension tuning without tools
  • 2.5-inch diameter shock body with remote reservoir design for superior heat dissipation and reduced fade during prolonged use
  • 6061 billet aluminum manifold creates an internal "Bump Zone" that significantly increases damping force at high compression velocities to prevent harsh bottom-outs
  • Replaceable bypass tubes for serviceability in the event of damage
  • Premium grade 5WT shock oil ensures consistent damping performance across a wide temperature range
  • 100% rebuildable and revalveable construction for long-term durability and customization

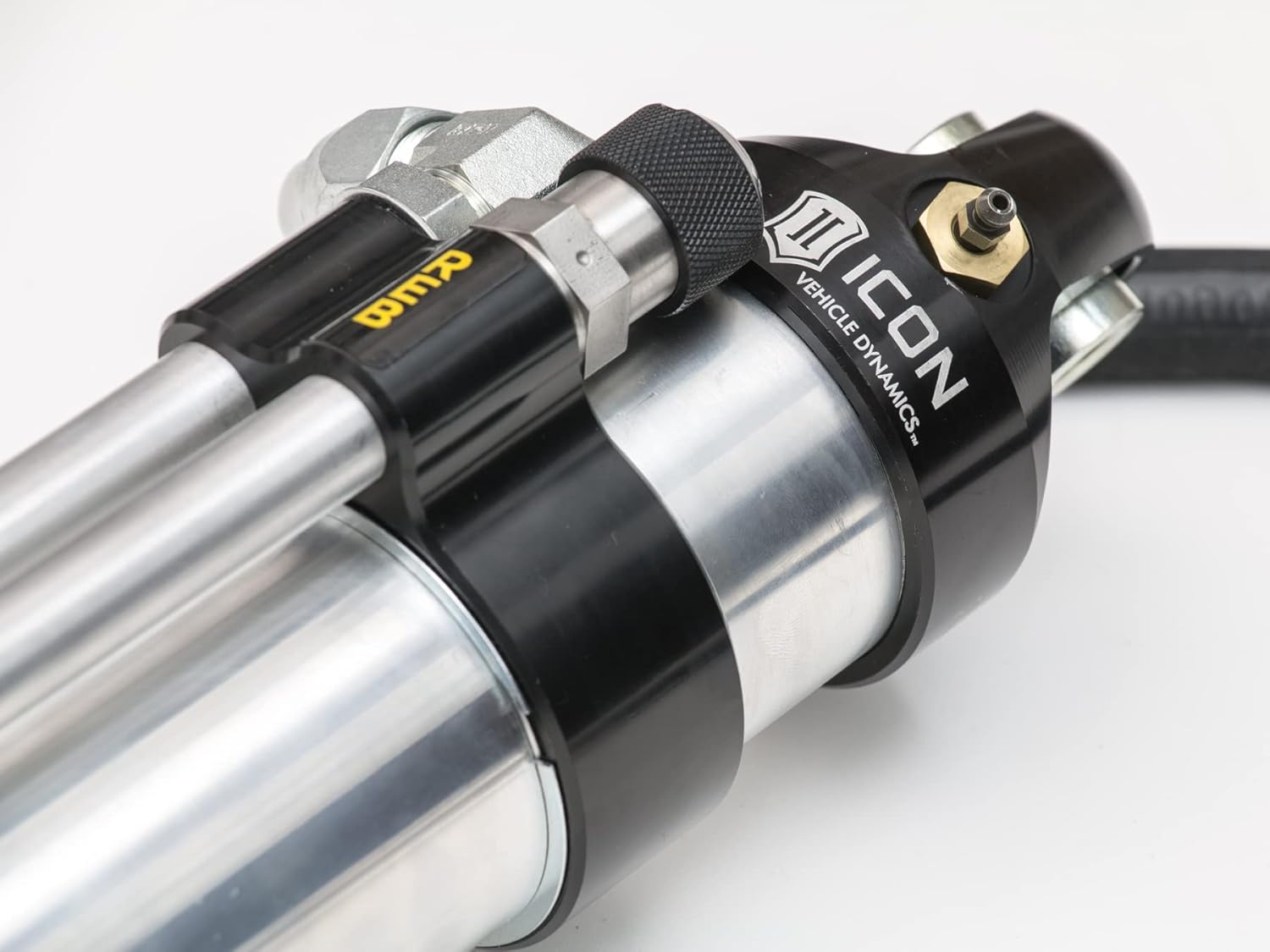

The ICON Bypass Valve restricts oil flow through the bypass tube with high resolution across the entire adjustment range, giving you complete control over ride characteristics. Whether you're tackling aggressive off-road trails or cruising on the highway, these shocks can be dialed in to deliver optimal performance. Sold as a pair for rear axle installation.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Warranty: 1 Year

Products specifications

Fits

2007-2021 Toyota Tundra; 2017-2023 Subaru Impreza; 1992-1994 Pontiac Grand Am SE; 1992-1995 Pontiac Grand Am GT

Tube Outside Diameter

2.5

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

External Reservoir

Yes

Shock Absorber Rod End Measuring Point

CENTER OF EYELET

Bore Diameter

2.25

Shock Absorber Body End Measuring Point

CENTER OF EYELET

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Mounting Hardware Included

Yes

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Gas Charged

Yes

Lower Mount Type

Eyelet

Service Parts

257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Boot Included

No

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

Upper Mount Type

Eyelet

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Adjustable

Yes

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT
