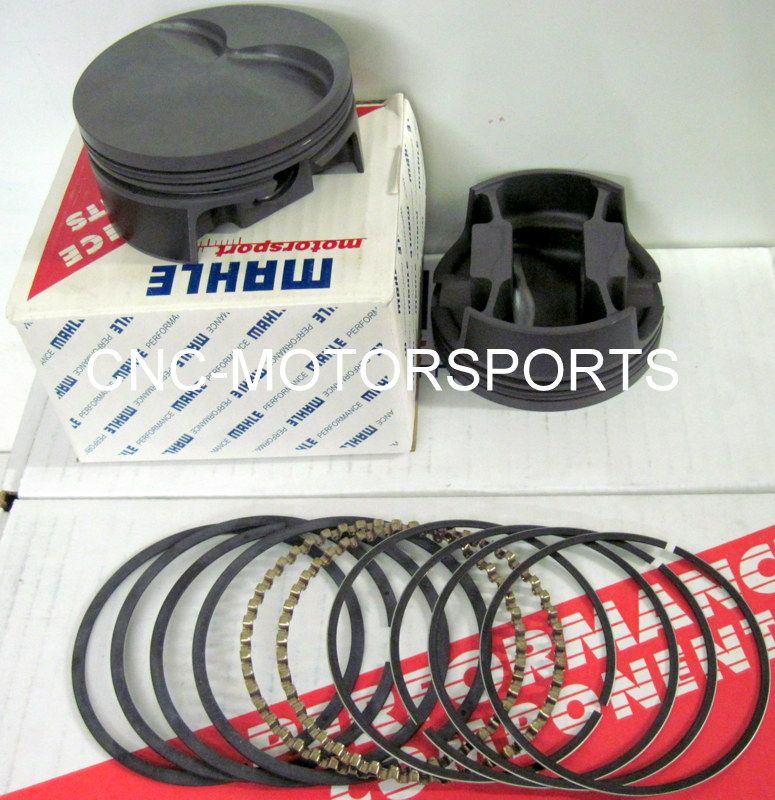

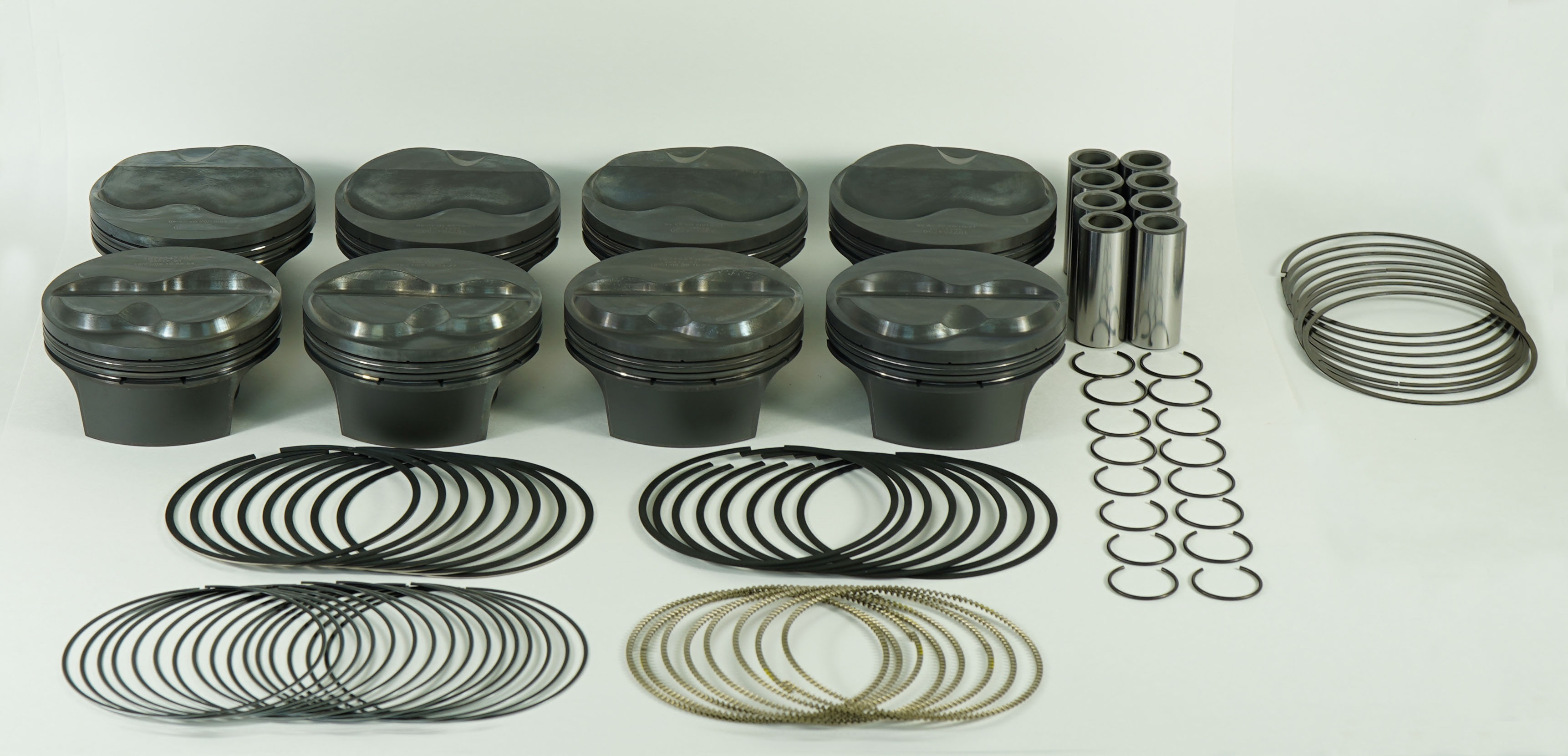

MAHLE 197754765 SBC 422ci PowerPak Plus Forged Piston Kit 4.165 Bore 9cc Dome 2618 Alloy

Manufacturer

Part Number

197754765
Black Friday Price

$954.87

$996.54 Save 4%

In Stock (7)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 197754765 is a Small Block Chevy (SBC) PowerPak Plus forged piston and ring kit designed for high-displacement racing builds targeting 422 cubic inches. Featuring a 4.165" bore, 9cc dome volume, and gasported asymmetrical valve pockets, this kit is engineered for serious circle track, dirt track, and drag racing applications where maximum cylinder pressure and thermal durability are essential.

Forged from 2618 aluminum alloy, these pistons deliver superior detonation resistance and strength under extreme heat and load conditions — ideal for forced induction, nitrous, and high-compression naturally aspirated builds. The asymmetrical valve pocket design optimizes flow efficiency with 22°/23° cylinder heads, while the gasported crown helps seat rings quickly for consistent compression across all eight cylinders.

Key Specifications:

  • Displacement: 422 ci
  • Bore: 4.165"
  • Stroke: 3.625" / 3.875" (dual stroke compatible)
  • Rod Length: 6.125" / 6.000" (dual rod compatible)
  • Compression Height: 1.062"
  • Wrist Pin Diameter: 0.927"
  • Dome Volume: 9cc
  • Compression Ratio: 13.6:1 / 14.5:1 (depending on stroke/rod configuration)
  • Alloy: 2618 aluminum
  • Advertised Weight: 456 grams per piston
  • Crown Style: Dome — Gasported / Asymmetrical Valve Pockets
  • Performance ring set (1mm, 1mm, 2mm)
  • Lightweight steel wrist pins
  • Round wire pin locks

Performance Coatings:

  • Grafal anti-friction skirt coating reduces piston-to-wall friction for improved longevity and power
  • Phosphate dry lubricant coating on pin bores and ring grooves protects against micro-welding and galling during initial startup and break-in

Each piston is hand-deburred and precision machined to exacting tolerances. The dual stroke and dual rod length compatibility gives engine builders flexibility across multiple SBC big-bore platform combinations, making the 197754765 a versatile choice for both dedicated race engines and high-performance street builds.

Products specifications

Pin Style

Floating

Pins Included

Yes

Lateral Gas Ports

Yes

Clips Included

Yes

Piston Kit Quantity

Sold as a set of 8

Piston Style

Dome, With 2 valve reliefs

Coatings

Phosphate plus Grafal

Piston Material

Forged, 2618

Piston Mass

456g

Crown Vol

9.0cc

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Clip Style

Round Wire

Rings Included

Yes

Pin Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
