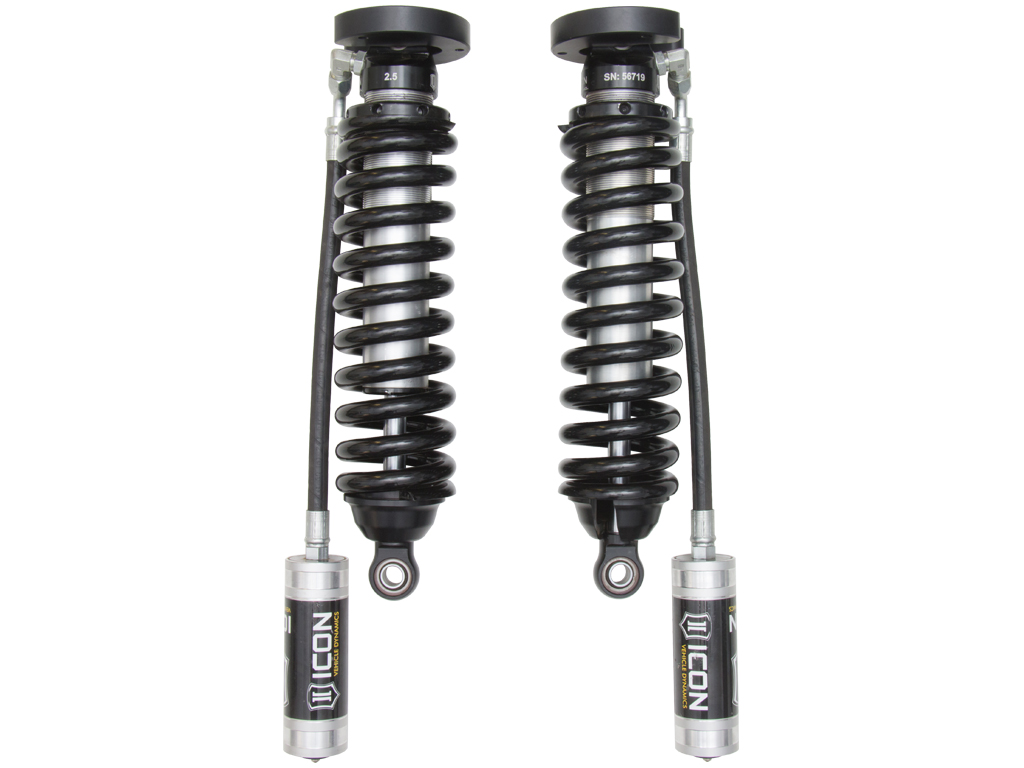

ICON Vehicle Dynamics 81521 2.5 VS Remote Reservoir Front Coilover Kit for 2016-2023 Nissan Titan XD

(2001-2003 Toyota Highlander Base/Limited; 2016-2021 Nissan Titan XD; 2003 Volvo XC70 X/C; 2004-2007 Volvo XC70 Base; 2006 Volvo XC70 Ocean Race)

Manufacturer

Part Number

81521
Black Friday Price

$1,854.68

$2,181.98 Save 15%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 2.5 VS Series Remote Reservoir Coilover Kit transforms the front suspension of your 2016-2023 Nissan Titan XD with race-proven technology and adjustability. These height-adjustable coilovers deliver approximately 32% increased front wheel travel over stock while offering 2.5-3 inches of lift height adjustment to accommodate larger, more aggressive wheel and tire combinations.

Key Features:

  • Vehicle-specific tuned 2.5-inch shock body with remote reservoir for superior damping control
  • Height-adjustable design allows 2.5-3 inches of front lift customization
  • Remote reservoirs increase oil volume and heat dissipation to prevent fade during hard use
  • ICON engineered coil springs designed specifically for the Titan XD
  • 6061 aircraft-grade aluminum CNC machined components for strength and durability
  • Increased piston area delivers maximum wheel travel and ride quality improvement

The larger 2.5-inch shock body and increased piston area provide exceptional ride quality and suspension performance both on and off-road. Remote reservoirs dramatically increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation that can cause damper fade under extreme conditions. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers, these front coilovers create balanced vehicle control front to rear for the ultimate driving experience.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2001-2003 Toyota Highlander Base/Limited; 2016-2021 Nissan Titan XD; 2003 Volvo XC70 X/C; 2004-2007 Volvo XC70 Base; 2006 Volvo XC70 Ocean Race

Body Diameter

2,5

Grade Type

Performance

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Coil Over Springs Included

Yes

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point

Center of Eylet

Adjustable Damping

NO

Shaft Diameter

7/8

Upper Mount Type

MOUNT PLATE

Gas Charged

Yes

OEM Wheels & Tires Fitment

Yes

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Damping Type

Oil

Lower Mount Type

Eyelet

Service Parts

191016 - 7.5" FINNED RESI UPGRADE KIT

Remote Reservoir

Yes

Material

Steel

Spring Material

Steel

Adjustable Height

yes

Boot Included

No

Adjustable

No

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Dust Shield

No

Recommended Aftermarket Tires

33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Service Parts

257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL

Shaft Diameter

0.875

Service Parts

252001 - 2.5 FIXED SPANNER WRENCH

Service Parts

611019 - COILOVER HARDWARE KIT PAIR

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
