MAHLE 197754735 Forged Piston Set Small Block Chevy 389ci 4.135in Bore

Manufacturer

Part Number

197754735
Black Friday Price

$955.59

$996.54 Save 4%

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 197754735 PowerPak Plus forged piston and ring set is engineered for high-performance Small Block Chevy 389 cubic inch builds with a 4.135-inch bore. This complete drop-in piston assembly features forged 2618 aluminum construction for exceptional strength and durability in demanding applications.

Key Specifications:

  • Bore: 4.135 inches
  • Stroke compatibility: 3.625 or 3.75 inches
  • Rod length: 6.125 or 6.000 inches
  • Pin diameter: 0.927 inch (23.55mm heavy-duty floating pin)
  • Dome volume: +9.0cc for 13.5:1 compression ratio
  • Piston weight: 445 grams
  • Ring grooves: 1.0mm x 1.0mm x 2.0mm

Features:

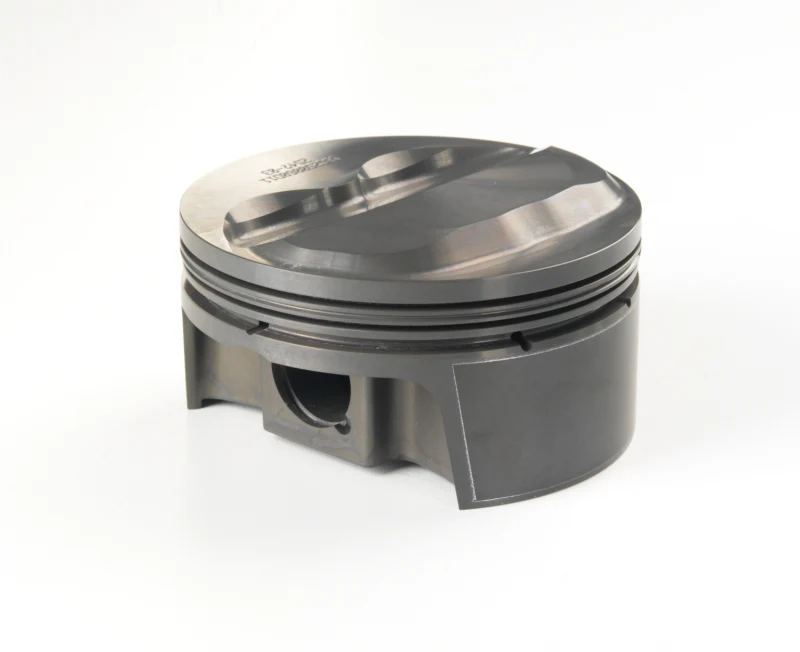

  • 23-degree dome with gas-ported design and asymmetrical valve pockets
  • Anti-friction skirt coating for reduced drag and friction

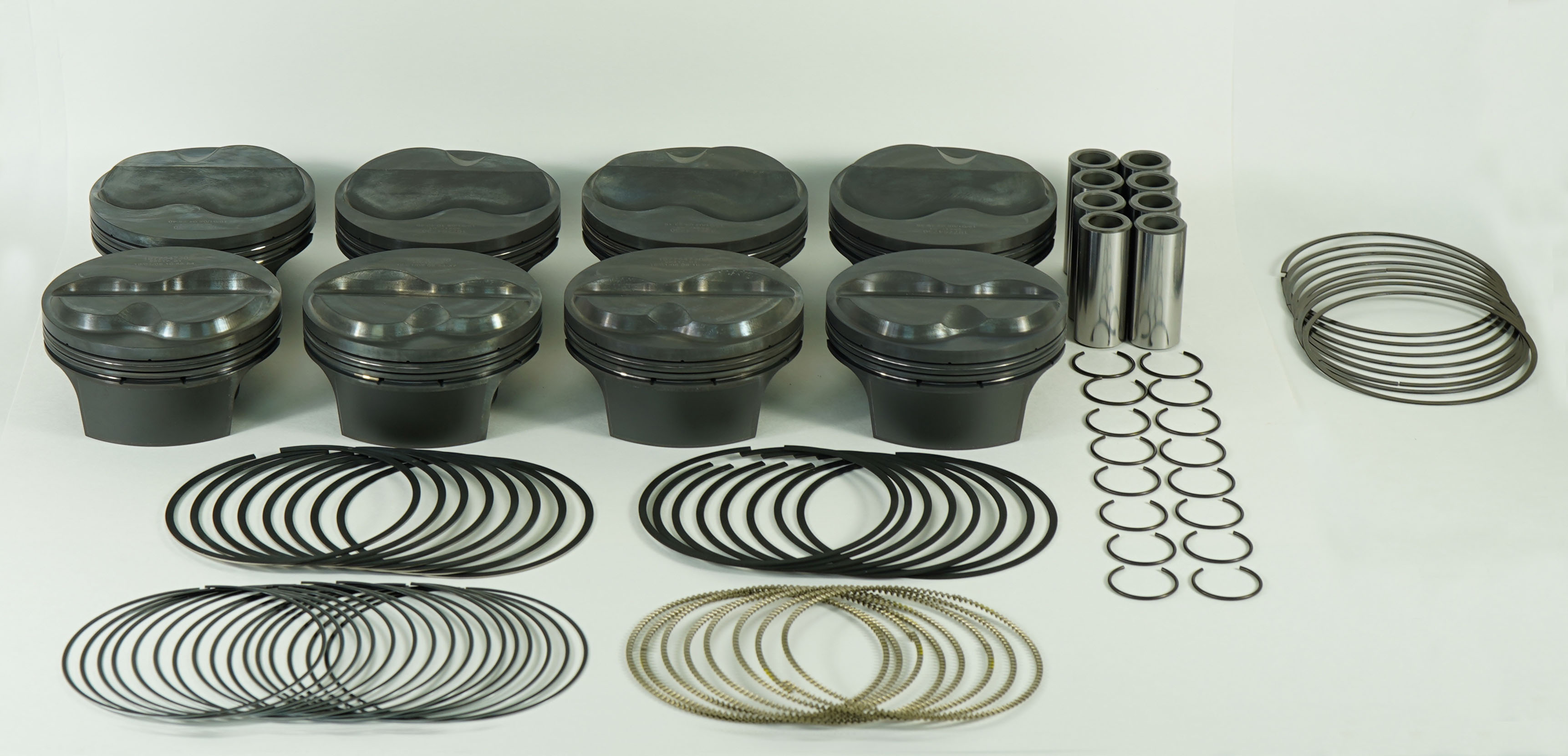

  • Complete set of 8 pistons with performance ring set, pins, and locks included
  • Forged 2618 alloy for high-strength, high-temperature applications
  • Precision-engineered valve reliefs for proper clearance
  • Ring set includes phosphate-coated top ring, chrome-plated stainless steel oil control ring, and HV385-coated upper compression ring

This piston set is designed for serious performance builds and motorsport applications where strength, precision, and reliability are critical. The complete assembly arrives ready for installation with only ring fitting required.

Products specifications

Pins Included

Yes

Pin Diameter

0.927

Crown Vol

9.0cc

Piston Material

Forged, 2618

Clip Style

Round Wire

Piston Style

Dome, With 2 valve reliefs

Coatings

Phosphate plus Grafal

Clips Included

Yes

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Rings Included

Yes

Lateral Gas Ports

Yes

Piston Mass

445g

Pin Style

Floating

Piston Kit Quantity

Sold as a set of 8

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
