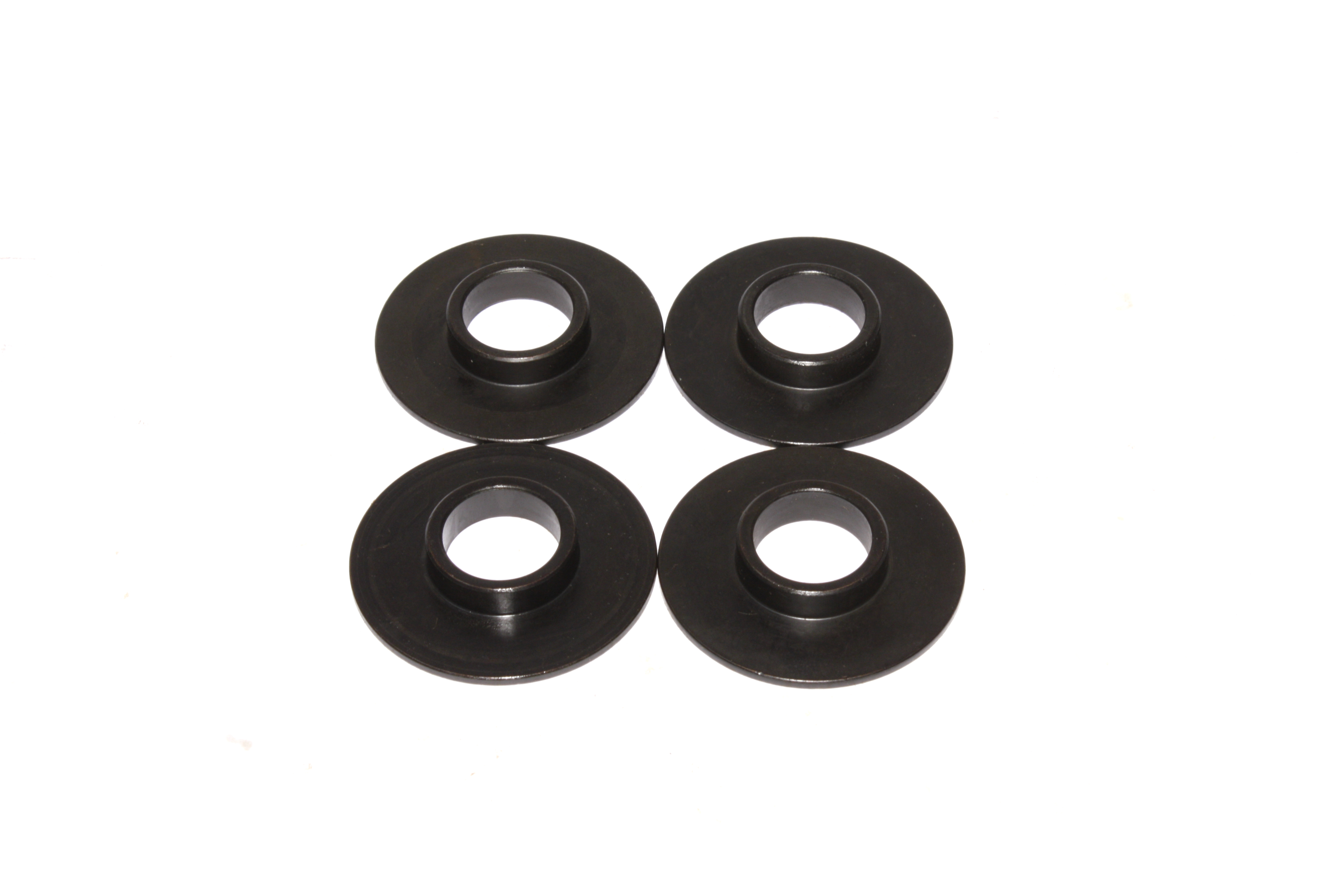

COMP Cams 4784-4 Hardened Steel ID Valve Spring Seat Locators for VT908 Springs

Manufacturer

Part Number

4784-4
Sale Price

$20.95

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Standard valve spring shims are no match for the extreme pressures and high-RPM demands of performance and racing engines. The COMP Cams 4784-4 hardened steel alloy ID spring seat locators provide a precision-engineered solution — protecting the cylinder head and shim while positively locating and securing the valve spring in place.

Unlike traditional cup-style seats that require extensive cylinder head machining to accept an external retaining shoulder, these locators feature an inboard I.D. locating shoulder that centers the spring from the inside diameter. This design eliminates the need for aggressive head machining while still delivering superior spring retention and stability.

Key Features:

  • Construction: Precision-machined hardened steel alloy for maximum durability under high spring pressures
  • Locator Style: I.D. (inside diameter) locator with inboard locating shoulder
  • Outside Diameter (OD): 1.500"
  • Inside Diameter (ID): 0.570"
  • Spring I.D. Clearance: 0.735"
  • Thickness: 0.060"
  • Designed for Use With: COMP Cams VT908 V-Twin valve springs
  • Protects aluminum cylinder heads from direct spring contact
  • Eliminates the need to stack shims to achieve correct installed height
  • Held to tight tolerances for consistent fit and performance

COMP Cams 4784-4 valve spring seat locators are available in multiple sizes to accommodate a wide range of cylinder head and spring configurations, allowing location from either the inside or outside diameter depending on your application requirements.

Products specifications

Title

ID Spring Locator Set of 4 - 1.500" OD, .570" ID, .060" Thickness
