Nitrous Express 80020-15 Triple-D 8-Cylinder Dry Direct Port 3-Stage Nitrous Kit with 15lb Bottle

The Nitrous Express 80020-15 Triple-D Dry Direct Port System delivers nitrous oxide directly into each cylinder of your 8-cylinder engine through three independent stages of high-flow NX dry nozzles. This progressive three-stage design allows for precise power control and is engineered to work with engine management systems capable of controlling fuel enrichment independently.

Premium Lightning Series Solenoids:

This system features six NX Lightning Series solenoids constructed with CNC-machined aluminum bodies topped with lightweight carbon fiber cans. The Lightning solenoids utilize an advanced flow path design where nitrous enters above the seat and exits through the bottom, providing superior flow characteristics compared to conventional solenoids. Each solenoid includes an integrated purge port, allowing direct connection of a purge valve to the solenoid body for cleaner installation and reduced plumbing complexity.

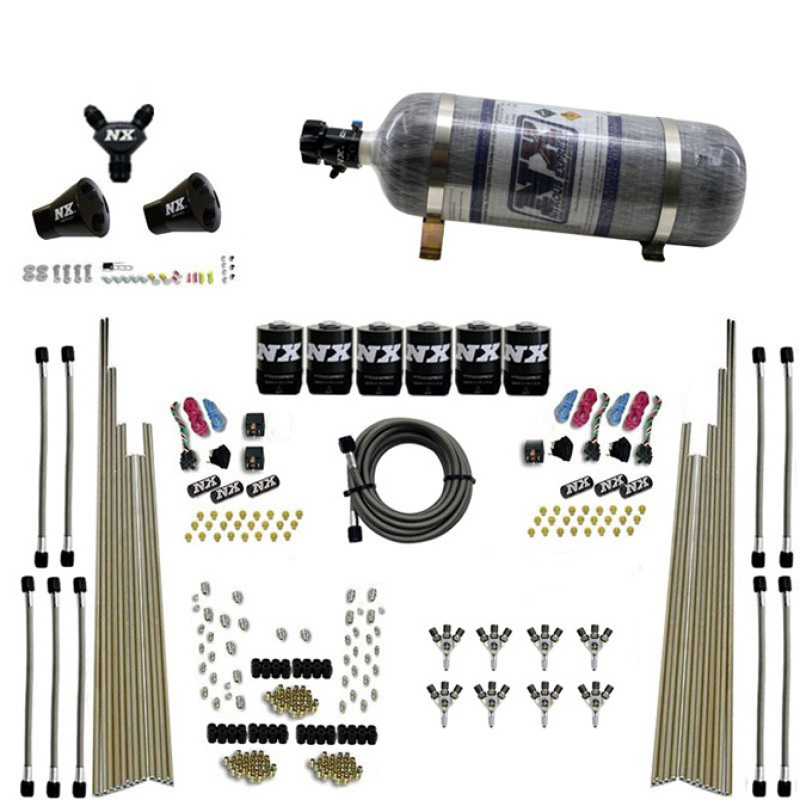

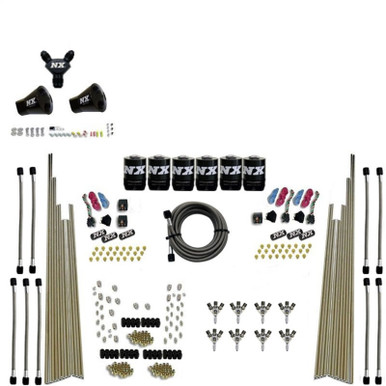

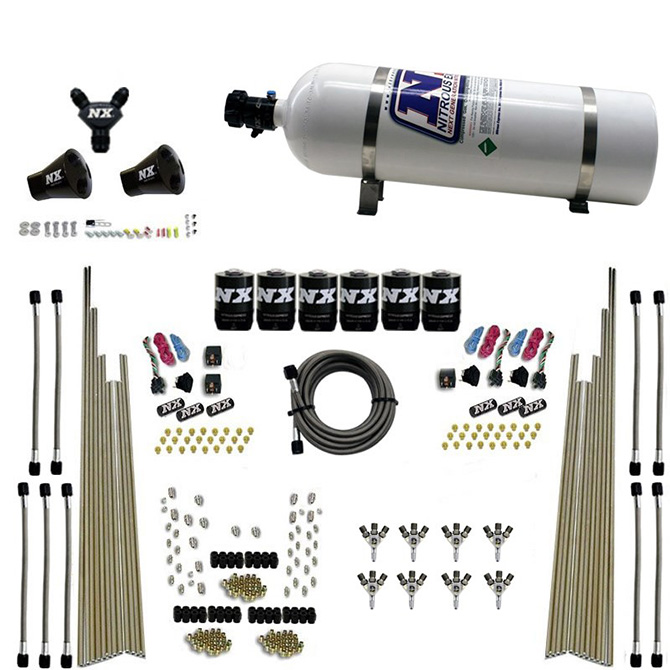

Complete Kit Includes:

• Eight Triple-D dry nitrous nozzles for direct cylinder injection
• Six Lightning Series nitrous solenoids with integrated purge ports
• Anodized aluminum distribution blocks for organized nitrous routing
• Billet aluminum shower head fittings
• 3/16-inch stainless steel hard lines
• High-flow 8AN Y-fitting for main feed distribution
• 8AN nitrous feed lines for maximum flow capacity
• Complete jetting for 200-500 horsepower per stage
• Nickel-plated brass fittings throughout
• Wide-open throttle (WOT) activation switch
• Master arming switch for safety control
• 40-amp relays with pre-wired harnesses
• Stainless steel bottle mounting brackets
• 15lb nitrous bottle with NX Lightning valve

Technical Specifications:

• Application: 8-cylinder engines
• Configuration: Three-stage progressive dry direct port
• Power Range: 200-500 HP per stage (600-1,500 HP total potential)
• System Type: Dry (requires separate fuel enrichment control)
• Feed Line Size: 8AN for maximum flow capacity
• Solenoid Count: 6 Lightning Series units
• Included Bottle: 15lb capacity with Lightning valve

Professional Installation Required:

The Triple-D Dry Direct Port system requires integration with an aftermarket engine management system or standalone fuel controller capable of providing appropriate fuel enrichment during nitrous activation. This system is designed for experienced tuners and racers who demand precise, cylinder-to-cylinder nitrous distribution for maximum performance and reliability.

All Nitrous Express Lightning Series components are manufactured in the USA using premium materials and are backed by a lifetime limited warranty against defects in workmanship and materials. The solenoids represent the most critical component of any nitrous system, and NX uses only the highest quality components to ensure reliable, repeatable performance.
