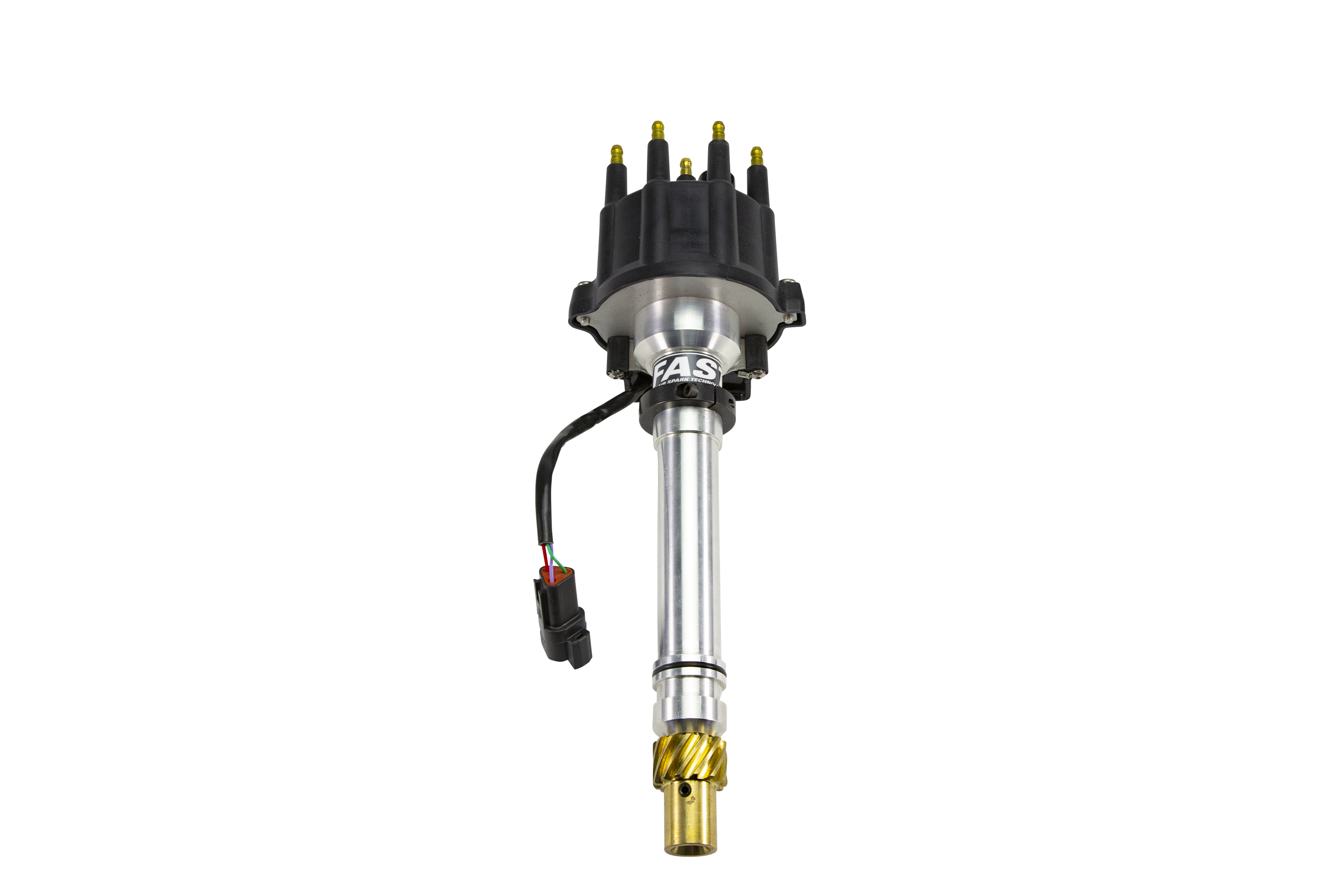

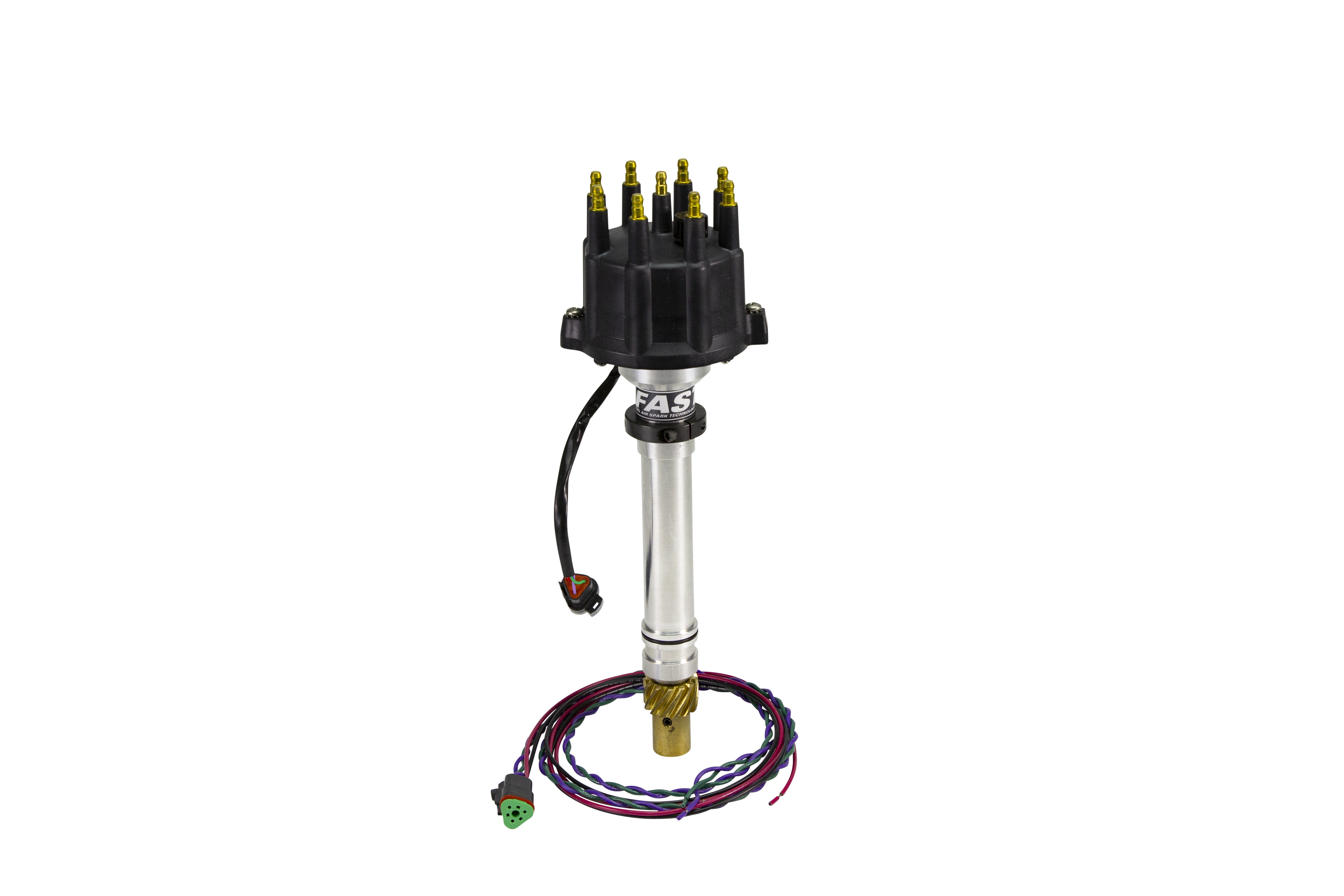

FAST 304006 XDi Race Cam Sync Distributor Small Cap Chevy Small & Big Block

The FAST XDi Race Cam Sync Distributor (PN 304006) is a turnkey cam synchronization solution engineered for Chevrolet small block and big block engines running aftermarket fuel injection systems. Featuring a small cap design and fully locked advance, this distributor delivers the precise cam position signal required by sequential EFI systems — without the complexity of a traditional crank trigger setup.

Built for performance-critical environments including drag racing, high-performance street, and marine applications, the 304006 is constructed with a billet aluminum housing, a precision-ground stainless steel shaft, and premium bearings for long-term durability and accuracy. All units are hand-assembled to maintain consistent shaft end play, eliminating a common source of triggering error.

Key Features:

• Hall-Effect optical pickup delivers a steady ±½-degree trigger signal for rock-solid ignition timing at all RPM ranges
• Outperforms inductive-style pickups that are prone to signal drift at high RPM
• Enables proper sequential fuel injection, individual cylinder spark timing, and fuel injector phasing for maximum power and efficiency
• Billet housing with precision-ground stainless shaft and premium bearings for race-grade reliability
• Hand-assembled construction ensures consistent shaft end play and repeatable triggering accuracy
• Locked advance — timing is controlled entirely by the ECU or ignition box
• Includes a precision-machined bronze gear compatible with billet steel camshafts
• Small cap configuration for tight engine bay clearance

Important: This distributor is designed to be used in conjunction with a crank trigger and an external ignition box. It provides cam sync signal only and does not fire the ignition independently. Sold individually.
