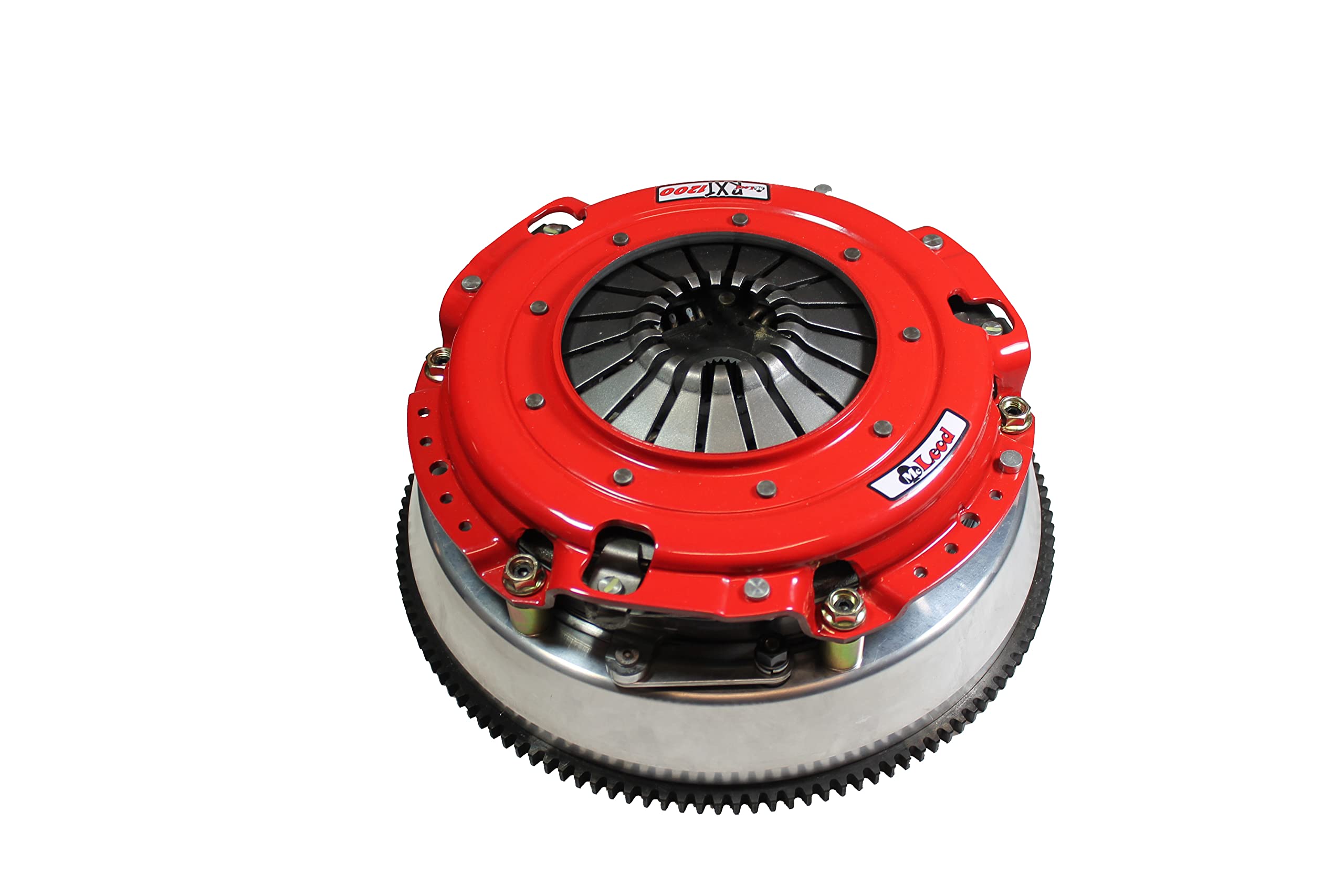

McLeod 6306807HD RXT Twin Disc Clutch Kit with Aluminum Flywheel Spline - 1200 168T 1-1/8x26

The McLeod RXT 1200 Twin Disc Clutch Kit (PN: 6306807HD) is a high-performance street/strip clutch system engineered to handle up to 1,200 horsepower. Designed for LSA engines (2009–2015) and LT1/LT5 engines (2014–2019), this complete kit includes a billet aluminum flywheel with a 168-tooth ring gear and a 1-1/8" x 26-spline input shaft configuration.

This is a complete, dedicated unit — the clutch assembly and flywheel are matched and sold together under a single part number, eliminating the need to source components separately. The kit is ready for plug-and-play installation right out of the box.

Key Features:

• 1,200 HP capacity — built for serious street/strip and high-horsepower applications
• Twin disc design with ceramic-lined clutch discs for smooth engagement and manageable pedal effort
• Billet aluminum flywheel — lightweight construction ideal for track-oriented builds
• 168-tooth ring gear with 1-1/8" x 26-spline hub configuration
• Compatible with LSA engines (2009–2015) and LT1/LT5 engines (2014–2019)
• Complete dedicated unit — clutch and flywheel included under one part number
• McLeod Racing exclusive patented design

The ceramic disc material delivers aggressive torque capacity while maintaining streetable drivability — making the RXT 1200 an ideal choice for enthusiasts who demand performance both on the street and at the track. The aluminum flywheel option reduces rotational mass for quicker throttle response, making it especially well-suited for track-day and drag strip use.

The McLeod RXT 1200 series is available in multiple configurations, including an adapter ring version that bolts to a supplied flywheel, and complete dedicated units with either a billet steel flywheel (street) or a billet aluminum flywheel (track). Part number 6306807HD is the complete twin disc kit with the aluminum flywheel.
