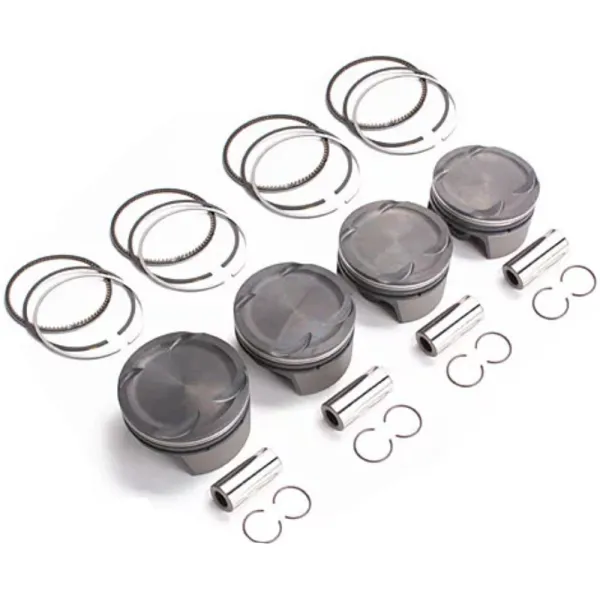

MAHLE 930081525 Gold Series Forged Piston Set Honda H22 87mm Bore 9.2CR 4032

Manufacturer

Part Number

930081525
Black Friday Price

$619.63

$628.92 Save 1%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

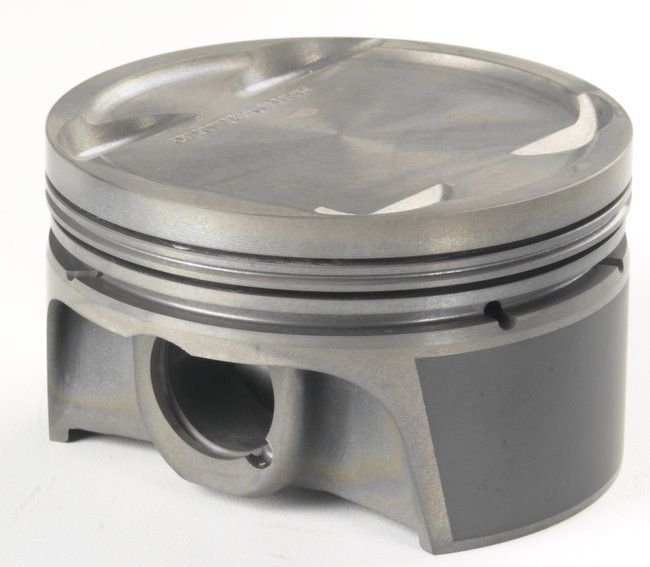

The MAHLE 930081525 is a Gold Series forged piston set engineered specifically for the Honda H22 2.2L engine. Constructed from low-expansion 4032 aluminum alloy, these pistons are designed to operate within the H22's factory Fiber Reinforced Matrix (FRM) cylinder bores — no block sleeving required. This makes them a true drop-in forged performance piston, a distinction that sets them apart from most aftermarket alternatives which require aftermarket sleeves.

Each piston features MAHLE's proprietary Grafal® anti-friction skirt coating to reduce drag, scuffing, and cylinder bore wear, as well as a phosphate coating on pin bores and ring grooves to prevent micro-welding and galling during initial engine start-up and break-in. The piston crown is fully machined and remains machinable for custom compression ratio tuning.

Specifications:

  • Bore Diameter: 87.00mm
  • Compression Height: 31mm
  • Stroke: 90.7mm
  • Rod Length: 143mm
  • Pin Diameter: 22mm
  • Dome Volume: -7.0cc (dish)
  • Advertised Weight: 293g per piston
  • Compression Ratio: 9.2:1
  • Alloy: 4032 Low-Expansion Aluminum

Kit Includes:

  • High-performance piston ring set (1.2mm x 1.2mm x 2.8mm)

MAHLE brings over 80 years of piston manufacturing expertise — from OEM production to Formula 1 racing — to every PowerPak piston. The 930081525 delivers race-ready performance with factory-friendly installation for the Honda H22 platform.

Products specifications

Rings Included

Yes

Coatings

Phosphate plus Ferroprint (FRM bores)

Pin Diameter

22mm

Crown Vol

-7.0cc

Piston Kit Quantity

Sold as a set of 4

Pins Included

Yes

Clips Included

Yes

Piston Ring Thickness

1.2mm, 1.2mm, 2.8mm

Clip Style

Round Wire

Pin Style

Floating

Piston Style

Dish, With 4 valve reliefs

Piston Mass

293g

Piston Material

Forged, 4032
