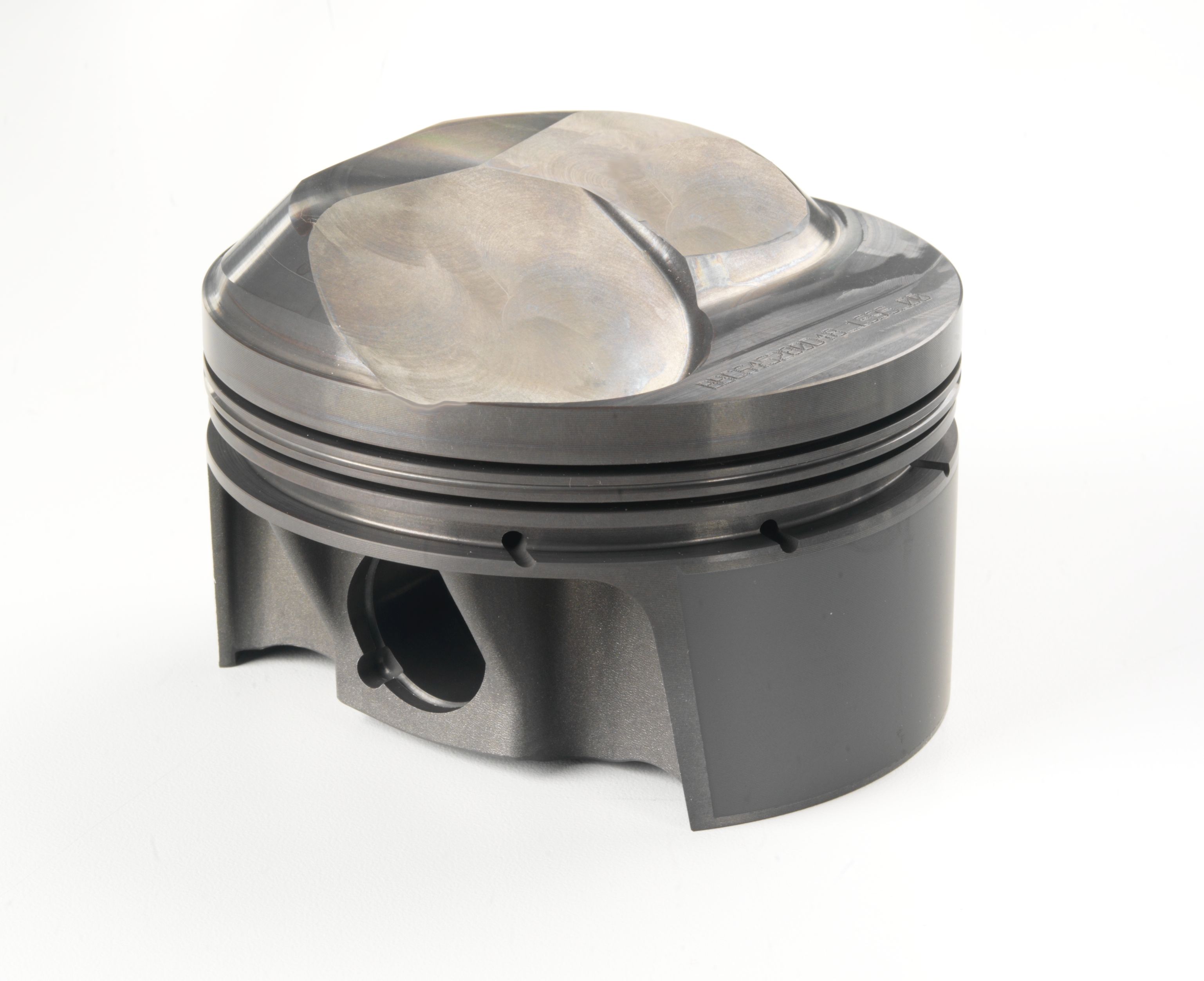

MAHLE 929906780 PowerPak Piston Kit 489ci 4.280" Bore 2618 Alloy 12.9:1 Compression

Manufacturer

Part Number

929906780
Sale Price

$867.86

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 929906780 is a high-performance PowerPak forged piston kit engineered for big-displacement racing engine builds. Designed for a 489 cubic inch application, this piston is forged from 2618 aluminum alloy — the premium choice for high-boost, high-detonation-load race engines that demand maximum strength and thermal resilience.

Key Specifications:

  • Displacement: 489 CID
  • Bore Diameter: 4.280"
  • Ring Groove Depth (Ring Channel Height): 1.270"
  • Stroke: 4.250"
  • Rod Length: 6.385"
  • Wrist Pin Diameter: 0.990"
  • Combustion Chamber Volume: 43.0cc
  • Piston Weight: 580 grams
  • Compression Ratio: 12.9:1
  • Alloy: 2618 Forged Aluminum

Why 2618 Alloy?

2618 aluminum alloy is the preferred material for forced-induction, nitrous, and extreme high-performance naturally aspirated race engines. It provides increased detonation resistance compared to 4032 alloy, making it ideal for builds pushing the limits of cylinder pressure and heat.

MAHLE PowerPak Features:

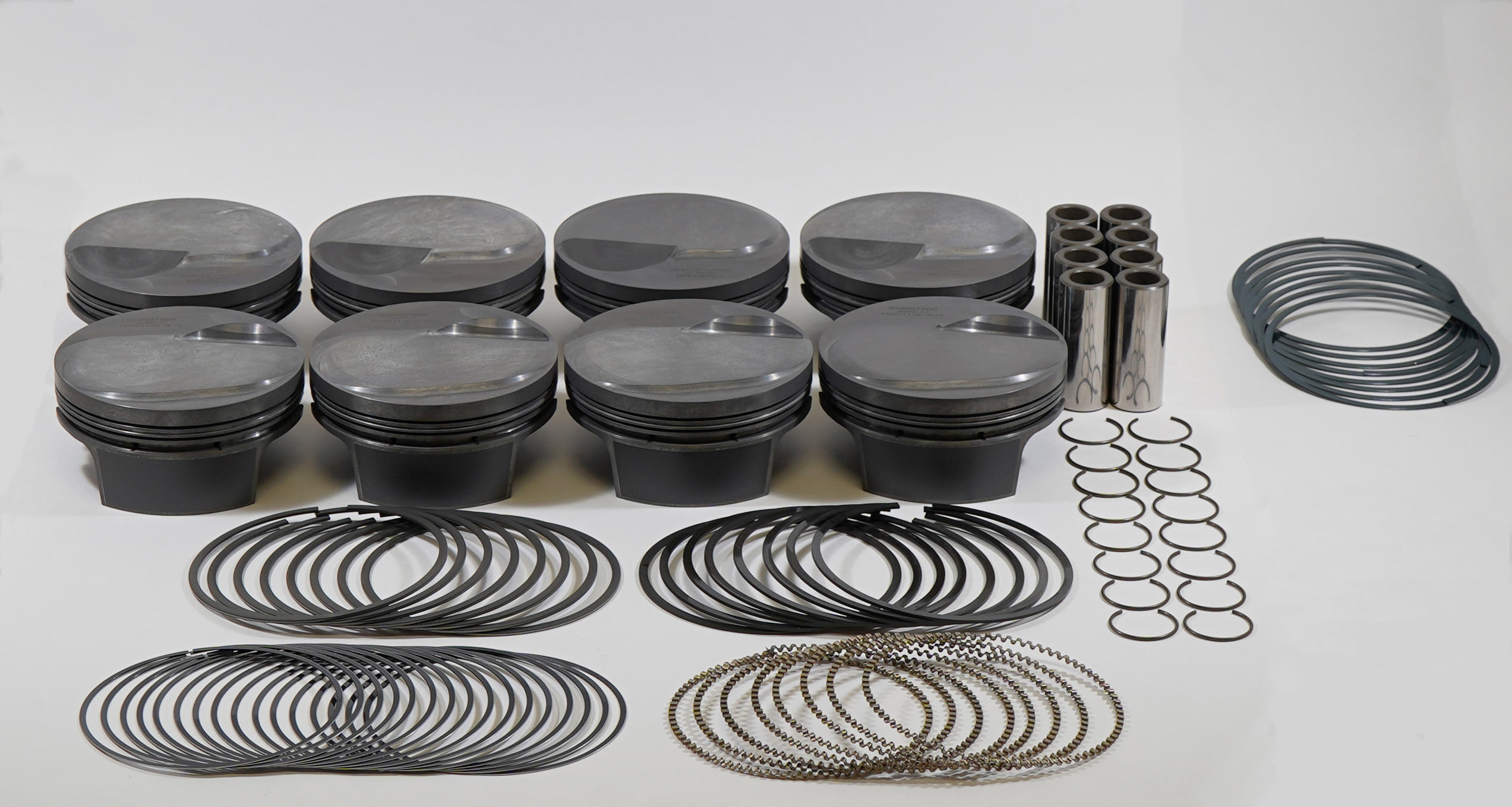

  • Complete race-proven piston assembly kit composed of hand-deburred, forged, performance-coated pistons, high-quality steel pins, round wire locks, and low-drag performance rings
  • Performance coatings include a phosphate dry lubricant to protect against ring micro-welding and pin galling during initial startup and break-in, plus MAHLE's proprietary Grafal anti-friction coating applied to each piston skirt
  • Ring grooves machined for lightweight, low-drag racing ring packs
  • Machinable piston crown for custom compression ratio tuning
  • Strong and lightweight design made possible by pioneering modern forging designs with slipper skirt and strutted forgings

This piston kit is built for serious engine builders competing in circle track, drag racing, or any high-output application requiring a reliable, race-proven forged piston at an aggressive 12.9:1 compression ratio.

Products specifications

Piston Material

Forged, 2618

Piston Style

Dome, With INT valve relief

Piston Kit Quantity

Sold as a set of 8

Rings Included

Yes

Piston Mass

580g

Pin Diameter

0.99

Crown Vol

43.0cc

Clip Style

Round Wire

Coatings

Phosphate plus Grafal

Piston Ring Thickness

1.5mm, 1.5mm, 3.0mm

Pins Included

Yes

Pin Style

Floating

Clips Included

Yes

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel

Piston Mass

583g
