MAHLE 928989305 PowerPak Plus Forged Piston Set 86.5mm Bore Toyota 2JZ-GTE

Manufacturer

Part Number

928989305
Black Friday Price

$751.42

$804.10 Save 7%

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

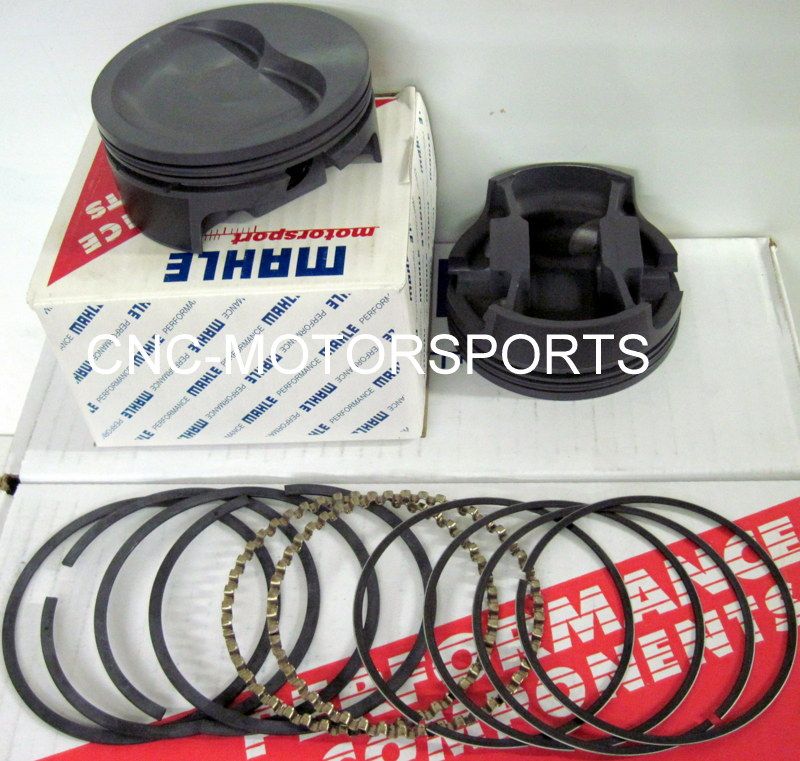

The MAHLE PowerPak Plus 928989305 is a complete, race-proven forged piston assembly kit engineered for Toyota 2JZ-GTE 3.0L engines. This drop-in performance piston set features an 86.50mm bore (+0.5mm overbore), making it ideal for high-performance builds and forced induction applications.

Complete Assembly Kit Includes:

  • Set of 6 hand-deburred forged pistons with dish design (-14.2cc dish volume)
  • High-quality 22mm steel wrist pins (103g each)
  • Performance piston ring set (1.2mm, 1.2mm, 2.8mm) with steel nitrided top ring
  • Race-proven round wire locks

Technical Specifications:

  • Bore Size: 86.50mm
  • Compression Height: 34.0mm
  • Stroke: 86.0mm (standard)
  • Rod Length: 142.0mm
  • Dish Volume: -14.2cc
  • Compression Ratio: 8.5:1 with 46cc cylinder heads
  • Piston Weight: 337 grams (advertised)

Advanced Performance Features:

  • Forged from high-strength 2618 aluminum alloy for superior detonation resistance
  • Proprietary Grafel anti-friction skirt coating reduces drag and friction
  • Phosphate dry lubricant coating protects against ring micro-welding and pin galling during initial startup and break-in
  • Forced pin oiler design for enhanced wrist pin lubrication
  • CNC precision-machined pin bores for exact tolerances
  • Low-drag performance file-fit ring set for optimal sealing

Backed by MAHLE's 80+ years of piston manufacturing expertise, from OEM applications to Formula 1 racing, this PowerPak Plus kit delivers the durability and precision required for serious performance builds. The complete assembly arrives ready to install, with only ring fitting required before installation.

Products specifications

Pins Included

Yes

Pin Style

Floating

Rings Included

Yes

Piston Material

Forged, 2618

Crown Vol

-14.2cc

Coatings

Phosphate plus Grafal plus Hard Anodized top ring groove

Piston Style

Dish, With 4 valve reliefs

Pin Diameter

22mm

Piston Kit Quantity

Sold as a set of 6

Clip Style

Round Wire

Clips Included

Yes

Piston Mass

337g

Piston Ring Thickness

1.2mm, 1.2mm, 2.8mm

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
