Manley 624305CE-4 Platinum Series Forged Pistons Evo X 4B11T 94mm Stroker 86.5mm

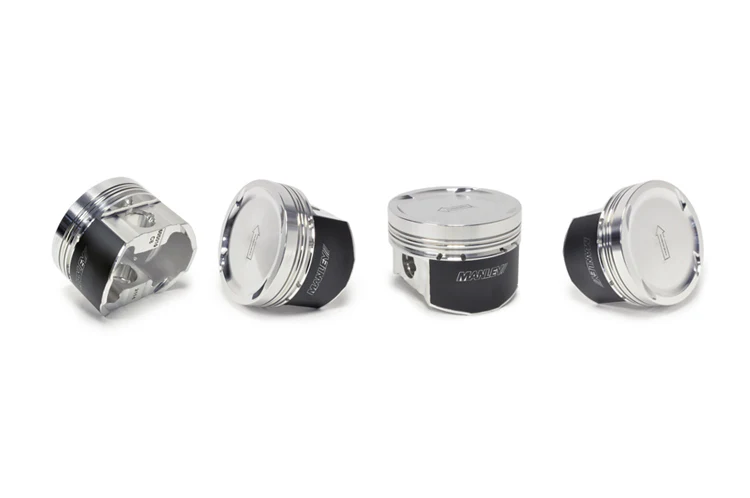

The Manley 624305CE-4 Platinum Series forged piston set is engineered for high-performance 2008-2015 Mitsubishi Lancer Evolution X applications running a 94mm stroker crankshaft. These pistons are designed for 86.5mm bore (+0.5mm oversize) with a 10.0:1 compression ratio and -3.5cc dish design, making them ideal for turbocharged street and track builds.

Key Features:

• Forged from high-strength 2618 aluminum alloy for maximum high-temperature strength and fatigue resistance
• Lightweight design with offset wrist pin for quiet start-ups and reduced piston slap
• Unique "one fixturing" manufacturing method ensures perfect ring groove to skirt squareness for maximum horsepower
• Moly-coated skirts for reduced friction and improved wear resistance
• Contour forgings provide optimum balance between strength and weight with no grain-interrupting internal milling
• Pressure balance groove included for improved ring seal and stability

Complete Kit Includes:

• Premium steel top ring sets with Napier second rings from Total Seal
• Premium chrome moly wrist pins (.866" / 22mm diameter)
• Round wire locks

Manley's proprietary multi-step top ring groove machining process ensures optimum control of groove size, geometry, flatness, and finish. Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity for consistent performance across all four cylinders.
