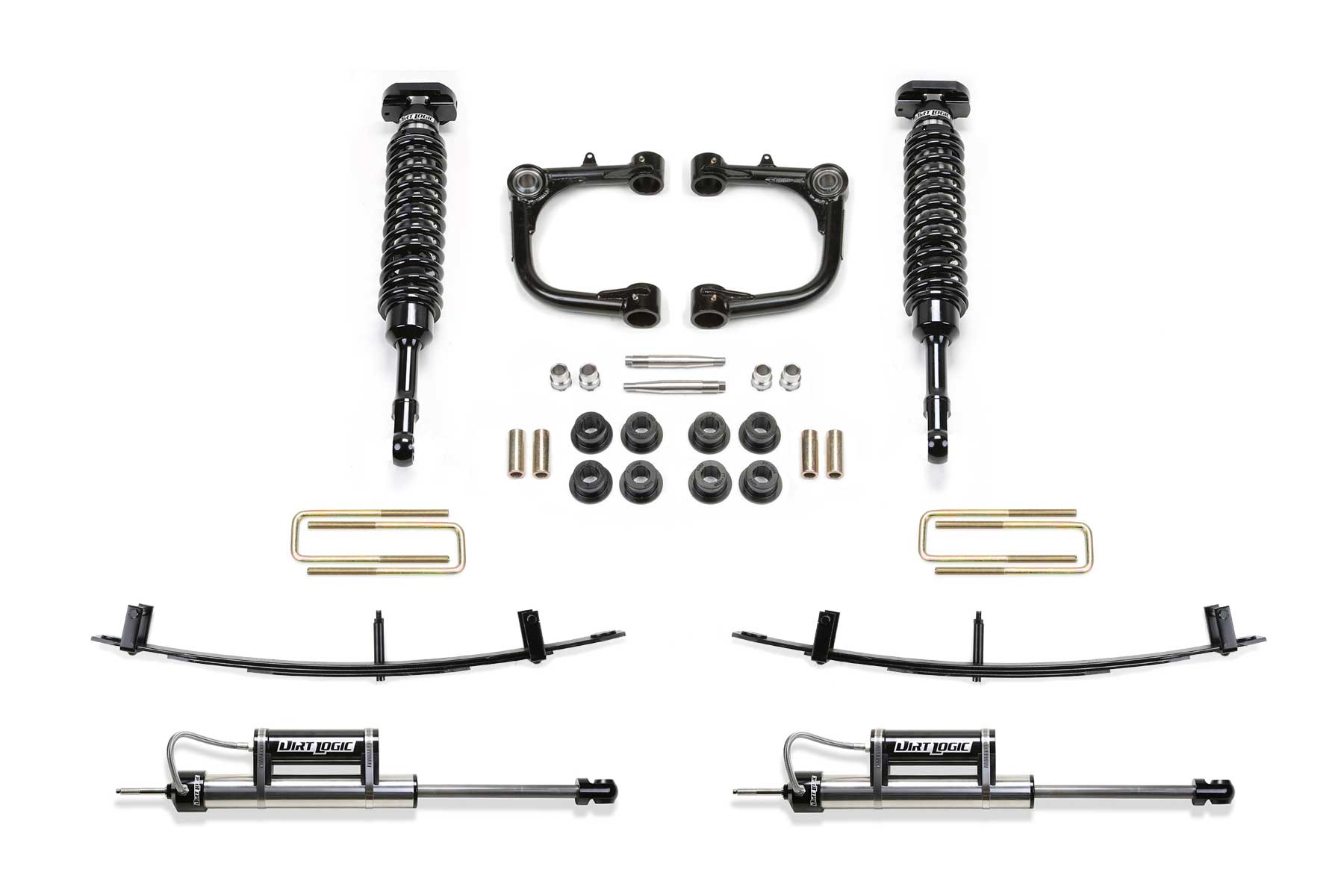

Fabtech K7062DL 3 Inch Uniball Upper Control Arm Lift Kit with Dirt Logic Coilovers for Toyota Tacoma

(2015-2021 Toyota Tacoma)

Manufacturer

Part Number

K7062DL
Black Friday Price

$3,496.55

Estimated ship date Monday, December 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Transform your Toyota Tacoma's off-road capabilities with the Fabtech K7062DL 3-inch suspension lift system. This comprehensive performance upgrade combines heavy-duty tubular upper control arms with premium Dirt Logic coilover and shock technology for exceptional wheel travel and ride quality.

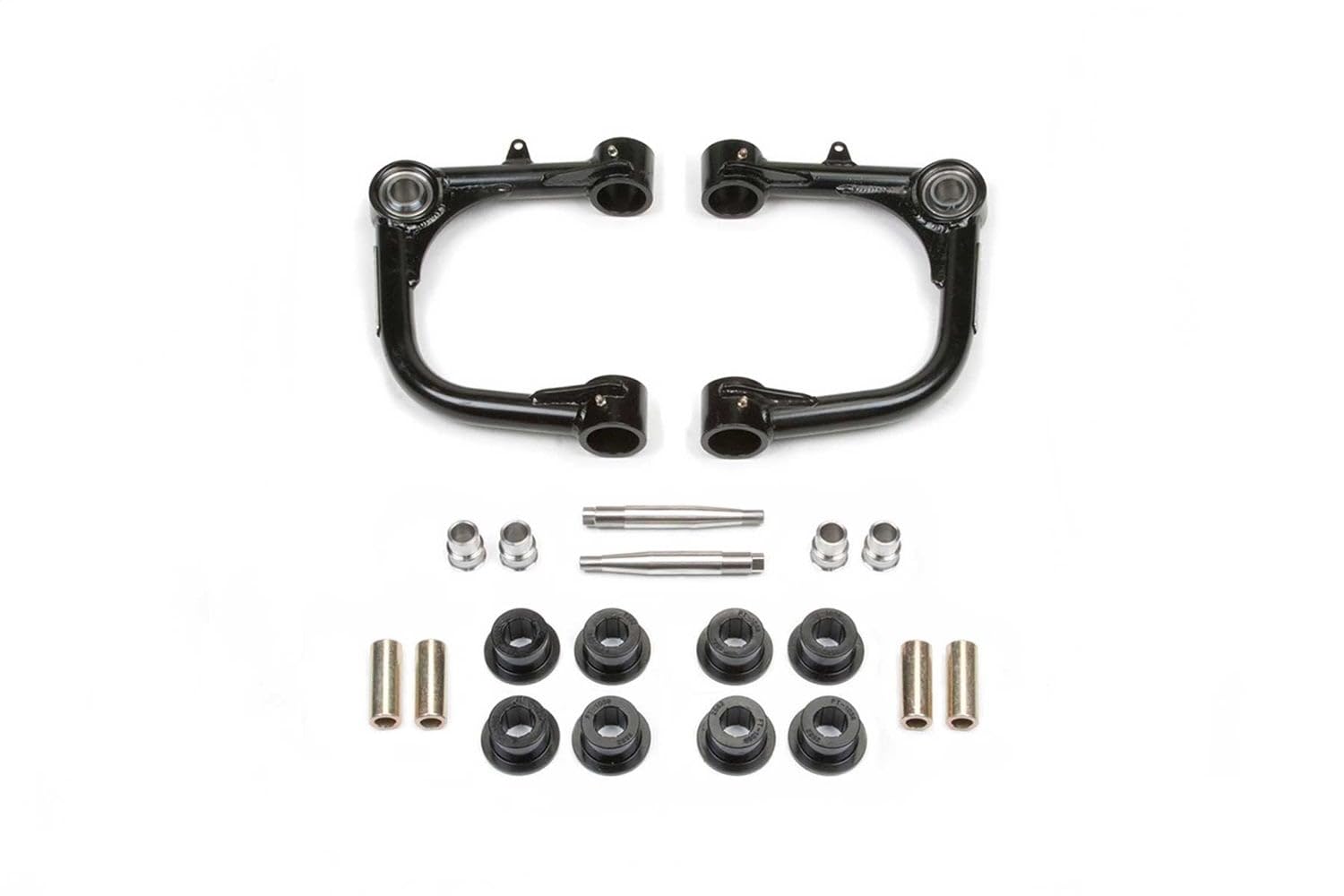

Uniball Upper Control Arm Construction:

  • 1.25-inch OD chromoly tubing with .120-inch wall thickness for maximum strength and reduced flex
  • 1-inch diameter stainless steel uniballs replace factory ball joints for improved articulation
  • Heat-treated 17-4 stainless steel tapered uniball pins fit factory spindle taper without drilling
  • Direct bolt-on installation with no permanent modifications required
  • Engineered for aggressive off-roading and severe duty applications

Dirt Logic Suspension Components:

  • Front: Dirt Logic 2.5 coilovers with cold-wound springs deliver 10 inches of wheel travel
  • Rear: Dirt Logic 2.25 reservoir shocks provide 10 inches of travel with enhanced damping
  • Remote reservoir design allows full shock stroke without travel loss
  • Pre-tuned valving optimized for lifted suspension and larger tire applications

Rear Leaf Spring Enhancement:

The included three-leaf spring pack replaces the factory configuration by eliminating the stiff lower overload leaf. This upgrade increases suspension flexibility and travel while significantly improving ride quality both on and off-road.

Tire Fitment Capability:

  • 33x12.50R17 tires with 17x8 wheels (4-5/8-inch backspacing, minor trimming required)
  • 275/70R18 tires with 18x9 wheels (4-3/4-inch backspacing, minor trimming required)
  • 275/60R20 tires with 20x9 wheels (5-inch backspacing, minor trimming required)

This complete system is designed for 2015-2021 Toyota Tacoma 2WD PreRunner and 4WD models with 6-lug wheels. The mild lift height combined with maximum wheel travel makes this kit ideal for high-speed desert running and technical off-road use while maintaining excellent on-road manners. Professional installation recommended. Complete mounting hardware included.

Products specifications

Fits

2015-2021 Toyota Tacoma
