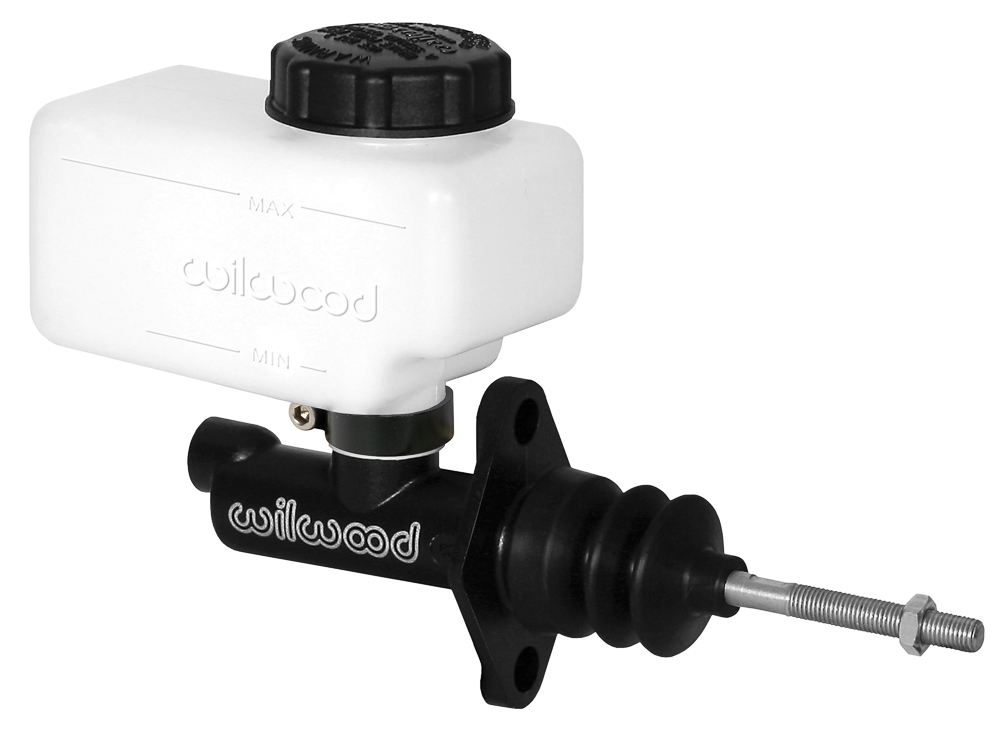

Wilwood 260-14784 Compact Remote Brake Master Cylinder 15/16 Inch Bore

The Wilwood Compact Remote Master Cylinder delivers full-size performance in a space-saving design. Engineered for applications where clearance is limited, this 15/16" bore master cylinder provides the output capacity you need without compromising installation options.

Compact Design:

• Ultra-short 3.37" body length saves 2.16" of clearance between mounting flange and fluid outlet
• Full 1.12" piston stroke meets or exceeds stroke capacity of most full-size cylinders
• Ideal for limited space applications requiring full-size master cylinder performance

Advanced Engineering:

• 1/8" NPT fluid outlet port positioned at top radius of cylinder bore to minimize trapped air
• Enhanced fluid inlet port accommodates standard reservoir (included in kit)
• 11/16-20 internal threads allow custom reservoir configurations
• Black E-coated aluminum body resists corrosion and maintains durable, long-lasting finish

This complete kit includes the master cylinder and standard reservoir, providing everything needed for installation in tight-clearance brake systems. The remote design with top-mounted outlet makes routing and bleeding easier while reducing the risk of air contamination.
