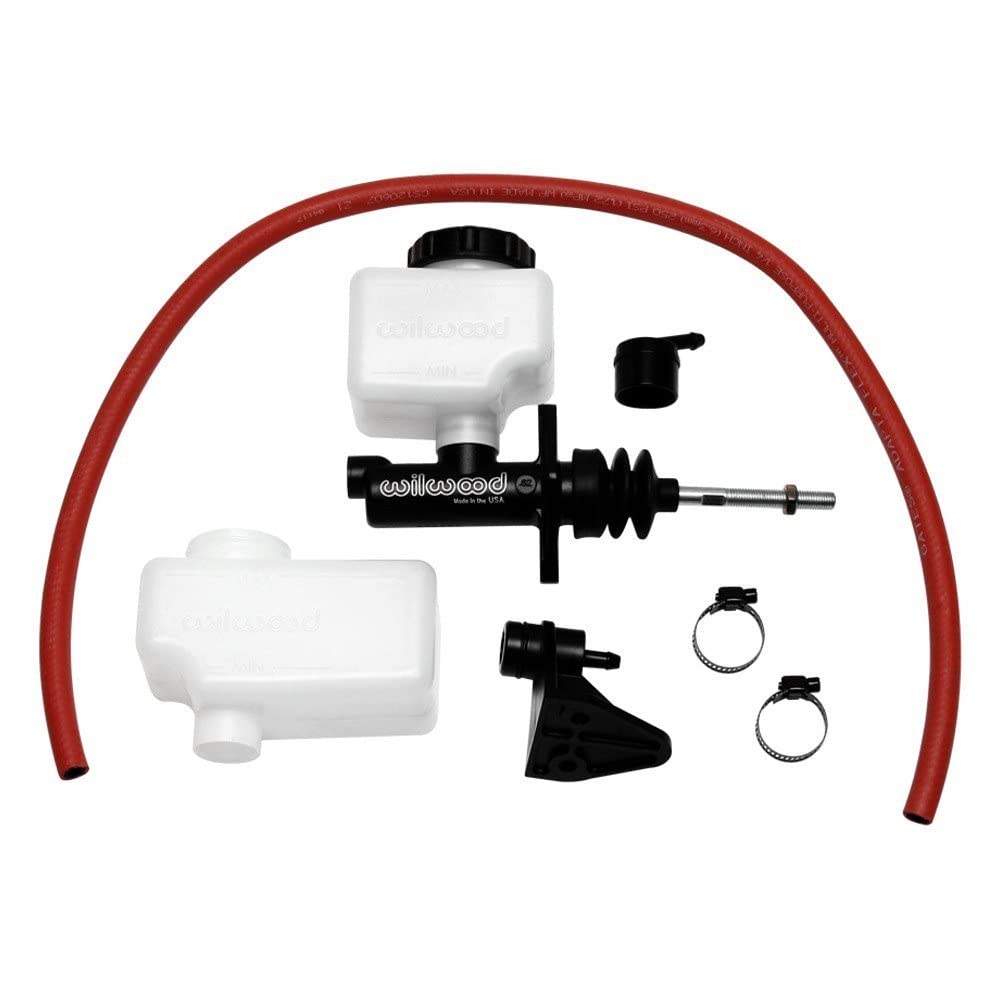

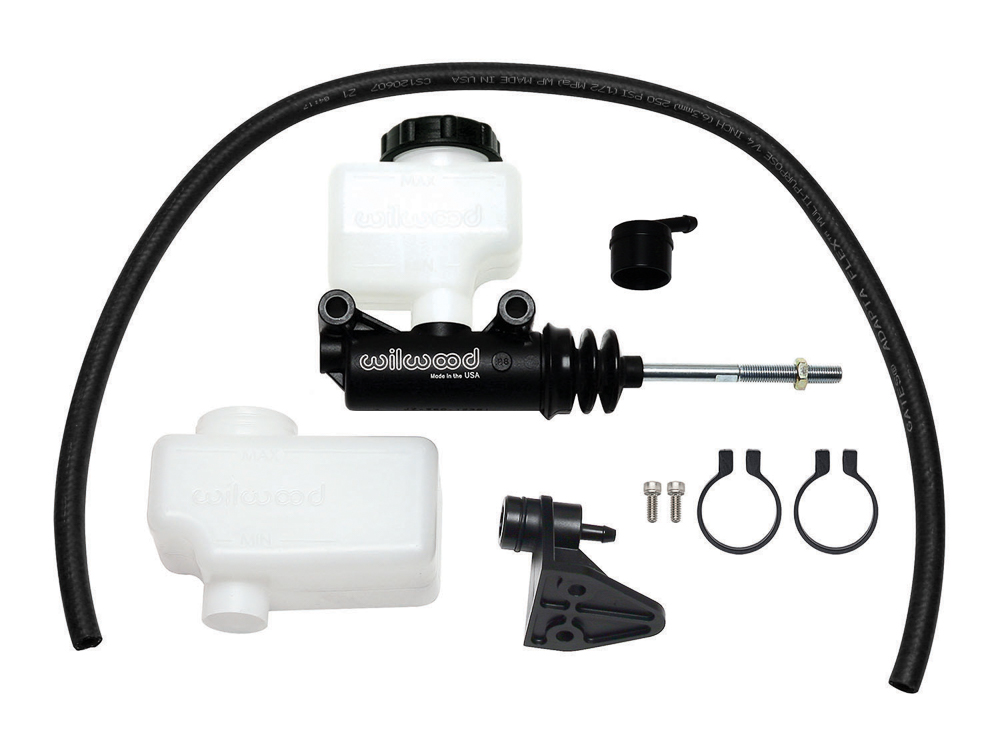

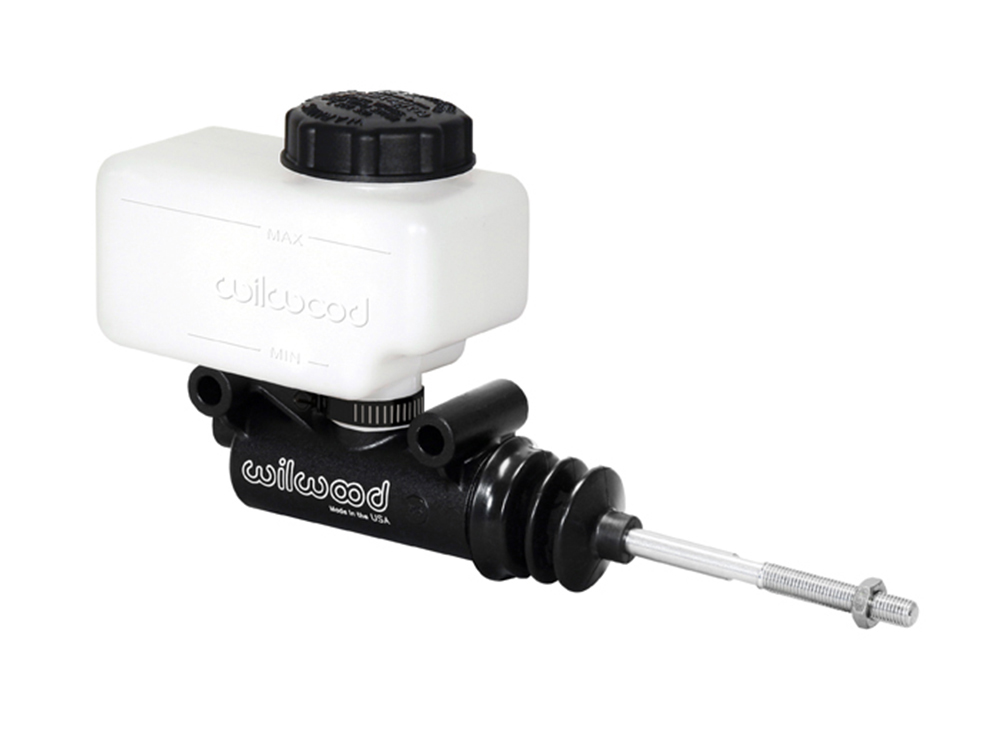

Wilwood 260-14790 Compact Remote Side Mount Brake Master Cylinder 15/16" Bore

The Wilwood 260-14790 Compact Remote Side Mount Master Cylinder is engineered for limited space applications that demand the output capacity of a full-size master cylinder. Featuring a 15/16" bore size, this brake master cylinder delivers reliable braking performance in tight mounting configurations.

Key Features:

• Ultra-compact 3.37" body length provides 2.16" of additional clearance between mounting boss and fluid outlet
• Side mount design with integral mounting lugs on 3.00" centers eliminates traditional mounting flange for easier installation in confined spaces
• Full 1.12" piston stroke meets or exceeds the capacity of most full-size cylinders
• 1/8" NPT fluid outlet port positioned at top radius of cylinder bore to reduce trapped air
• Enhanced fluid inlet port accommodates standard reservoir (included in kit) and features 11/16-20 internal threads for custom reservoir configurations
• Black E-coated aluminum body resists corrosion and maintains a durable, long-lasting finish

This compact remote master cylinder is ideal for custom brake setups, racing applications, and any installation where space is at a premium without sacrificing braking performance.
