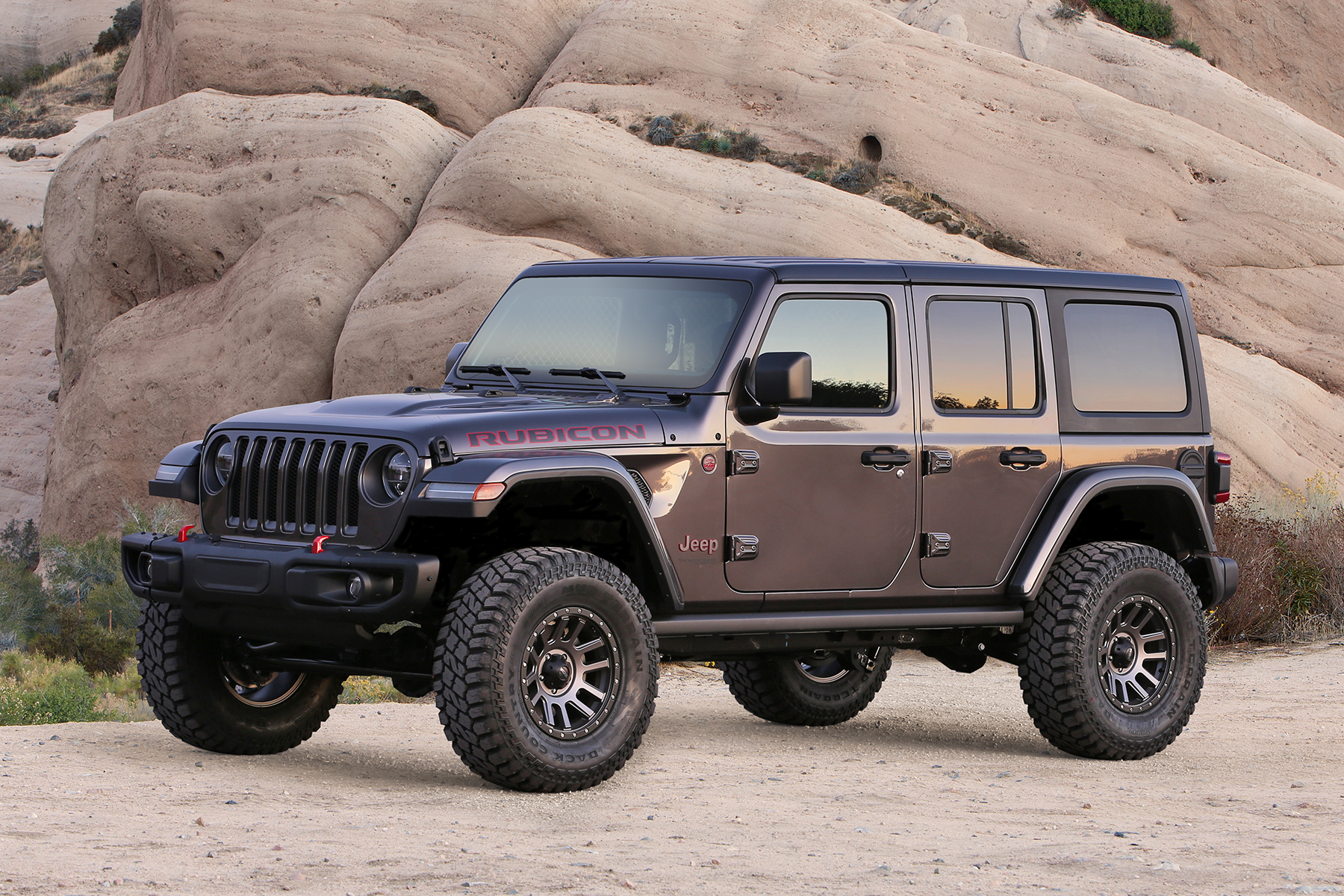

The Fabtech K4117DL 3-inch Trail System is engineered to deliver enhanced suspension performance for serious off-road enthusiasts. Whether you're rock crawling, tackling aggressive trails, or embarking on overland expeditions, this complete short arm suspension kit transforms your Jeep Wrangler JL's capability while maintaining excellent on-road manners.
Advanced Dual Rate Coil Spring Technology:
Fabtech's corner-specific long travel dual rate coil springs are precision-tuned for the JL platform. The first stage provides a soft, compliant ride with extended travel capability, while the second stage handles payload demands and absorbs large impacts at higher speeds. This design keeps your vehicle level side-to-side while maximizing suspension articulation.
Heavy Duty Link Arms:
The included Fabtech link arms feature robust 1.75-inch OD, 0.250-inch thick wall steel tubing construction that's guaranteed never to bend. These arms utilize large polyurethane bushings on one end and internal threads on the other to accept Fabtech's innovative 5 Ton Joints, ensuring longevity and whisper-quiet operation on and off the highway.
Optimized Steering Geometry:
To maintain proper steering geometry at the increased ride height, this kit includes a draglink flip system and heavy-duty track bar bracket. This setup relocates the steering geometry to the factory plane, allowing full articulation without binding the draglink ends in extreme conditions. Unlike dropped pitman arm solutions, the factory draglink angle is preserved, eliminating increased side load on the steering box sector shaft and extending steering box life.

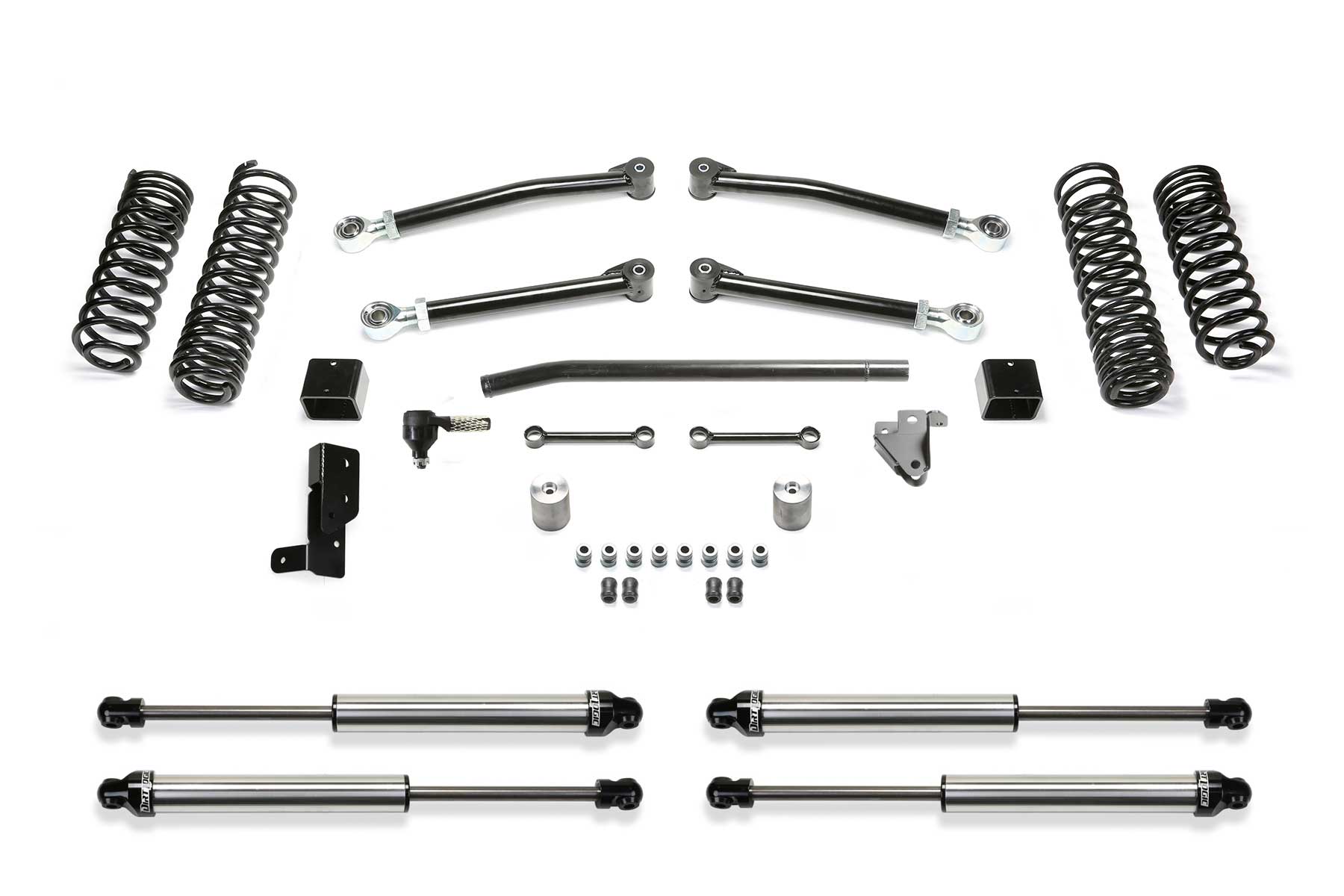

Complete System Components:
- Corner-specific dual rate coil springs for level stance and maximum travel
- DLSS (Dirt Logic SS) shock absorbers tuned specifically for this application
- Heavy duty link arms with 5 Ton Joints and polyurethane bushings
- Draglink flip system for proper steering geometry
- Heavy duty front and rear track bar brackets with side support
- Front and rear bump stop extensions to prevent over-cycling
- Utilizes factory control arm mounts for straightforward installation
This system maintains the factory roll center while centering the axles properly. The heavy-duty rear track bar bracket includes side support for added strength and stability. Every component has been engineered with the demanding JL owner in mind, delivering a suspension system that excels both on the trail and during daily driving.
