JE Pistons 338062 FSR Forged 2618 Dome Piston Set 89mm 3.504 Bore K-Series K20

Manufacturer

Part Number

338062
Sale Price

$899.99

Estimated ship date Monday, November 16

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 338062 is a premium forged piston set designed for high-performance Honda/Acura K-Series K20 engines. Featuring JE's proprietary Forged Side Relief (FSR) asymmetrical forging technology, this set delivers exceptional strength and reduced mass for demanding motorsport and high-boost street applications.

Constructed from 2618 wrought aluminum alloy, these pistons are built to withstand the extreme pressures associated with high compression ratios, forced induction, and nitrous applications. The asymmetrical skirt design minimizes friction and piston mass while maintaining a rigid, durable platform. A Smooth Finished Crown process promotes optimum flame travel for consistent combustion efficiency.

Key Features:

  • Forged 2618 high-tensile aluminum alloy construction — ideal for high-boost and nitrous applications
  • Proprietary FSR asymmetrical skirt reduces friction, mass, and power loss
  • Dome crown configuration for elevated compression ratio (12.3:1)
  • 3.504 in. (89mm) bore diameter
  • 1.176 in. compression height (CD)
  • 0.866 in. (22mm) straight-wall carbon steel wrist pins with offset pin placement for quiet operation
  • Ring grooves: 1.0 x 1.2 x 2.8mm (ring prefix JG1) or 1.2 x 1.2 x 2.8mm (ring prefix JC2)
  • 100% engineered, forged, and machined in the USA

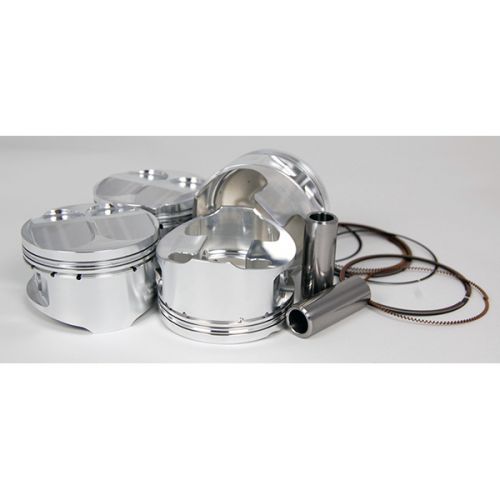

What's Included:

  • 4 forged pistons
  • 4 wrist pins
  • 4 wrist pin locks
  • 4 JE Pro Seal premium piston rings

With over 70 years of racing heritage, JE Pistons has earned trust from professional race teams across NASCAR, NHRA, ALMS, and more. The 338062 piston set delivers the same competition-proven technology for engine builders seeking maximum performance and reliability.

Products specifications

Top Compression Ring Thickness

0.04

Piston Head Type

Dome

Piston Pin Length

2.250

Add-On

866-2250-15-51C

Second Compression Ring Thickness

0.048

Product Market

Sport Compact

Cylinder Head

K20

Add-On

866-063-MW

Compression Height

1.176

Make

ACURA

Engine

K Series

Category Hierarchy

Pistons>Piston Kits

Piston Pin Material

5115

Ringset Included

Yes

Piston Pin Wall Thickness

0.150

Piston Material

2618

Piston Pin Outside Diameter

0.866

Bore Diameter

89.00

Oil Ring Thickness

0.111

Industry

Automotive

Add-On

JG1001-3504

Forging Type

FSR

Piston Volume

9

Out of Stock Message

Call for Availability

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Piston Quantity

4
