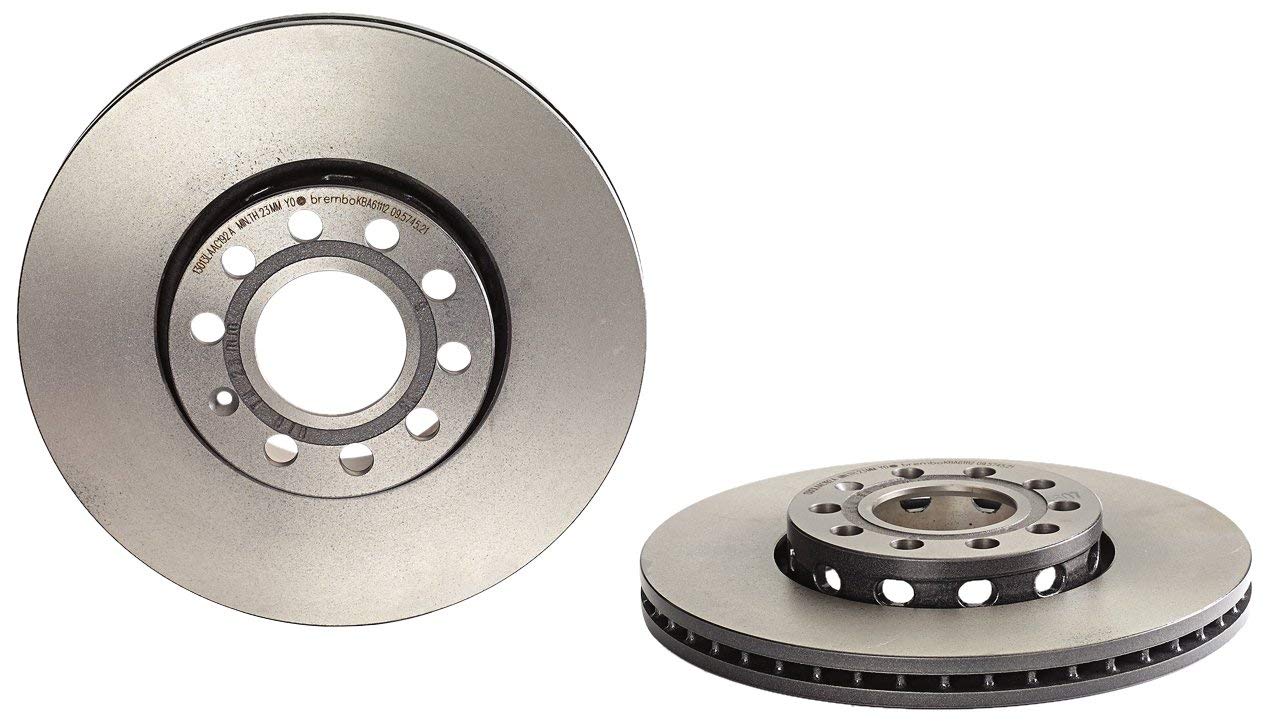

Brembo 09.5745.21 UV Coated Front Brake Rotor 288mm Vented

(1996-2006 Audi A4 Quattro; 1995-2001 Audi A6 Quattro; 1996-2006 Audi A4; 1995-2001 Audi A6; 1992-1994 Audi 100; 1992-1994 Audi 100 Quattro + 1 more model)

Manufacturer

Part Number

09.5745.21
Black Friday Price

$113.50

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Brembo 09.5745.21 is a premium UV coated front brake rotor engineered as a direct OEM replacement that meets or exceeds original equipment specifications. This 288mm vented rotor features Brembo's advanced environmentally friendly UV coating technology, providing superior corrosion resistance while maintaining a clean, brilliant appearance.

Key Features:

  • 288mm diameter vented design for optimal heat dissipation
  • 25mm nominal thickness with 23mm minimum thickness marking
  • High carbon cast iron construction minimizes noise and vibration
  • Solvent-free UV coating protects braking surfaces and hub from corrosion
  • 5-bolt mounting pattern with 68mm center bore
  • ECE-R90 certified for safety and quality assurance
  • Includes fixing screw kit for complete installation
  • Intelligent part number and minimum thickness markings for easy inspection

Technical Specifications:

  • Rotor Diameter: 288mm (11.3 inches)
  • Thickness: 25mm nominal, 23mm minimum
  • Height: 46mm
  • Center Bore: 68mm
  • Bolt Pattern: 5-hole
  • Tightening Torque: 120 Nm
  • Weight: 16.73 lbs

Brembo's UV coating process is environmentally responsible, using water-based treatments without chemical solvents. The coating protects the entire disc surface including the outer edges and hub, ensuring long-lasting performance and appearance. For optimal braking performance, Brembo recommends replacing rotors and pads together and pairing this rotor with Brembo NAO/Ceramic or Low-Met brake pad formulations. This rotor is sold individually.

Products specifications

Fits

1996-2006 Audi A4 Quattro; 1995-2001 Audi A6 Quattro; 1996-2006 Audi A4; 1995-2001 Audi A6; 1992-1994 Audi 100; 1992-1994 Audi 100 Quattro; 1999-2001 Volkswagen Passat
