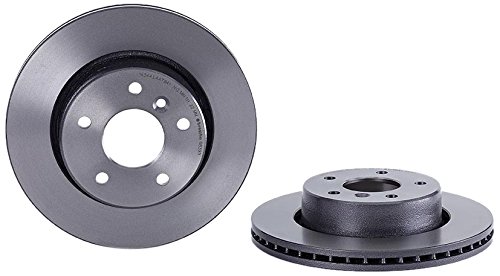

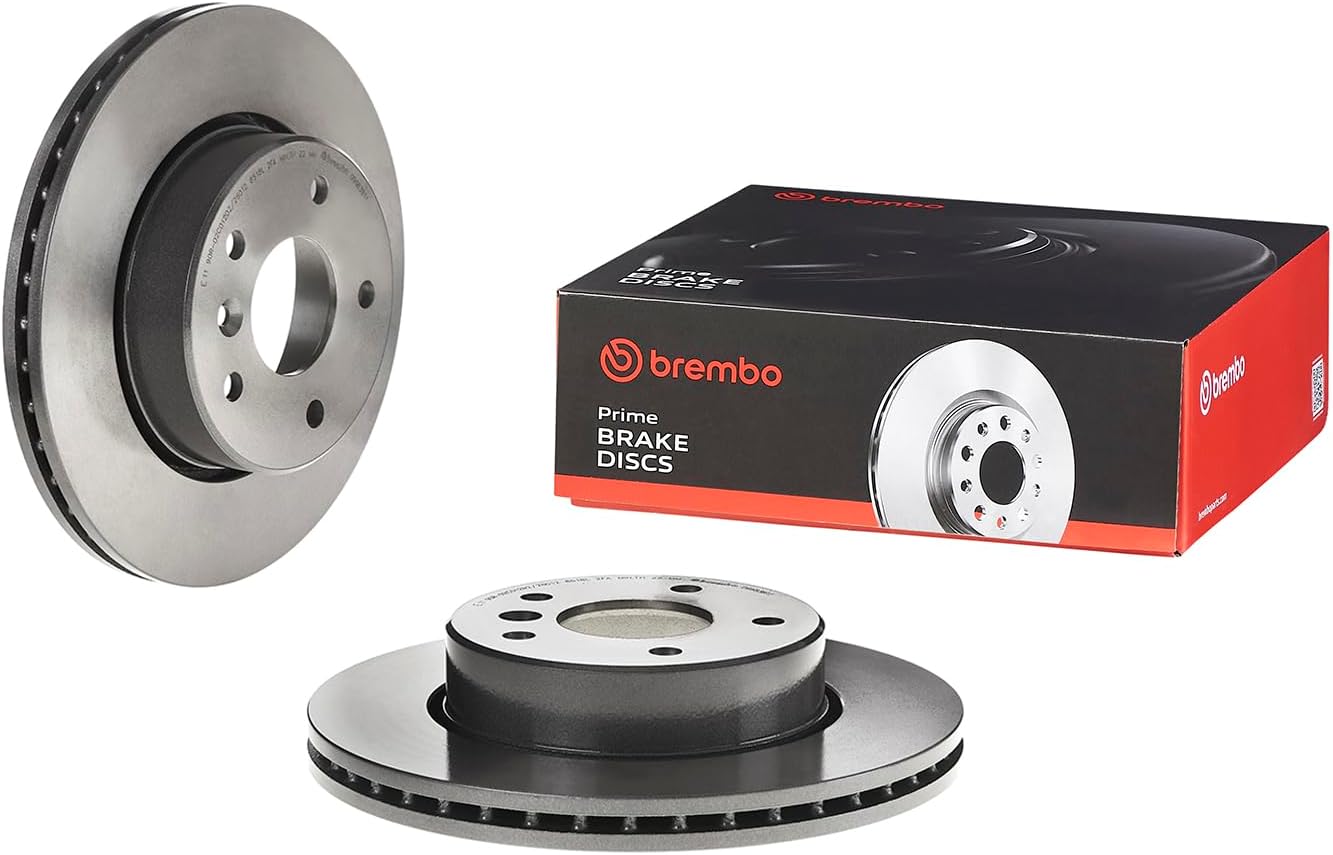

The Brembo 09.6839.11 UV Coated Front Disc Brake Rotor represents the global leader in braking technology's commitment to performance, durability, and safety. Engineered with the same precision found in Brembo's original equipment for the world's leading automakers, this rotor delivers consistent stopping power, smooth operation, and long-lasting reliability for demanding driving conditions.
Advanced UV Coating Technology:
Brembo's innovative UV coating protects the entire rotor surface, including internal ventilation chambers, against corrosion to ensure lasting performance and a clean, refined appearance even after extended use. This environmentally friendly, solvent-free coating offers superior protection compared to traditional coatings and is ready to install right out of the box—no surface cleaning required. The water-based UV coating eliminates harmful solvents and reduces VOC emissions, while the UV curing process consumes less energy than high-temperature coating methods.
Premium Construction and Features:
- Premium cast iron formulation optimized for strength, heat dissipation, and vibration control
- High-carbon metallurgy (where applicable) minimizes noise and vibration while enhancing thermal stability
- Precision balancing and tight manufacturing tolerances minimize runout for smooth, confident braking
- Electronically tested to ensure perfect balance and reliability right out of the box
- Meets or exceeds OEM specifications for fit, function, and performance
- Includes fixing screw kit with all necessary hardware for simple installation
- Intelligent marking shows part number and minimum thickness for easy inspection
Pillar Venting Technology:
Select applications feature Brembo's patented Pillar Venting Technology (PVT), which uses pillars instead of conventional vanes in the ventilation chamber. This innovative design increases airflow through the rotor for up to 40% greater resistance to thermal cracking compared to standard vane systems, while improving heat dissipation capacity and overall thermal performance.
For optimal braking performance, rotors and pads should be replaced together. Pair this UV Coated rotor with Brembo NAO/Ceramic or Low-Met brake pad formulations for a complete brake system upgrade.
