Moroso 20179 Road Race Oil Pan 5.5 Quart Small Block Chevy Steel

The Moroso 20179 Road Race Oil Pan is a high-performance wet sump oil pan engineered for Small Block Chevy engines with superior oil control in demanding racing and street applications. Featuring a 5.5 quart capacity and 7.5-inch deep sump, this steel oil pan delivers reliable lubrication under extreme conditions.

Advanced Baffling Technology:

• Kicked-out sump design with trap door baffling system provides exceptional oil control during acceleration, braking, and cornering
• Trap door baffles open approximately one-third of the way to allow controlled oil flow toward the pickup while preventing oil starvation

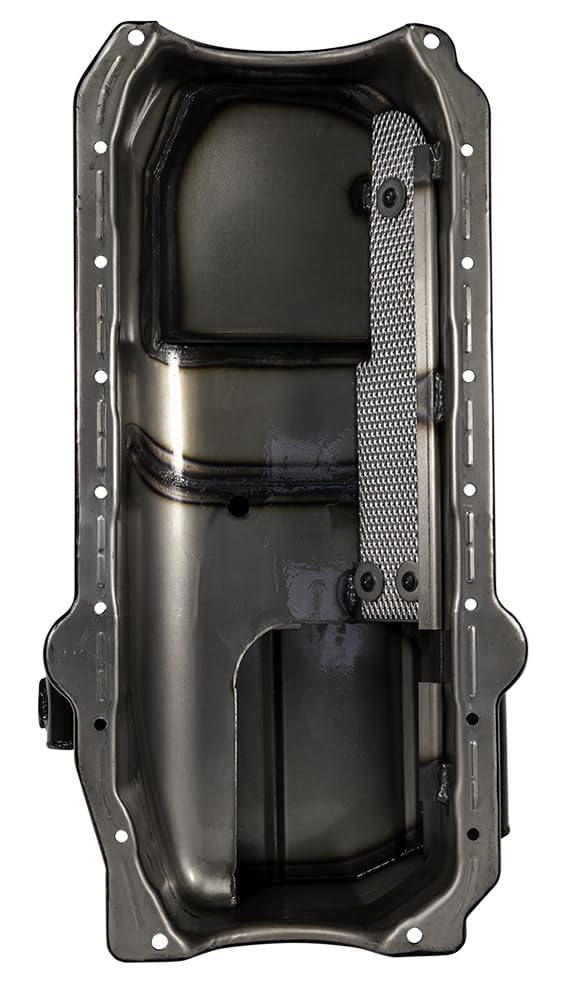

• Removable windage screen helps reduce parasitic horsepower loss and oil aeration
• Horizontal baffle design controls oil movement in forward and backward directions

Engine Compatibility and Clearances:

• Designed for Small Block Chevy engines: Pre-'80 with driver's side dipstick or '80-'85 with passenger-side dipstick
• Compatible with 2-piece rear main seal blocks and Dart SHP engine blocks
• Clears up to 4.125-inch stroke with most steel connecting rods
• Fits 1993-1997 F-Body and Impala chassis

Features and Construction:

• Fabricated steel construction with clear zinc finish for durability and corrosion resistance
• 20mm threaded fitting included for factory oil level sensor (optional plug available separately as Part #22738)
• Magnetic drain plug for capturing metallic debris
• Clears stock exhaust and popular aftermarket headers including Hedman, Hooker, and Borla
• Dipstick provision integrated into design

This oil pan requires a compatible pickup tube (Part #24212 for M55 style pumps or Part #24213 for M55HV style pumps, sold separately). The Moroso 20179 combines proven road racing technology with versatile fitment, making it an excellent choice for drag racing, road racing, and high-performance street applications.
