ACL Bearings 5M1913HX-STD Race Series Main Bearing Set Honda F20C F22C Tri-Metal Extra Clearance

Part of: ACL Bearings Race Series Main Bearings for Big Block Chevy

Other options in this family: ACL Bearings 5M829HXC-STD ACL Bearings 6M5587H-STD ACL Bearings 5M1957HX-STD ACL Bearings 5M909HC-STD ACL Bearings 5M5585H-STD

Manufacturer

Picture for manufacturer ACL Bearings

Part Number

5M1913HX-STD
5 reviews
Sale Price

$89.87

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

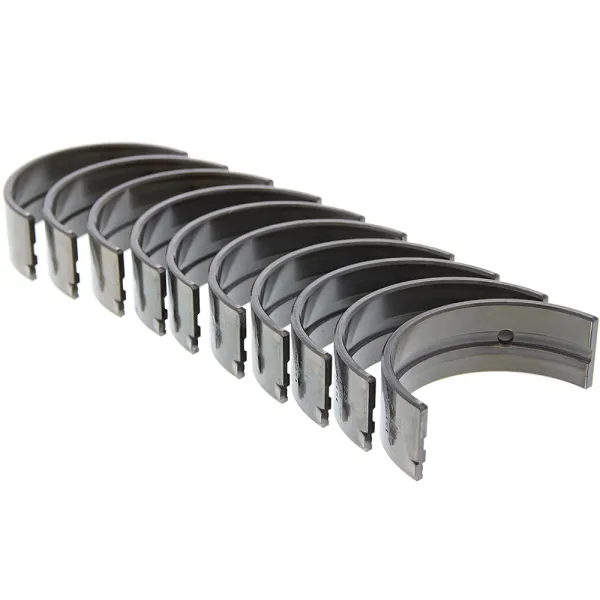

The ACL Bearings 5M1913HX-STD is a high-performance tri-metal main bearing set engineered specifically for Honda F20C and F22C engines found in the S2000. This Race Series bearing set features standard size with an extra 0.001" (0.025mm) oil clearance compared to standard H-series bearings, making it ideal for high-performance and racing applications.

Key Features:

  • Tri-metal construction with high-strength overlay plate and reduced thickness for improved fatigue properties
  • Standard size with HX designation providing extra 0.025mm oil clearance for optimal performance
  • Hardened steel backing for improved support and bearing retention in the housing
  • Elimination of flash plating on bearing backs to maximize heat transfer and improve grip in housing
  • Increased eccentricity to compensate for bore distortion at high RPM
  • 3/4 grooved design to optimize load carrying surface area and oil flow to connecting rod bearings
  • Dark tarnished appearance (black/brown/blue) from final electroplating process - does not affect performance

ACL Race Series bearings are proven in motorsports worldwide, from drift racing to NASCAR, IHRA, and NHRA competitions. The unique combination of design, metallurgy, and engineering delivers the endurance and capability required for high-performance and racing engines. Complete main bearing set includes upper and lower shells.

Products specifications

Max Overall Length

0.787" (20.00mm)

Max Std Shaft Size

2.1654" (55.000mm)

Max Std Tunnel Size

2.3630" (60.020mm)

Max Wall at Crown

0.0981" (2.491mm)

Min Std Shaft Size

2.1644" (54.976mm)

Min Std Tunnel Size

2.3622" (60.000mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
