QA1 CFL10T C Series 2-Piece Carbon Steel Rod End Female Left-Hand 5/8" Bore 5/8"-18 Thread PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CFL10T
4 reviews
Sale Price

$12.79

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CFL10T is a two-piece carbon steel rod end from QA1's C Series, featuring a female mounting configuration with a left-hand thread. Designed for suspension linkages, steering components, and performance chassis applications, this rod end delivers reliable articulation and a high static load capacity in a compact, corrosion-resistant package.

Key Features:

  • PTFE Race Lining: Self-lubricating PTFE liner reduces friction for smooth, low-maintenance operation — no grease fittings required
  • Female Mounting: 5/8" bore with 5/8"-18 left-hand (LH) thread for use in adjustable rod end applications
  • 52100 Bearing Steel Ball: Heat treated, precision ground, and hard chrome plated for maximum durability and wear resistance
  • Carbon Steel Body: Protective coating provides corrosion resistance for long service life
  • High Load Rating: 11,385 lb. static radial load capacity
  • Misalignment Angle: 26° of angular misalignment for flexible installation
  • SAE J1120 Compliant: Manufactured to SAE specification J1120 standards
  • Left-Hand Thread: Enables easy turnbuckle-style length adjustment when paired with a right-hand threaded counterpart

The QA1 CFL10T rod end spherical bearing is a trusted choice for circle track racing, drag racing, street performance, and custom fabrication builds where precise, maintenance-free linkage control is required.

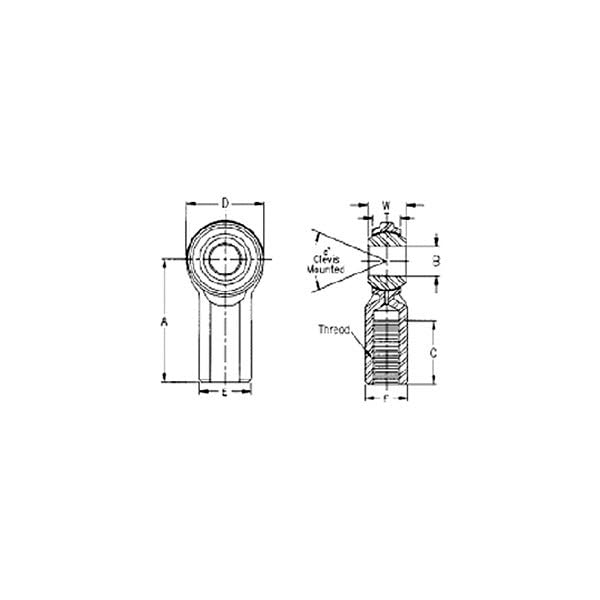

Products specifications

A (+/-0.015)

2.5

Approx Bearing Weight

0.43

B (+0.0025/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.375

D Ref

1.5

E (+/-0.010)

1

F (+/-0.010)

0.875

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

26

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.500 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.750 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

26 degrees

Rod End Static Load Capacity

11,385 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

5/8-18 LH in.

Thread Length

1.375 in.

Thread Type

Left Hand

Thread UNF-2B

5/8 -18

UTL Radical Static

9563

W (+/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing CFL10T
