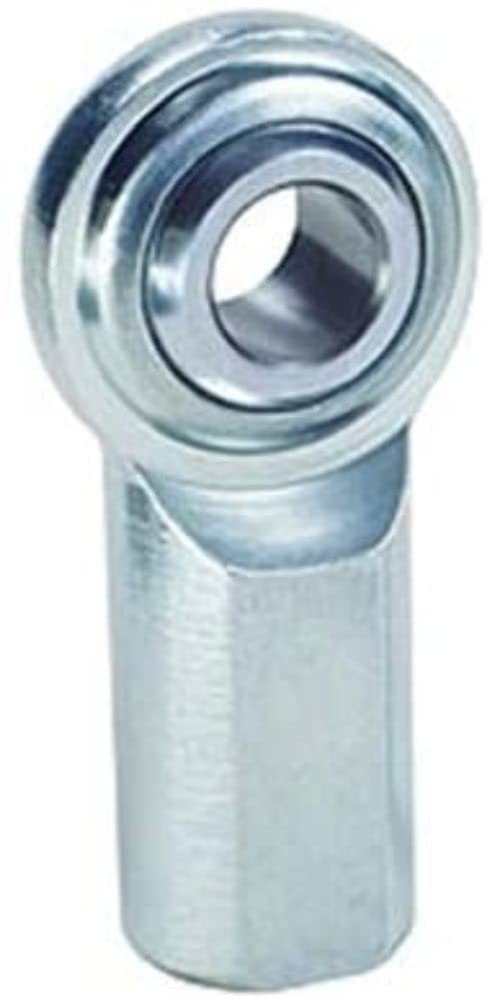

QA1 Precision Products CFL2 Carbon Fiber Rod End Bearing 1/8 Bore Left Hand Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CFL2
7 reviews
Sale Price

$6.40

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products CFL2 is a high-performance two-piece carbon fiber rod end bearing designed for demanding suspension and linkage applications. Part of QA1's C Series line, this rod end features a lightweight yet durable carbon fiber construction that provides excellent strength-to-weight ratio for racing and performance applications.

Key Features:

  • Two-piece carbon fiber construction for reduced weight and increased strength
  • Female mounting configuration with 1/8-inch bore diameter
  • Left-hand 1/8-inch thread for adjustable linkage applications
  • Self-lubricating carbon fiber liner reduces friction and eliminates maintenance
  • High misalignment capability for suspension articulation
  • Ideal for racing, off-road, and high-performance street applications

QA1's C Series rod ends are engineered to handle the extreme loads and articulation requirements of motorsports while maintaining smooth operation throughout their service life. The carbon fiber bearing surface provides consistent performance in demanding environments without the need for regular lubrication.

Products specifications

A (+/-0.015)

0.812

Approx Bearing Weight

0.02

B (+0.0025/-0.0005)

0.125

Ball Dia Ref

0.312

C (+0.062/-0.031)

0.437

D Ref

0.5

E (+/-0.010)

0.312

F (+/-0.010)

0.25

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.250 in.

Rod End Centerline Length

0.812 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.125 in.

Rod End Head Diameter

0.500 in.

Rod End Head Width

0.250 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

1,510 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

6-32 LH in. UNC

Thread Length

0.437 in.

Thread Type

Left Hand

Thread UNF-2B

6-32 UNC

UTL Radical Static

1510

W (+/-0.005)

0.25
