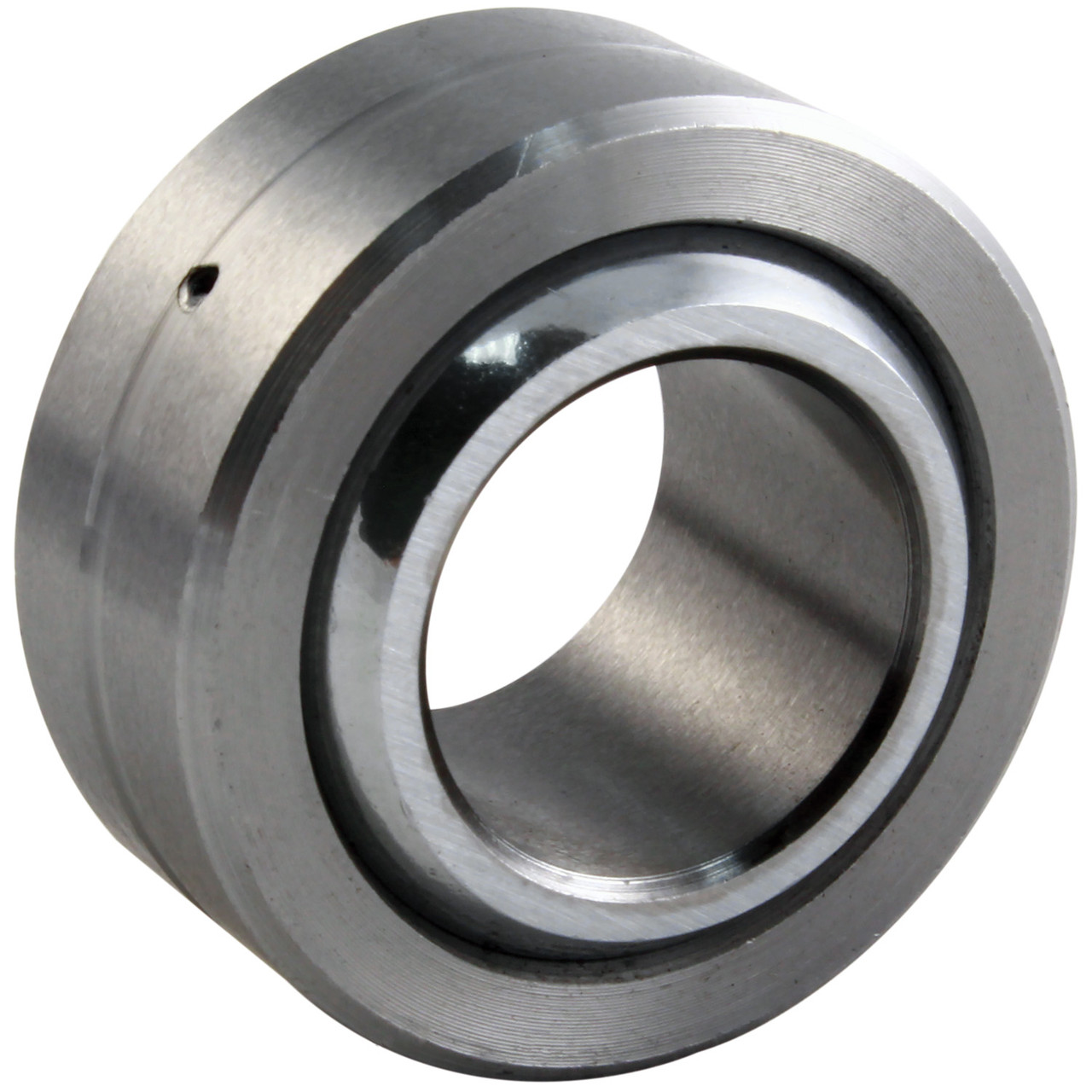

QA1 Precision Products COM14 Commercial Series Spherical Bearing 7/8 Inch Bore

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

COM14
4 reviews
Sale Price

$12.09

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 COM14 is an economical traditional spherical bearing from QA1's COM Commercial Series, designed for suspension linkage and general-purpose applications where reliable articulation is required. This bearing features a 7/8-inch (0.875 in) bore diameter and a 1.563-inch outer diameter, making it suitable for a wide range of automotive, racing, and industrial applications.

Construction and Materials:

  • Ball constructed from 52100 bearing steel that is heat treated, hard chrome plated, and precision ground
  • Race made from chromoly steel, heat treated with protective coating for corrosion resistance
  • Metal-to-metal contact design (requires periodic lubrication)
  • Maximum misalignment angle of 9.5 degrees

Key Specifications:

  • Bore diameter: 0.8750 inches
  • Outside diameter: 1.5625 inches
  • Inner ring width: 0.8750 inches
  • Outer ring width: 0.7030 inches
  • Radial static load capacity: 62,940 lbf

The COM14 is ideal for custom suspension links, panhard bars, trailing arms, and other articulating linkages where high load capacity and durability are essential. The COM Series does not include a PTFE liner (for self-lubricating applications, see the COM-T Series). This bearing is sold individually and requires periodic greasing for optimal performance and longevity.

Products specifications

Approx Bearing Weight

0.26

B (+0.0015/-0.005)

0.875

Ball Dia Ref

1.312

Chamfer Reference

0.044 in.

D (+0.0000/-0.0007)

1.5625

Inner Ball Diameter (in.)

0.8750 in.

Inner Ball Width (in.)

0.875 in.

M Cham Ref

0.035

Misalign Angle

9.5

O Flat Dia Ref

0.978

Quantity

Sold individually.

Race Width (in.)

0.703 in.

Receiver Race Diameter (in.)

1.5625 in.

Rod End Ball Diameter (in.)

1.312 in.

Rod End Bearing Material

Steel

Rod End Misalign Angle (degrees)

9.5 degrees

T (+/-0.005)

0.703

ULT. Static Radial Load (lbs.)

62,940 lbs.

UTL Radical Static

62940

W (+/-0.005)

0.875
