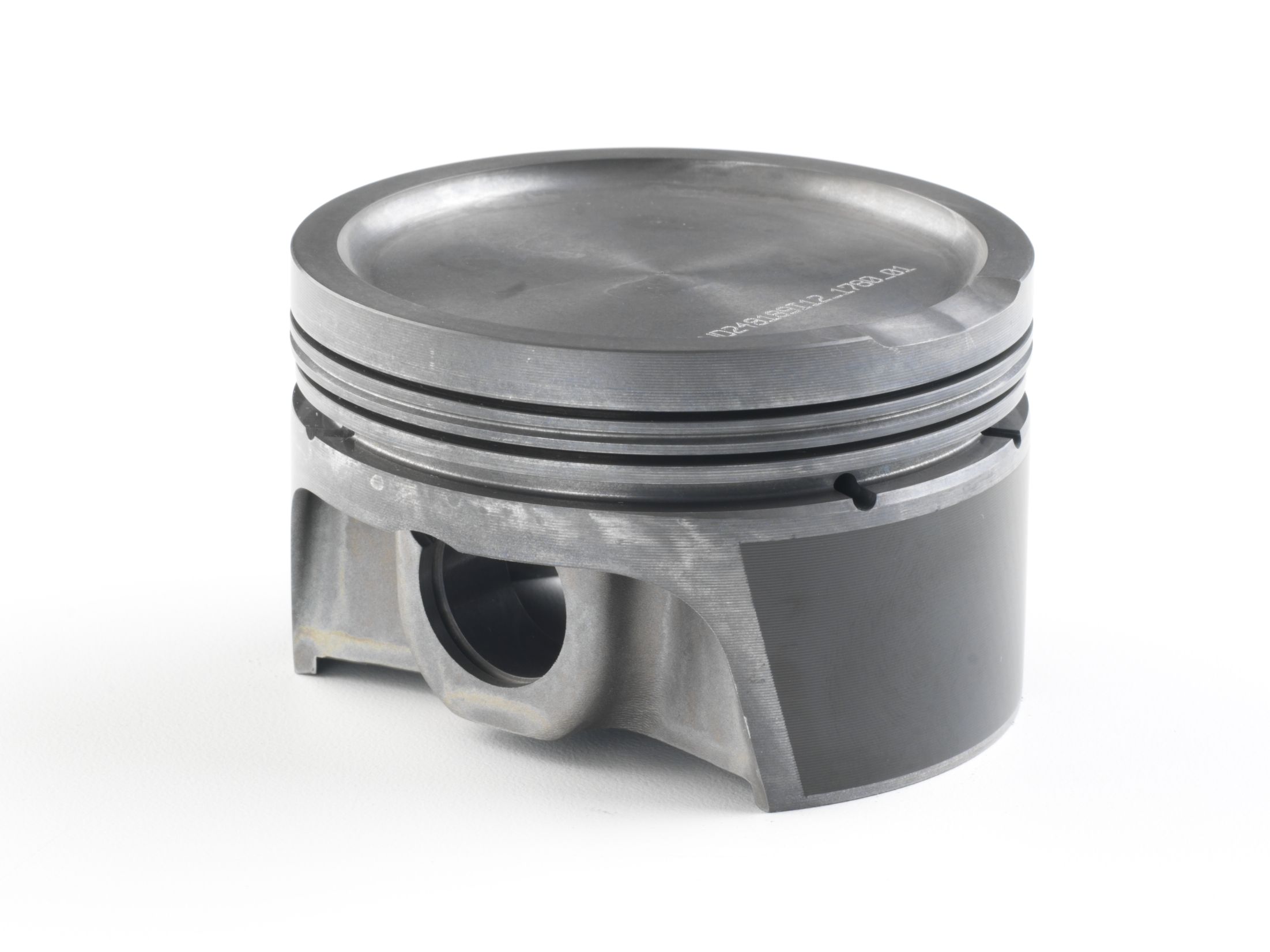

MAHLE 930070509-1 PowerPak Forged Piston 81.5mm Bore 9.0:1 CR Audi VW 2.7T 30V Single

Manufacturer

Part Number

930070509-1
Black Friday Price

$147.38

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930070509-1 is a single PowerPak forged performance piston engineered for the Volkswagen/Audi B5 S4 2.7L 6-cylinder 5-valve biturbo (30V) engine. Built from 4032 aluminum-silicon alloy, this piston delivers an ideal balance of strength, thermal stability, and low weight — making it well-suited for high-performance street builds and mild forced-induction applications.

This piston features an 81.50mm bore diameter with a 30.7mm compression height, designed to work with an 86.4mm stroke and 154mm connecting rod. The 21mm wrist pin bore is compatible with performance connecting rods commonly used in Audi 2.7T engine builds. At a 9.0:1 compression ratio with a -7.2cc dome volume, this piston is tuned for turbocharged power delivery. Piston weight is a lightweight 295 grams.

Key Features:

  • 4032 Aluminum-Silicon Alloy: High-silicon content alloy allows for tighter cylinder-to-wall clearances and improved temperature stability compared to standard cast pistons
  • Grafal® Anti-Friction Skirt Coating: MAHLE's proprietary coating reduces drag, scuffing, friction, and cylinder bore wear while also lowering piston noise
  • Phosphate Coating: Dry lubricant film applied to pin bores and ring grooves to prevent microwelding and galling during initial engine start-up and break-in
  • Slipper Skirt Forging: Strong, lightweight, low-drag forging design superior to traditional full-round piston skirts
  • Hard Anodized Top Ring Groove: Provides added protection against ring groove microwelding in extreme-duty applications
  • Specifications: 81.50mm bore | 30.7mm compression height | 86.4mm stroke | 154mm rod length | 21mm pin diameter | -7.2cc dome | 295g | 9.0:1 CR
  • Sold as a single piston — order the required quantity for your application (6 required for a full set)

The MAHLE PowerPak line is MAHLE Motorsport's high-volume shelf-stock program developed for high-performance enthusiasts and sportsman-class racers. MAHLE's OE-level engineering expertise is built into every piston, delivering race-proven reliability for turbocharged builds.

Products specifications

Piston Ring Thickness

1.0mm, 1.2mm, 2.8mm

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Style

Floating

Piston Material

Forged, 4032

Piston Mass

295g

Clip Style

Round Wire

Pin Material

Steel
