ICON Vehicle Dynamics K93152 Stage Suspension System Ford Raptor Lift - 2 2017-2020 1-3

(2017-2021 Ford F-150; 2015-2019 Subaru Legacy; 2013-2020 Subaru BRZ)

Manufacturer

Part Number

K93152
Black Friday Price

$7,990.00

$9,400.00 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

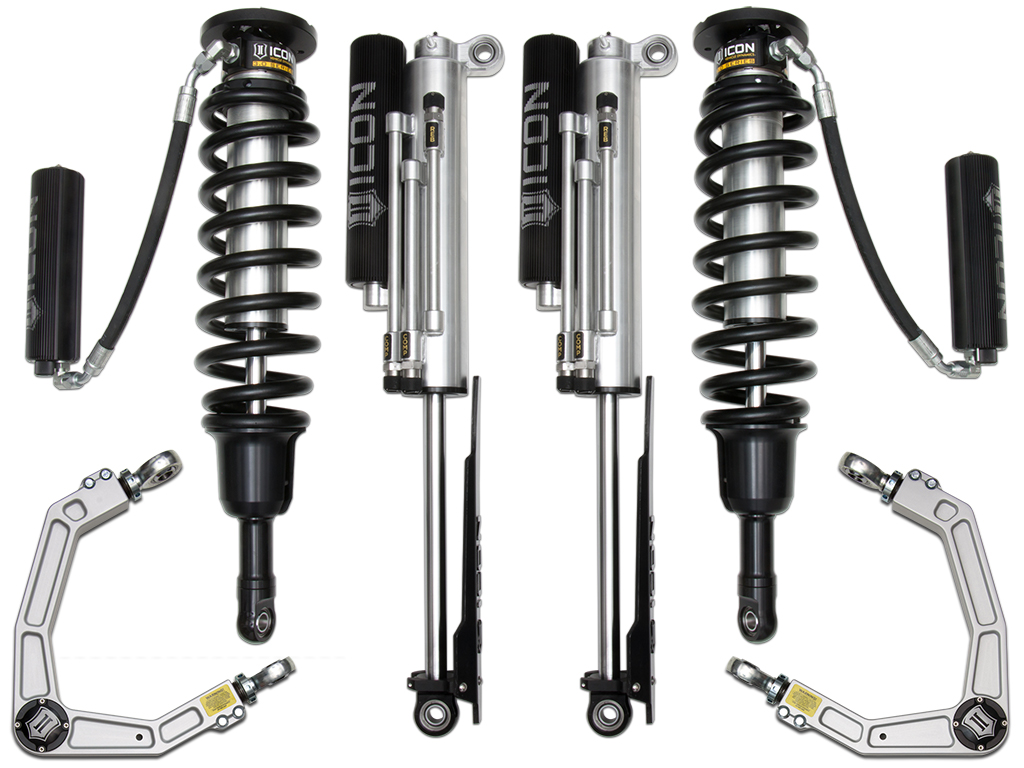

The ICON Vehicle Dynamics Stage 2 Suspension System for 2017-2020 Ford F150 Raptor delivers a comprehensive performance upgrade engineered to maximize wheel travel, enhance ride quality, and provide exceptional control both on and off-road. This complete system features advanced 3.0 Series coilovers with adjustable 1-3" lift capability, 3.0 Series rear bypass shocks, and billet aluminum upper control arms with integrated caster correction.

Front 3.0 Series Coilover Shock System:

  • Adjustable ride height providing 1-3" of front lift with increased wheel travel over stock
  • Vehicle-specific valving and ICON-engineered barreled coil springs for superior on-road comfort and off-road performance
  • Multi-stage hydraulic Bump Zone technology delivers exponential damping increase during final 40% of compression travel for excellent bottom-out resistance
  • 50% increase in damping ability compared to factory shocks with larger piston design
  • 10" finned aluminum reservoirs provide over 200% more surface area for enhanced cooling and consistent damping performance
  • CDC Valve (Compression Damping Control) with 10 adjustment settings allows tuning for different terrain and cargo configurations

Rear 3.0 Series Bypass Shock System:

  • Custom offset upper eyelet design maximizes available wheel travel while utilizing factory shock mounts
  • Three unique bypass zones (2 compression, 1 rebound) provide precise control through entire range of travel
  • Damped valve stops deliver quiet, precise operation without loud bypass clicks
  • Tool-free adjustment knobs enable quick shock tuning changes with minimal downtime
  • Patented Anti-Wobble Link stabilizes shocks to prevent rotation and potential collision
  • Urethane shin guards protect shock shafts and rod ends in harsh off-road conditions

Billet Aluminum Upper Control Arms:

  • Built-in caster correction ensures predictable handling characteristics
  • On-vehicle camber and caster adjustment for precise alignment
  • Patented Delta Joint technology combines durability of ball joints with performance of uniball design
  • Zinc-plated housing with grease seals provides superior corrosion resistance and protection from elements
  • Greasable metal-on-metal construction ensures long service life and noise-free operation
  • Greater articulation angle than conventional ball joints with better durability than exposed uniballs

Holistic Engineering Approach:

ICON's comprehensive system design philosophy evaluates the entire vehicle to identify strengths, weaknesses, and performance targets. Every component is engineered to work together as an integrated system, addressing OE limiting factors to deliver balanced on and off-road performance improvements. Extensive R&D and thousands of real-world testing miles ensure this Stage 2 system provides a true performance upgrade over factory components.

Designed, manufactured, and assembled in Riverside, California by passionate off-road enthusiasts, ICON Vehicle Dynamics products are backed by a reputation for quality, performance, and exceptional customer service. This complete Stage 2 Suspension System represents the pinnacle of performance suspension engineering for the Gen. 2 Ford Raptor platform.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2017-2021 Ford F-150; 2015-2019 Subaru Legacy; 2013-2020 Subaru BRZ

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
