ICON Vehicle Dynamics 95002 Front 3.0 VS Remote Reservoir CDCV Coilover Kit

(2017-2021 Ford F-150; 2018-2023 Toyota Camry; 2015-2019 Subaru Outback)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

95002
7 reviews
Sale Price

$3,816.10

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

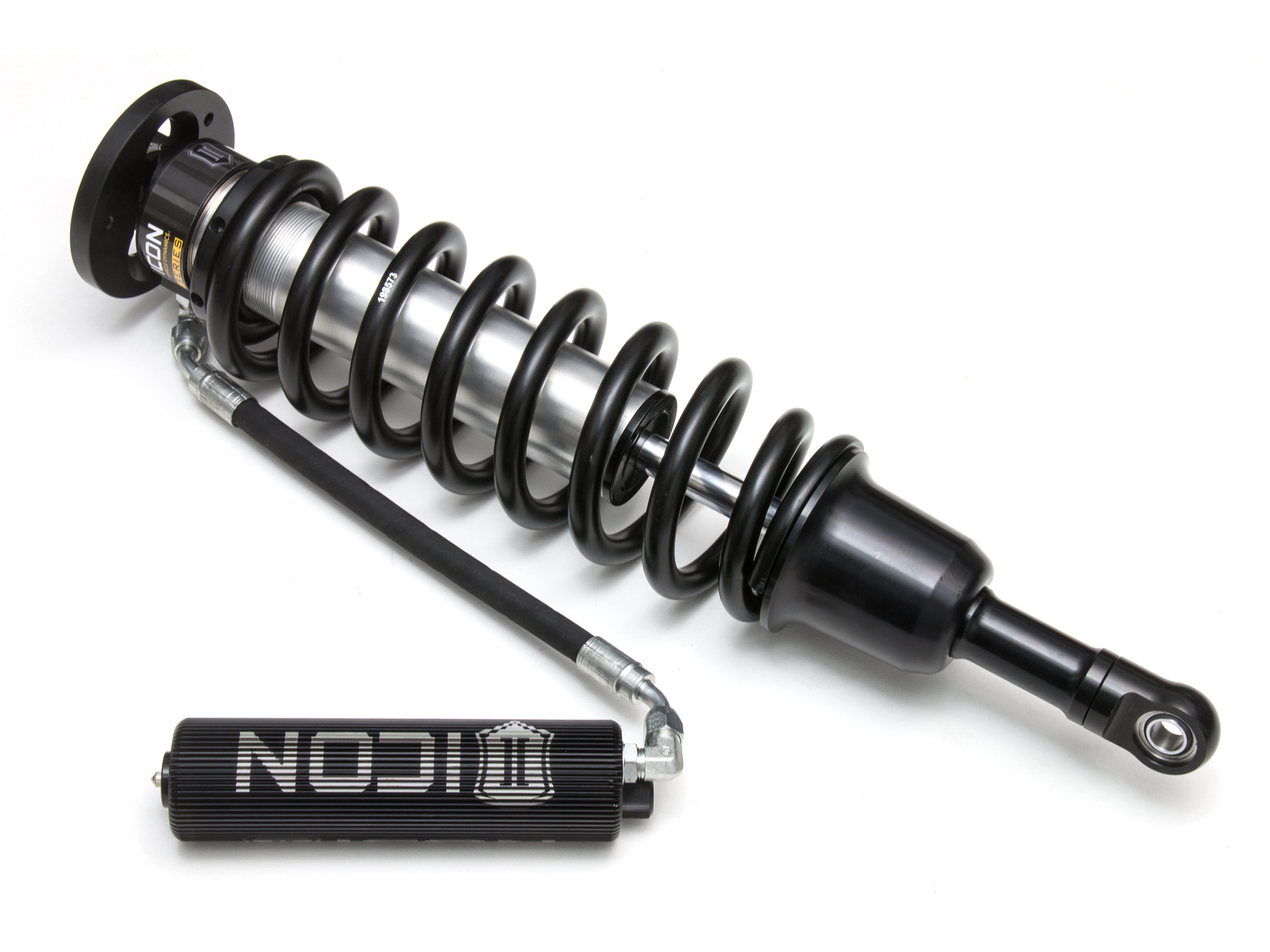

The ICON Vehicle Dynamics 95002 coilover kit is engineered specifically for 2017-2020 Ford Raptor Gen 2 trucks, delivering exceptional performance for both street driving and extreme off-road use. This front suspension upgrade features 3.0-inch diameter remote reservoir coilovers with advanced CDCV (Compression Damping Control Valve) technology and ICON's proprietary multi-stage hydraulic bump zone.

Key Features:

  • Adjustable lift height from 1 to 3 inches in the front
  • 3.0-inch diameter coilovers with remote reservoirs for superior heat dissipation
  • CDC Valve with 10 compression damping settings for customizable ride characteristics
  • 50% increase in damping ability over OEM shocks with larger piston design
  • Multi-stage hydraulic Bump Zone provides exponential bottom-out resistance in the last 40% of travel
  • 10-inch finned aluminum reservoirs for enhanced cooling and consistent performance
  • Vehicle-specific valving optimized for Gen 2 Raptor geometry
  • Barreled coil spring design for efficient packaging and increased shaft travel
  • Increased wheel travel for improved off-road capability

Performance Benefits:

These coilovers are designed to take advantage of the Gen 2 Raptor's higher shock mounting points, allowing for greater suspension travel compared to the previous generation. The vehicle-specific valving works in harmony with ICON-engineered springs to provide exceptional ride quality on the street while maintaining aggressive off-road performance. The 10-position CDC adjustment allows drivers to fine-tune compression damping for different terrain types, driving styles, and cargo loads—from daily commuting to high-speed desert running.

The larger piston design and increased oil capacity ensure consistent damping performance even during extended off-road sessions. ICON's Bump Zone technology prevents harsh bottoming while maintaining a supple ride in normal driving conditions.

What's Included:

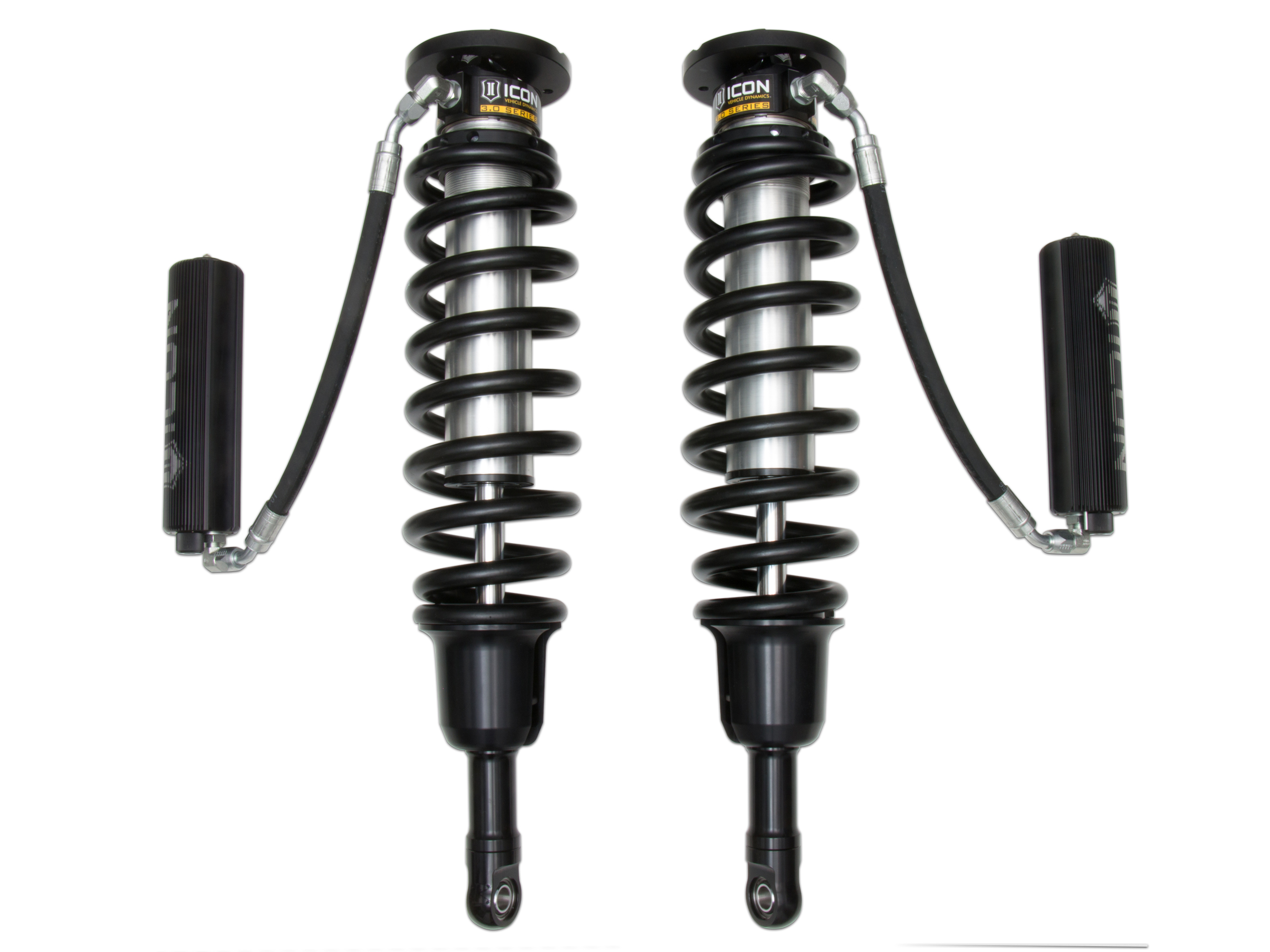

Complete front coilover kit with pair of 3.0 Series remote reservoir coilovers with integrated CDCV adjusters, barreled coil springs, and all necessary mounting hardware.

Warranty: 1 year manufacturer warranty

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2017-2021 Ford F-150; 2018-2023 Toyota Camry; 2015-2019 Subaru Outback

Body Diameter

3

Grade Type

Performance

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Coil Over Springs Included

Yes

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point

Center of Eylet

Adjustable Damping

Yes

Damping Type

Gas

Shaft Diameter

1

Upper Mount Type

Mounting Plate

Service Parts

252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Remote Reservoir

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Service Parts

254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Boot Included

No

Lower Mount Type

Eyelet

Damping Type

Oil

Dust Shield

No

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

Recommended Aftermarket Tires

35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Service Parts

611019 - COILOVER HARDWARE KIT PAIR

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset

Spring Material

Steel

Adjustable Height

yes

Gas Charged

Yes

Adjustable

Yes

Service Parts

252003 - SEAL INSTALL TOOL 2.5/3.0

OEM Wheels & Tires Fitment

Yes

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT
