ICON Vehicle Dynamics K93153 Stage 3 Suspension System 2017-2020 Ford Raptor 1-3" Lift

(2017-2021 Ford F-150; 1982-1985 Toyota Celica Supra; 2011 Saab 9-5)

Manufacturer

Part Number

K93153
Black Friday Price

$9,540.15

$11,223.70 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

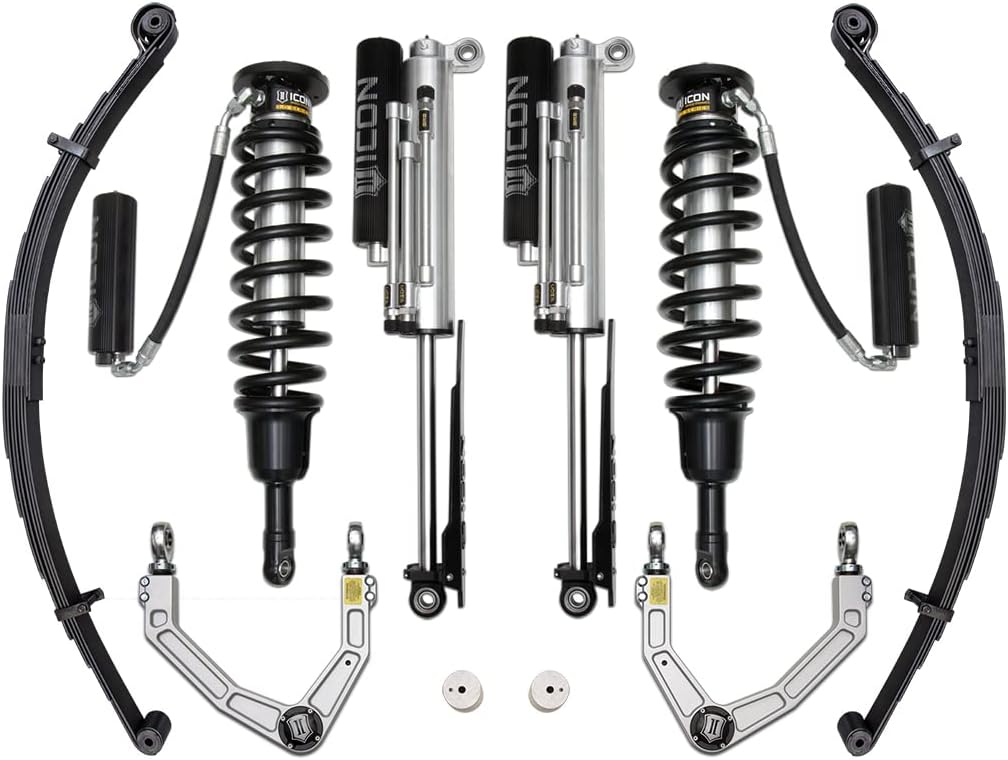

The ICON Vehicle Dynamics Stage 3 Suspension System represents the pinnacle of performance engineering for the 2017-2020 Ford F-150 Raptor. After hundreds of hours of R&D and thousands of miles of real-world testing, ICON engineers developed this comprehensive suspension upgrade to maximize wheel travel, improve ride quality, and push the Gen 2 Raptor beyond factory limitations.

3.0 Series Front Coilovers:

  • Adjustable ride height from 1-3 inches of front lift
  • Increased shaft travel with barreled coil spring design for efficient packaging
  • Multi-stage hydraulic "Bump Zone" provides exponential damping increase during final 40% of compression travel for superior bottom-out resistance
  • 50% increase in damping ability over factory shocks with significantly larger piston
  • 10-inch finned aluminum reservoirs offer over 200% more surface area for enhanced cooling and consistent performance
  • CDC Valve (Compression Damping Control) technology with 10 adjustable settings for custom tuning across varying terrain and cargo loads
  • Vehicle-specific valving delivers exceptional on-road comfort with outstanding off-road capability

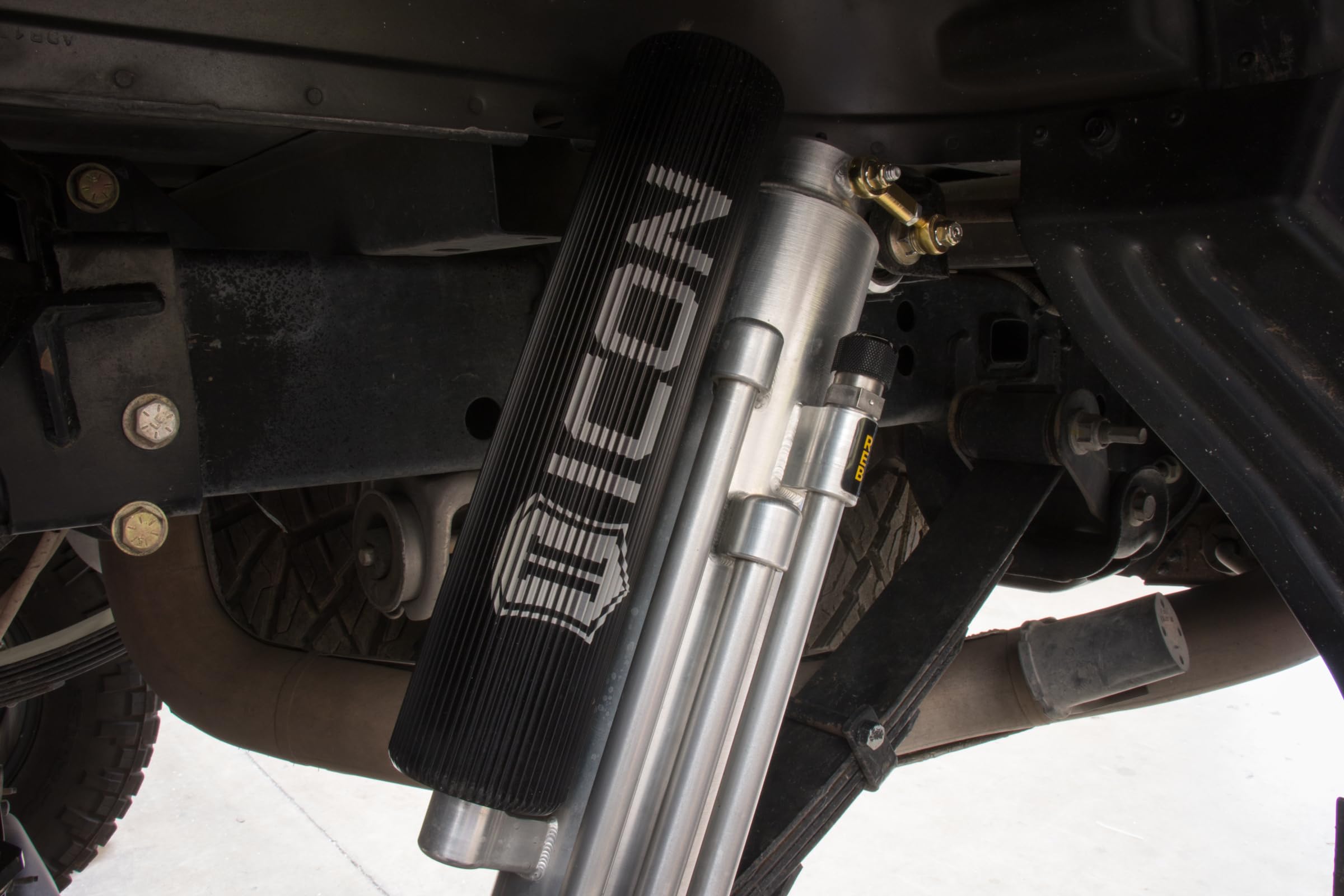

3.0 Series Rear Bypass Shocks:

  • Offset upper eyelet design maximizes available wheel travel while utilizing factory shock mounts
  • Three unique bypass zones (two compression, one rebound) for precise control across specific travel ranges
  • Damped valve stops for quiet, precise operation without loud bypass "click"
  • Tool-free adjustment knobs enable quick tuning changes with minimal downtime
  • Patented Anti-Wobble Link stabilizes shocks to prevent rotation and collision
  • Urethane shin guards protect shock shafts and rod ends during aggressive off-road use

Billet Aluminum Upper Control Arms:

  • Built-in caster correction for predictable handling characteristics
  • On-vehicle camber and caster adjustment for precise alignment
  • Patented Delta Joint combines ball joint durability with uniball performance characteristics
  • Zinc-plated housing with robust grease seal provides superior corrosion resistance and environmental protection
  • Metal-on-metal construction with greasable design ensures longevity and noise-free operation
  • Greater angularity than traditional ball joints with more durability than standard uniballs

User-Adjustable Multi-Rate Rear Leaf Springs:

  • Lighter spring rate than factory for improved ride quality and additional droop travel on choppy terrain
  • Includes optional additional leaf that can be exchanged or added to increase spring rate by 20% or 40% for heavier vehicle configurations
  • Significantly reduces axle wrap while adding strength and durability
  • Addresses factory stiffness issues found during extensive R&D testing

Holistic Engineering Philosophy:

Unlike competitors who focus on individual components, ICON engineers evaluate the entire vehicle system to identify strengths, weaknesses, and performance targets. This Stage 3 system features components designed to work together as a balanced performance upgrade, addressing factory limiting factors from front to rear. All components are designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts committed to quality, performance, and service.

The Stage 3 Suspension System provides the ultimate performance upgrade for Raptor owners seeking maximum capability both on and off-road, backed by ICON's comprehensive warranty and reputation for excellence.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2017-2021 Ford F-150; 1982-1985 Toyota Celica Supra; 2011 Saab 9-5

Bushings Included

Yes

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Maximum Lift

3

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Leaf Spring Leaf Quantity

8

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset

OEM Wheels & Tires Fitment

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
