MAHLE 930239610 Elite Sportsman Forged Dome Piston Set Big Block Chevy 4.610 Bore 584ci 2618 Alloy

Manufacturer

Part Number

930239610
Black Friday Price

$976.40

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

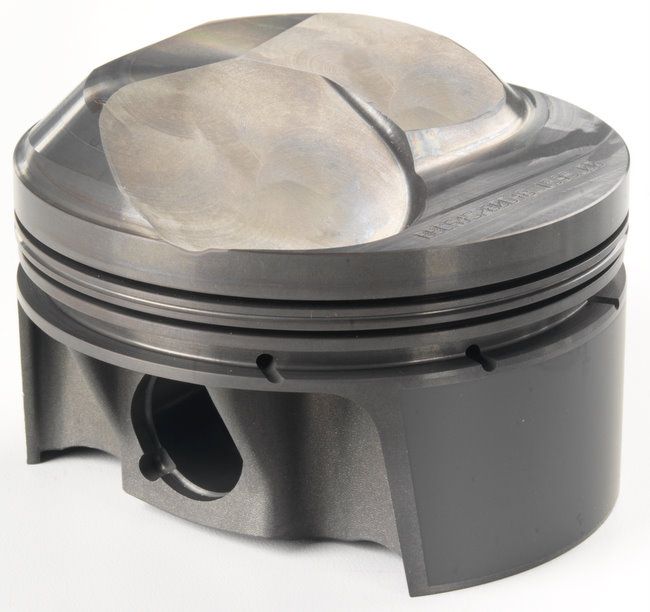

The MAHLE 930239610 Elite Sportsman Drag Series Piston Set is a purpose-built, race-proven forged piston assembly designed specifically for high-displacement Big Block Chevy bracket racing applications.

Forged from 2618 aluminum alloy, these pistons provide superior detonation resistance and durability under extreme racing conditions. The true slipper skirt, externally strutted design reduces reciprocating mass while maintaining structural integrity. Lateral gas ports, advanced pin bore geometry, and precision ovality profiling further optimize ring seal and power output.

Key Specifications:

  • Engine Displacement: 584 cubic inches
  • Bore Diameter: 4.610 in.
  • Stroke: 4.375 in.
  • Rod Length: 6.535 in.
  • Compression Height (RCH): 1.060 in.
  • Wrist Pin Diameter: 0.990 in.
  • Dome Volume: +47cc
  • Piston Weight: 624 grams each
  • Compression Ratio: 16.1:1
  • Alloy: 2618 aluminum forging
  • Ring Grooves: 0.043 x 0.043 x 3.0 mm

Key Features:

  • Dual coating system — phosphate dry lubricant protects pin bores and ring grooves during initial startup and break-in
  • Proprietary Grafal anti-friction skirt coating reduces piston-to-wall drag
  • Lateral gas ports for improved ring seal and reduced blowby
  • CNC precision-machined pin bores for consistent fit and reduced friction
  • Forced pin oiler design for enhanced wrist pin lubrication
  • Advanced slipper skirt and strutted forging for lightweight, high-strength performance
  • Compatible with popular Big Block Chevy cylinder heads

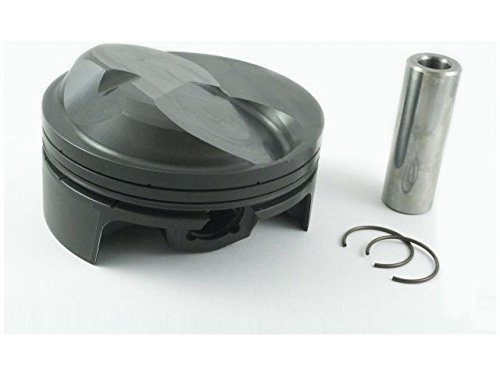

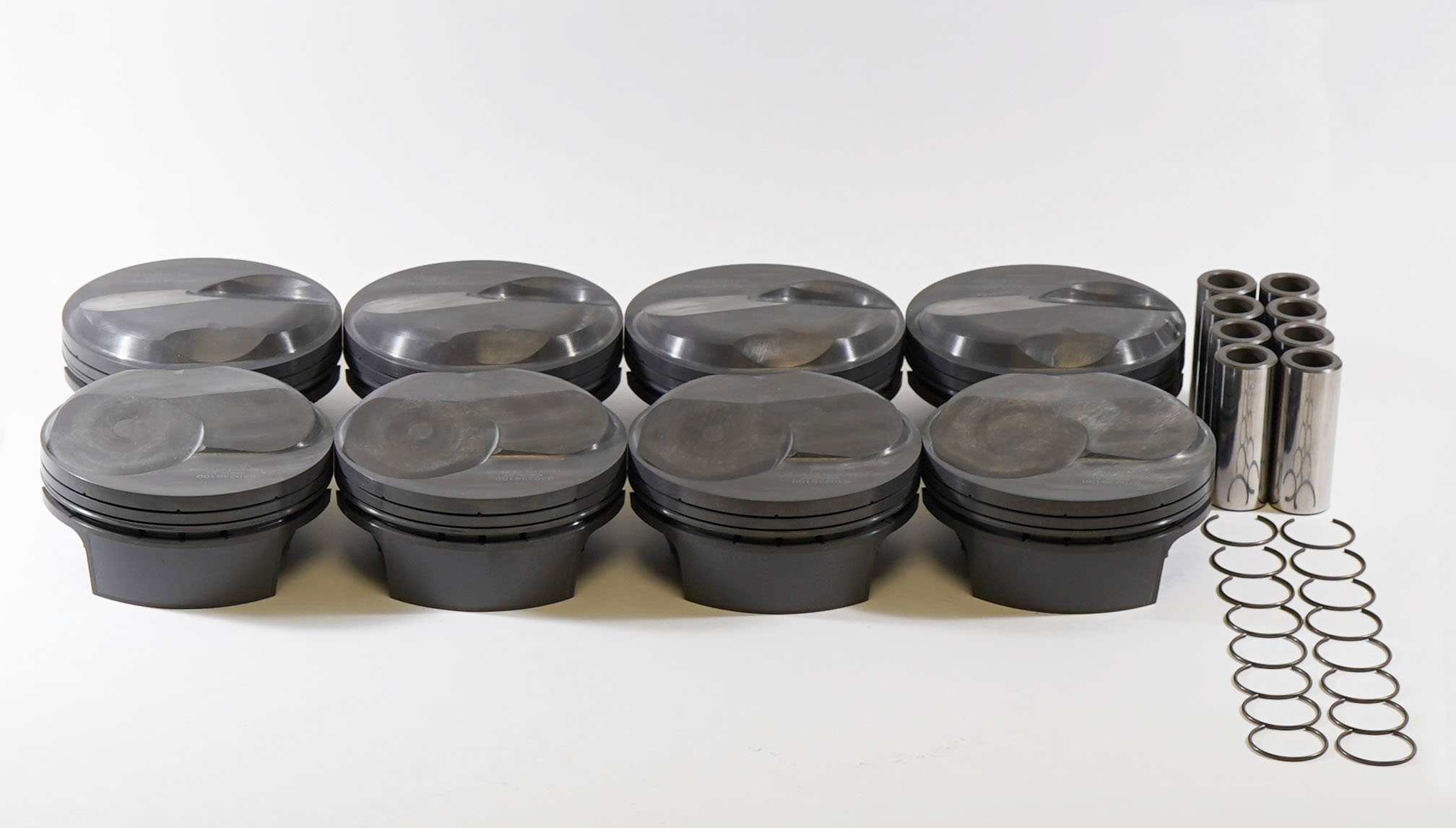

  • 8 forged 2618 alloy dome-top pistons
  • 0.990 in. high-quality steel wrist pins (145g each)
  • Race-proven round wire locks (circlips)

Note: Performance file-fit ring set (0.043 x 0.043 x 3.0 mm) is sold separately.

Products specifications

Piston Kit Quantity

Sold as a set of 8

Clips Included

Yes

Rings Included

No

Clip Style

Round Wire

Piston Mass

623g

Pin Diameter

0.99

Piston Material

Forged, 2618

Piston Ring Thickness

.043, .043, 3.0mm

Lateral Gas Ports

Yes

Crown Vol

47.0cc

Piston Style

Dome, With INT valve relief

Pin Style

Floating

Coatings

Phosphate plus Grafal

Pins Included

Yes

Pin Material

Steel

Prop 65
