MAHLE 930239100 Elite Sportsman Drag Series PowerPak+ Piston Set Big Block Chevy 565ci 2618 Alloy

Manufacturer

Part Number

930239100
Black Friday Price

$976.02

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

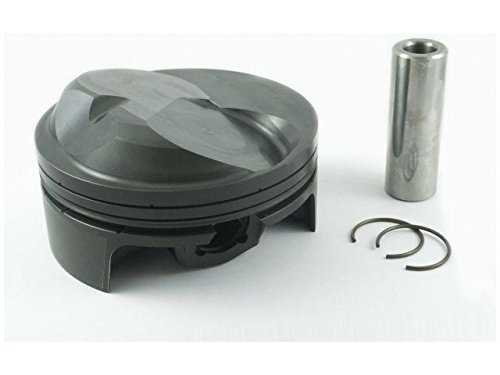

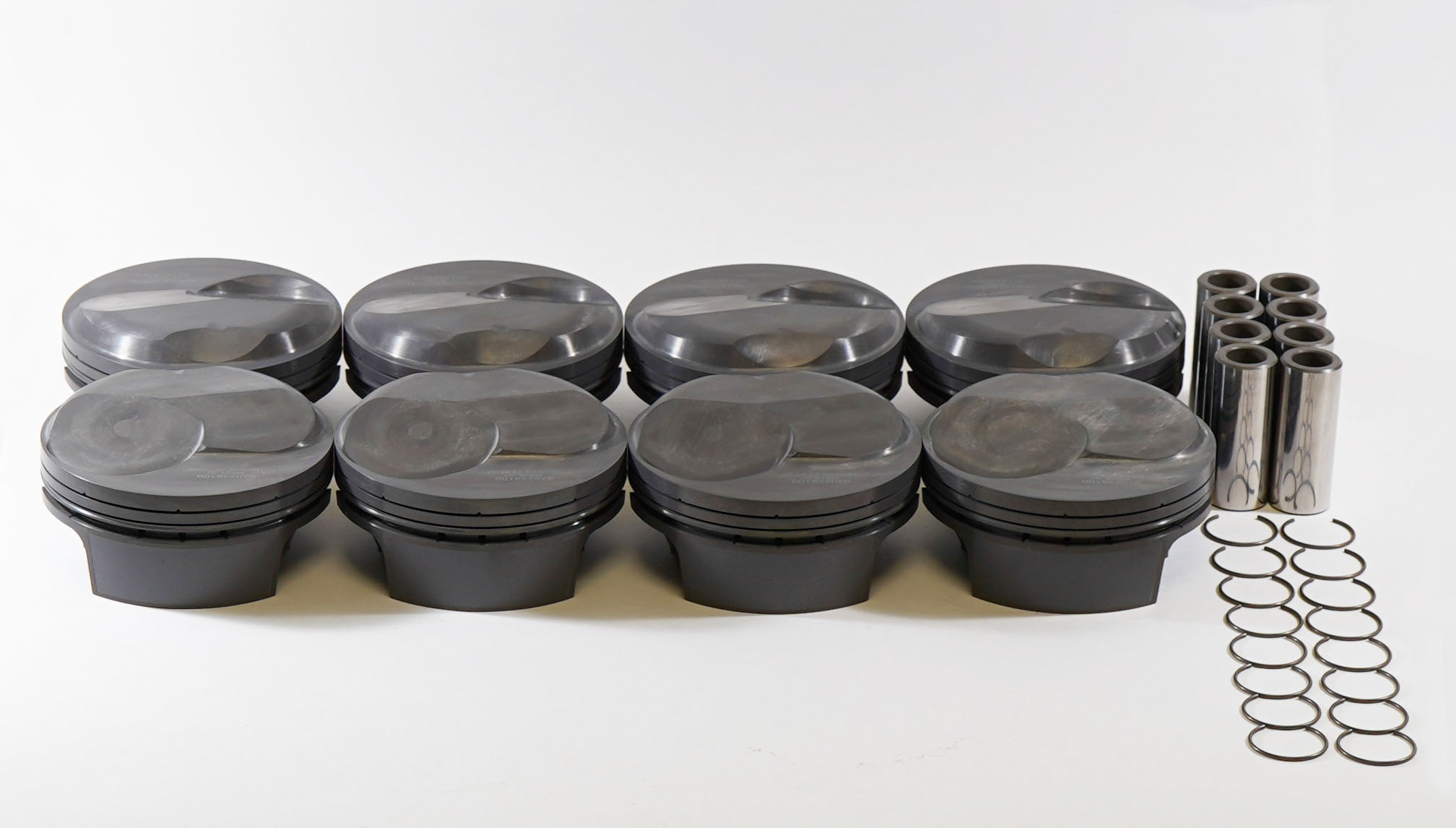

The MAHLE 930239100 is an Elite Sportsman Drag Series PowerPak+ forged piston set designed for Big Block Chevy engines displacing 565 cubic inches. Built from race-proven 2618 aluminum alloy, these pistons are engineered for maximum detonation resistance and durability in high-output drag racing and competition applications. Each set includes 8 pistons precision-machined to exacting tolerances for consistent performance across all cylinders.

Key Specifications:

  • Bore: 4.600 in.
  • Stroke: 4.250 in.
  • Rod Length: 6.535 in.
  • Compression Height: 1.120 in.
  • Pin Diameter: 0.990 in.
  • Dome Volume: +42cc
  • Piston Weight: 618 g each
  • Compression Ratio: 14.2:1
  • Ring Grooves: 0.043 x 0.043 x 3 mm
  • Alloy: 2618 aluminum

Key Features:

  • Slipper Skirt Forging: Externally strutted, true slipper skirt design delivers strength while minimizing reciprocating weight and drag — superior to traditional full-round forgings
  • Lateral Gas Ports: Race-spec feature that improves ring seal at high RPM and under extreme cylinder pressures
  • Grafal® Anti-Friction Skirt Coating: MAHLE's proprietary coating reduces friction, scuffing, cylinder bore wear, and piston noise
  • Phosphate Dry Lubricant Coating: Protects ring grooves and pin bores from micro-welding and galling during initial engine start-up and break-in
  • Advanced Pin Bore, Profile & Ovality Geometries: Precision-engineered for optimal fit, reduced noise, and consistent power delivery
  • Machineable Crown: Dome can be machined to fine-tune compression ratio to build requirements

The MAHLE Elite Sportsman Drag Series PowerPak+ piston set is the choice of serious engine builders competing in bracket racing, Pro Stock, and other high-performance drag racing classes. Backed by MAHLE's deep motorsport heritage and used by top professional race teams worldwide, the 930239100 delivers uncompromising reliability at the compression ratios and cylinder pressures demanded by today's competitive Big Block Chevy builds.

Products specifications

Piston Material

Forged, 2618

Rings Included

No

Lateral Gas Ports

Yes

Coatings

Phosphate plus Grafal

Crown Vol

42.0cc

Piston Mass

619g

Piston Ring Thickness

.043, .043, 3.0mm

Pin Style

Floating

Pins Included

Yes

Pin Diameter

0.99

Clips Included

Yes

Piston Kit Quantity

Sold as a set of 8

Clip Style

Round Wire

Piston Style

Dome, With INT valve relief

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
