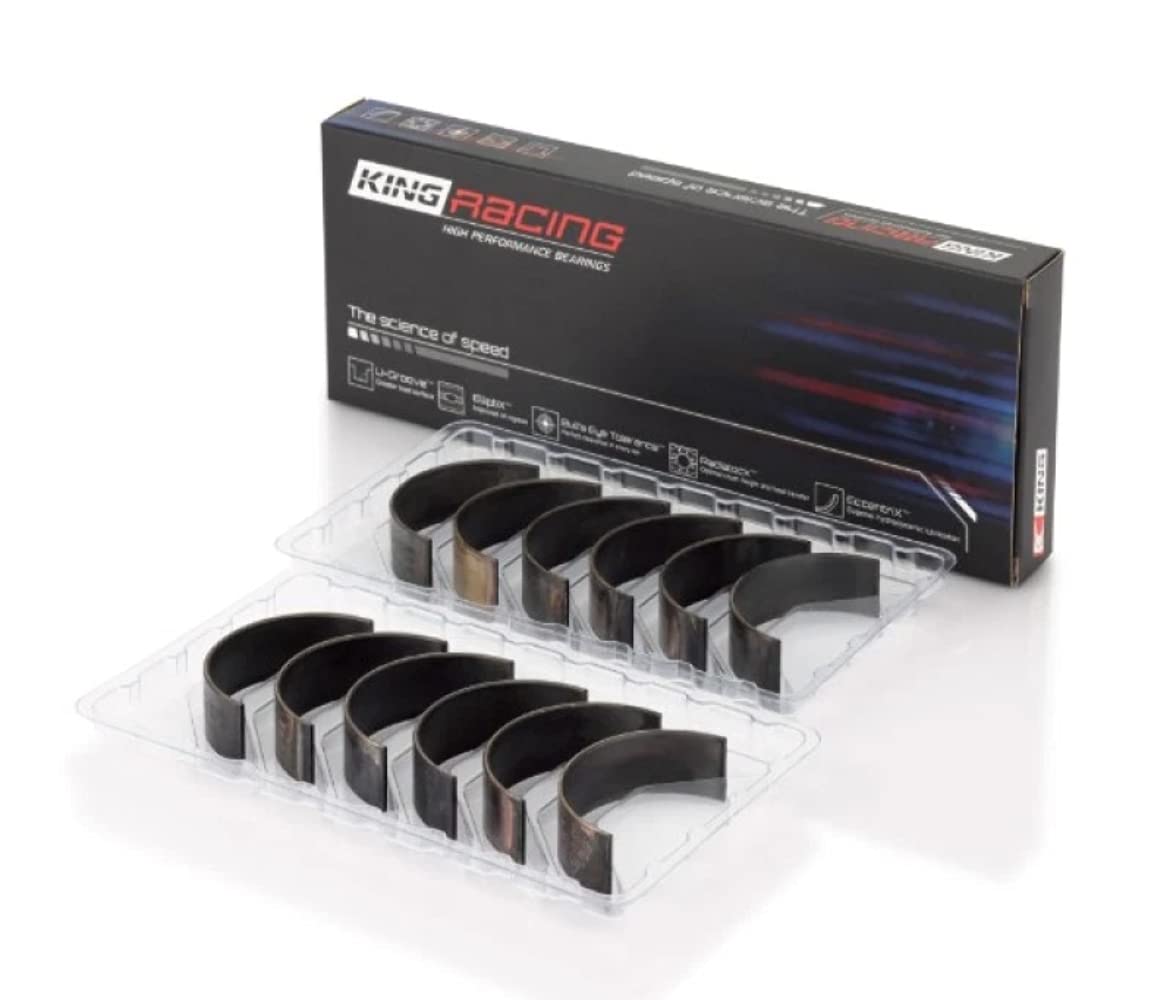

King Engine Bearings CR6676XP.026 XP Series Connecting Rod Bearing Set Nissan VG30DETT .026 Oversize

(Nissan Frontier 1999-2004, Pathfinder 1987-2000, Xterra 2000-04, Maxima 1985-94, 300ZX 1984-96, D21 1986-94, Pickup 1995, Quest 1993-2002 + 5 more models)

Manufacturer

Part Number

CR6676XP.026
Black Friday Price

$91.73

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Engine Bearings CR6676XP.026 is a high-performance XP Series connecting rod bearing set engineered for the Nissan VG30DETT and VG30DE 24-valve engine family. This .026 oversize set is purpose-built for performance and racing applications demanding maximum load capacity and durability at elevated RPM.

XP Series with pMax Black™ Tri-Metal Technology:

  • pMax Black™ overlay – features 5% copper content with a nano-scaled hardening process, delivering a fatigue resistance of approximately 10,200 psi, roughly 24% harder than conventional tri-metal race bearings
  • Reinforced intermediate layer – tin content increased to 4.5%, achieving 115 HV hardness (22% harder than standard), with a load-carrying capacity of 17,000 psi
  • SecureBond™ etching – improves multi-layer adhesion and overall structural integrity of the bearing
  • Bull's Eye Tolerance™ – proprietary wall thickness control technology maintains tolerances to ±0.0001 in., ensuring precise oil clearances without additional crank grinding or housing bore adjustments
  • Increased crush height – narrowed crank-cheek-side design improves bearing-to-bore contact, enhances heat transfer, and reduces spin potential at high RPM
  • Optimized eccentricity – medium eccentricity profile promotes even load distribution and improved oiling across the bearing surface
  • Available with or without dowel holes – compatible with a wide range of rod configurations

The XP Series was developed specifically for performance engines using forged steel aftermarket crankshafts that generate sustained high loads. The .026 oversize designation makes this set ideal for engines with reground crankshafts requiring the first oversize dimension.

Products specifications

Fits

Nissan Frontier 1999-2004, Pathfinder 1987-2000, Xterra 2000-04, Maxima 1985-94, 300ZX 1984-96, D21 1986-94, Pickup 1995, Quest 1993-2002, 200SX 1987-88; Infiniti J30 1993-97, QX4 1997-2000, M30 1990-92; Mercury Villager 1993-2002

Material

pMax Black (racing line)

Undersize

.026

STD Max Thickness

1.501

Housing Diameter

53.01 / 53.00 mm || 2.087 / 2.087 inch

Shaft UnderSize

.026mm

STD Shaft Diameter

49.97 / 49.96 mm || 1.968 / 1.967 inch
