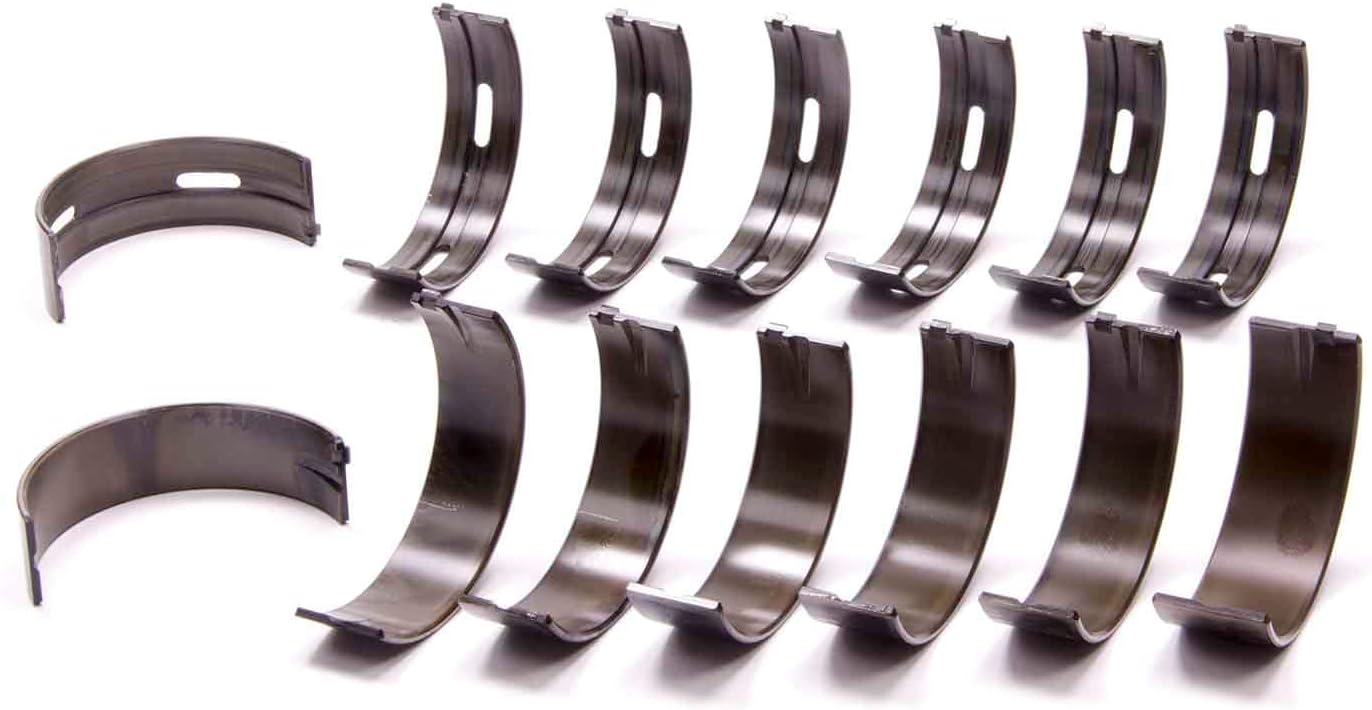

ACL Bearings 7M8103HX-STD Race Series Main Bearing Set Standard Size Toyota 1JZ 2JZ

Manufacturer

Part Number

7M8103HX-STD
Black Friday Price

$117.11

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Race Series 7M8103HX-STD is a high-performance main bearing set engineered for Toyota 1JZ-GE, 1JZ-GTE, 2JZ-GE, and 2JZ-GTE engines. These standard size main bearings feature ACL's proven tri-metal F780 copper-lead construction, delivering exceptional strength, wear resistance, and seizure protection under extreme racing conditions.

Key Features:

  • Tri-metal F780 copper-lead construction for superior durability and load capacity
  • Standard size (STD) with extra oil clearance (+0.001") for high-performance applications
  • High-strength overlay plate with reduced thickness for improved fatigue properties
  • Manufactured to exacting tolerances for reliable fit and consistent clearances
  • 3/4 grooved design optimizes bearing load surface area and oil flow
  • Elimination of flash plating on bearing backs for improved heat transfer
  • Increased eccentricity compensates for bore distortion at high RPM
  • Enlarged ID chamfers accommodate large fillet radius performance crankshafts

Specifications:

  • Bearing Size: Standard (STD)
  • Bearing Material: F780 Tri-Metal Copper-Lead
  • Bearing Type: Upper and lower halves included
  • Journal Size: 2.4403" - 2.441" (61.984mm - 62.001mm)
  • Housing Bore: 2.5992" - 2.5998" (66.02mm - 66.035mm)
  • Oil Clearance: 0.0027" - 0.0033" (0.068mm - 0.084mm)
  • Wall Thickness at Crown: 0.0784" (1.991mm)

ACL Race Series main bearings are trusted by championship-winning engine builders worldwide, from drift racing to NASCAR competition. These bearings provide the endurance and reliability required for high-RPM, high-horsepower builds on Toyota's legendary inline-six engines.

Products specifications

Max Overall Length

0.787" (20.00mm) w/ 8103H/HX 0.906" (23.00mm) w/ 8104H/HX

Max Std Shaft Size

2.4410" (62.001mm)

Max Std Tunnel Size

2.5998" (66.035mm)

Max Wall at Crown

0.0784" (1.991mm)

Min Std Shaft Size

2.4403" (61.984mm)

Min Std Tunnel Size

2.5992" (66.020mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
