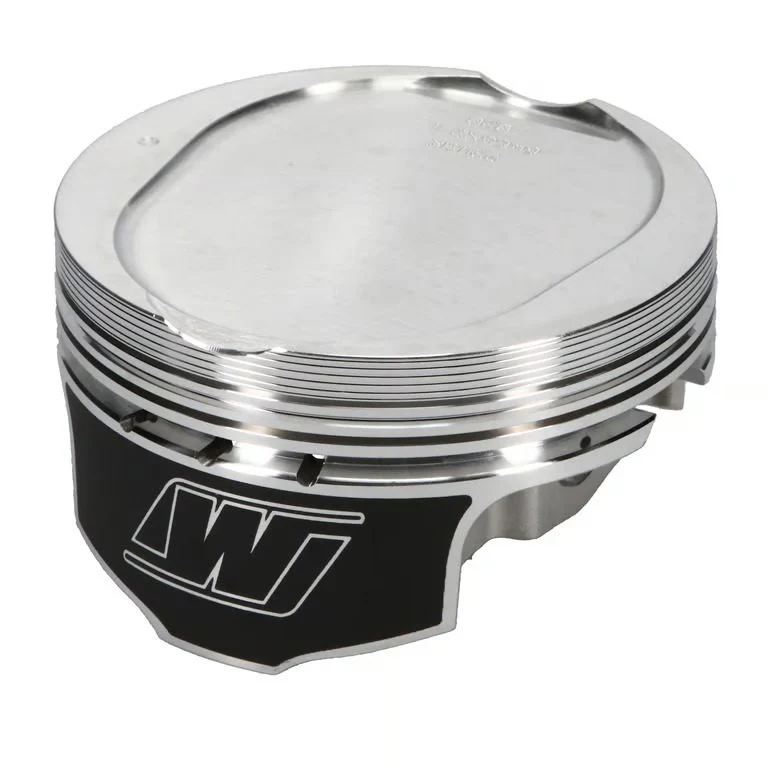

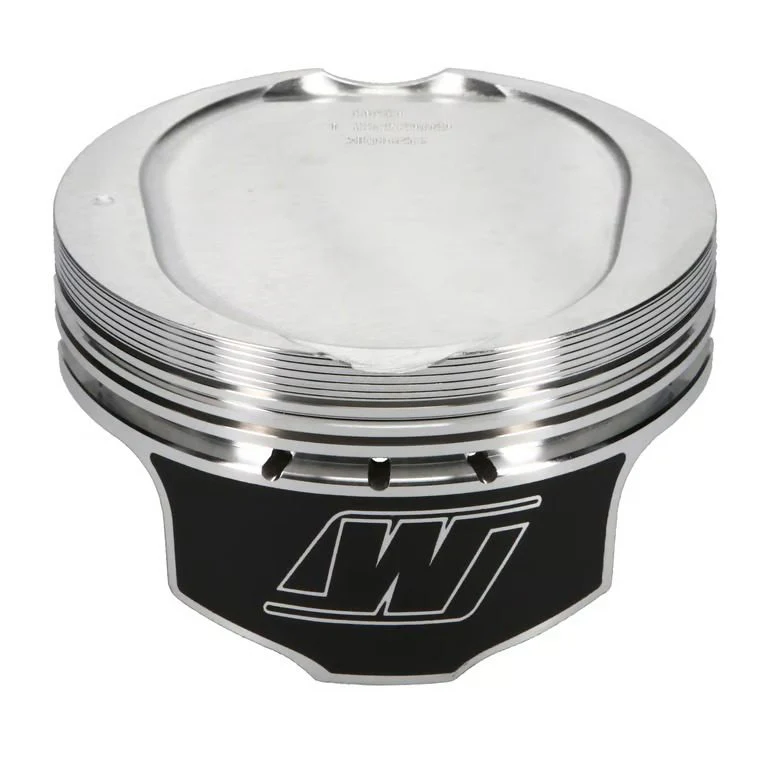

Wiseco 6465LX2 Professional Forged Piston Chrysler 5.7L Hemi -8cc R/Dome 3.937 in. Bore

(Jeep Grand Cherokee 2005-12, Commander 2006-10; Dodge Durango 2004-12, Ram 2500 2003-10, Ram 1500 2003-10, Challenger 2009-12, Ram 3500 2003-09 + 4 more models)

Manufacturer

Part Number

6465LX2
Black Friday Price

$147.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 6465LX2 is a Professional Series forged racing piston engineered specifically for the Chrysler 5.7L Hemi engine. Designed for serious engine builders targeting heavy to severe duty race applications, this shelf-stock piston delivers custom-level performance and durability straight out of the box.

Key Specifications:

  • Bore Diameter: 3.937 in.
  • Compression Height: 1.080 in.
  • Wrist Pin Diameter: 0.866 in.
  • Dome Volume: -8cc Reverse Dome (dish)
  • Ring Pack - Top Compression Ring Thickness: 1.0 mm
  • Wrist Pin Material: 5115 steel
  • Wrist Pin Style: Floating
  • Sold as: Single piston (Left-side / LX2)

Key Features:

  • 2618 Forged Aluminum Construction: Engineered and machined in the USA from 2618 aluminum alloy for superior tensile strength and durability under extreme cylinder pressures
  • ArmorGlide® Skirt Coating: A permanently applied dry-film lubricant on the piston skirt that reduces friction, improves seizure resistance, and quiets piston operation in the bore
  • Reverse Dome (-8cc) Crown Design: Optimized combustion chamber geometry to promote efficient charge mixing and help resist detonation and pre-ignition
  • Valve Pockets: Designed to maximize flow around the valves and accommodate oversized valves and high-lift camshafts
  • Floating Wrist Pin: 5115 steel wrist pin included for smooth, reliable operation under high loads
  • Shelf Stock Availability: Ready to ship — no custom lead times required

Wiseco Professional Series pistons are the choice of serious engine builders competing in venues ranging from NHRA Pro Stock to road racing. Forged and machined at Wiseco's Mentor, Ohio manufacturing facility, the 6465LX2 delivers the precision and durability demanded by high-performance Chrysler 5.7L Hemi builds. Wrist pin is included; premium ring set sold separately or available as part of a complete kit.

Products specifications

Fits

Jeep Grand Cherokee 2005-12, Commander 2006-10; Dodge Durango 2004-12, Ram 2500 2003-10, Ram 1500 2003-10, Challenger 2009-12, Ram 3500 2003-09, Magnum 2005-08; Audi S5 2008-11; Chrysler Aspen 2007-09, Ford 300 2005-12

Comp Height

1.08

Comp Ratio @ 65CC

11:1

Comp Ratio @ 73CC

10.1:1

Comp Ratio @ 85CC

9.0:1

Dome Volume

-8

Gram Weight

403

Rod

6.125

Stroke

4.08

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chrysler

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

3.937

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

2.8

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Wrist Pin Outer Diameter

0.866

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1.0

EBAY Category ID

33623

Make - Web

Chrysler

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Engine - Web

Hemi Gen 3

Piston Volume

-5.00

Engine

5.7L Hemi

Compression Height

1.080

Title

Wiseco - Chrysler, 5.7L Hemi, 3.937 in. Bore, Piston

Title - Web

Professional Chrysler 5.7L Hemi Piston - 3.937 in. Bore - 1.080 .in CH, -5.00 CC
