Skyjacker F17802KS-H 8.5 Inch Suspension Lift Kit with 4-Link Conversion, Front Coil Springs, Rear Leaf Springs & Hydro 7000 Shocks

(2017-2018 Ford F-250 Super Duty; 2017-2018 Ford F-350 Super Duty)

Manufacturer

Part Number

F17802KS-H
Black Friday Price

$2,984.71

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Skyjacker F17802KS-H is a comprehensive 8.5-inch suspension lift kit engineered specifically for the Ford F-250 and F-350 Super Duty with a gas engine. This system completely re-engineers the factory suspension through a full 4-Link conversion, replacing the OEM radius arm setup with integrated radius arm drop brackets plus upper and lower adjustable control arms for dramatically improved articulation, caster correction, and off-road capability.

At the front, Skyjacker's Softride® variable-rate coil springs deliver a smoother, more controlled ride by maximizing wheel travel and extending spring life. A drop pitman arm corrects steering geometry at ride height, while sway bar lowering brackets, bump stop spacer brackets, and a steering stabilizer relocation bracket ensure proper alignment of all chassis components after the lift. A heavy-duty trackbar relocation bracket keeps the front axle precisely centered under load.

The rear of the kit uses Softride® leaf springs featuring tapered leafs that distribute load more evenly and promote flex at the leaf ends, with Teflon® wear pads between leaves to reduce friction and noise. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions, and exhaust hanger brackets are all included to complete the rear install.

All four corners are damped by Skyjacker Hydro 7000 series shocks, purpose-built to deliver superior damping performance, reduce vibration and impacts, and provide a smooth, confident ride both on and off the road.

Key Features:

  • Lift Height: 8.5 inches
  • Shock Series: Hydro 7000 (qty. 4)
  • 4-Link Conversion: Adjustable upper and lower control arms formed from 2-inch OD DOM tubing with forked clevis ends and forged rod ends
  • Softride® Variable-Rate Front Coil Springs for maximized wheel travel and ride comfort
  • Softride® Rear Leaf Springs with tapered leaves and Teflon® wear pads
  • Drop pitman arm for corrected steering angle at lifted height
  • Heavy-duty trackbar relocation bracket keeps axle centered
  • Sway bar lowering brackets, bump stop spacer brackets, and steering stabilizer relocation bracket included
  • Rear braided stainless steel brake line extensions and e-brake relocation brackets included
  • All necessary mounting hardware and detailed instructions included
  • Limited Lifetime Warranty

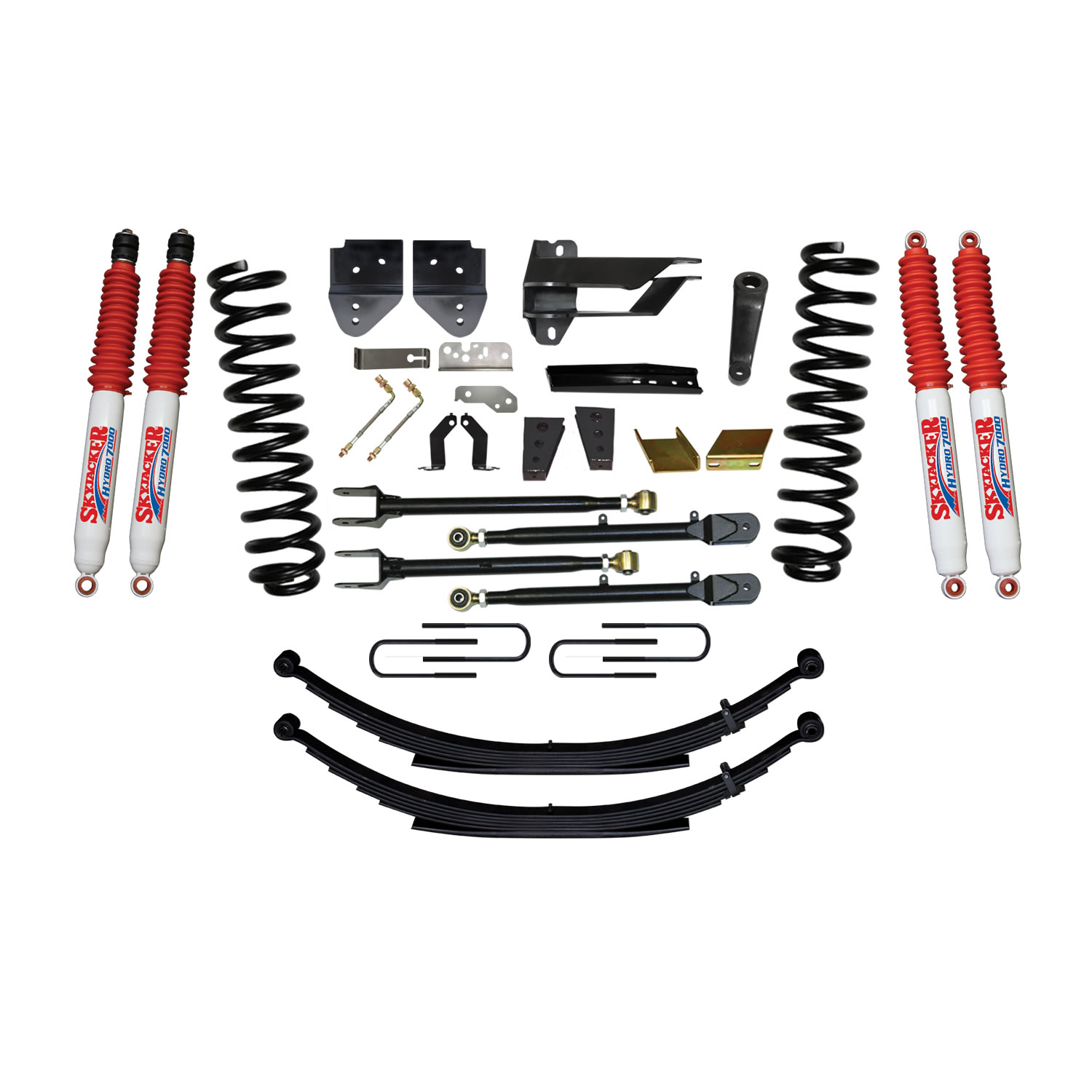

What's Included:

  • (4) Hydro 7000 Shocks
  • (2) Variable-Rate Front Coil Springs
  • (2) Rear Leaf Springs
  • (1) Trackbar Relocation Bracket
  • (1) Drop Pitman Arm
  • (2) Radius Arm Brackets
  • (1) Steering Stabilizer Relocation Bracket
  • (2) Sway Bar Lowering Brackets
  • (2) Bump Stop Spacer Brackets
  • Rear braided stainless steel brake line extensions
  • E-brake relocation brackets and exhaust hanger brackets

Note: Professional installation by a qualified mechanic is strongly recommended. Does not fit models equipped with the Tremor package. If front driveshaft vibration occurs after installation, order Skyjacker extended driveshaft part #F17685DS.

Products specifications

Fits

2017-2018 Ford F-250 Super Duty; 2017-2018 Ford F-350 Super Duty

Lift/Drop Height

8.5 in.

Prop 65

Yes
