The Skyjacker F17852KS-M is a comprehensive 8.5-inch suspension lift kit engineered specifically for 4WD diesel-powered Super Duty trucks. Skyjacker completely re-engineered the Super Duty's front suspension architecture through a full 4-Link Conversion system, replacing the factory radius arms with adjustable Flex Link upper and lower control arms for dramatically improved geometry and caster adjustability.
The adjustable Flex Links are formed from 2-inch OD x 0.250-wall DOM tubing with a forked clevis end at the lower axle mount and a 1-1/4-inch forged rod end with RB-style rubber bushing at the upper bracket. This design allows precise caster correction to maintain proper handling after the lift. Up front, Skyjacker's legendary Softride® Variable Rate Coil Springs are purpose-built for the Super Duty 4WD Diesel platform to maximize wheel travel, ride quality, and long-term spring life.
Supporting hardware ensures every critical geometry point is addressed: an ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to keep the axle centered, a drop pitman arm corrects steering angle, sway bar lowering brackets realign the front sway bar, front brake line extension brackets reposition brake lines, and a steering stabilizer relocation bracket enforces the stabilizer connection. Out back, Skyjacker Softride® Rear Leaf Springs feature tapered leaves for more even load distribution and increased flex at the leaf ends.
Damping is handled by Skyjacker's M9500 Monotube Shocks — a high-pressure, nitrogen-charged single-tube design with a large 46mm bore and Internal Floating Piston Technology. The monotube construction keeps operating temperatures cooler under extreme conditions while delivering faster shock response than conventional twin-tube designs, with no fade or lag for consistent on- and off-road performance.
Key Features:
- 8.5-inch suspension lift height
- Full 4-Link Conversion replaces OEM radius arm system
- Adjustable Flex Link upper and lower control arms — 2-inch OD x 0.250-wall DOM tubing
- Softride® Variable Rate front coil springs engineered for Super Duty 4WD Diesel
- Softride® rear leaf springs with tapered leaves for improved load distribution
- M9500 Series Monotube Shocks — 46mm bore, high-pressure nitrogen, floating piston technology
- Ultra heavy-duty track bar relocation bracket keeps axle centered
- Drop pitman arm corrects steering angle post-lift
- Front sway bar lowering brackets, brake line extension brackets, and bump stop spacers included
- Steering stabilizer relocation bracket included
- Diesel engines only — does not fit Tremor Package models
- Limited Lifetime Warranty

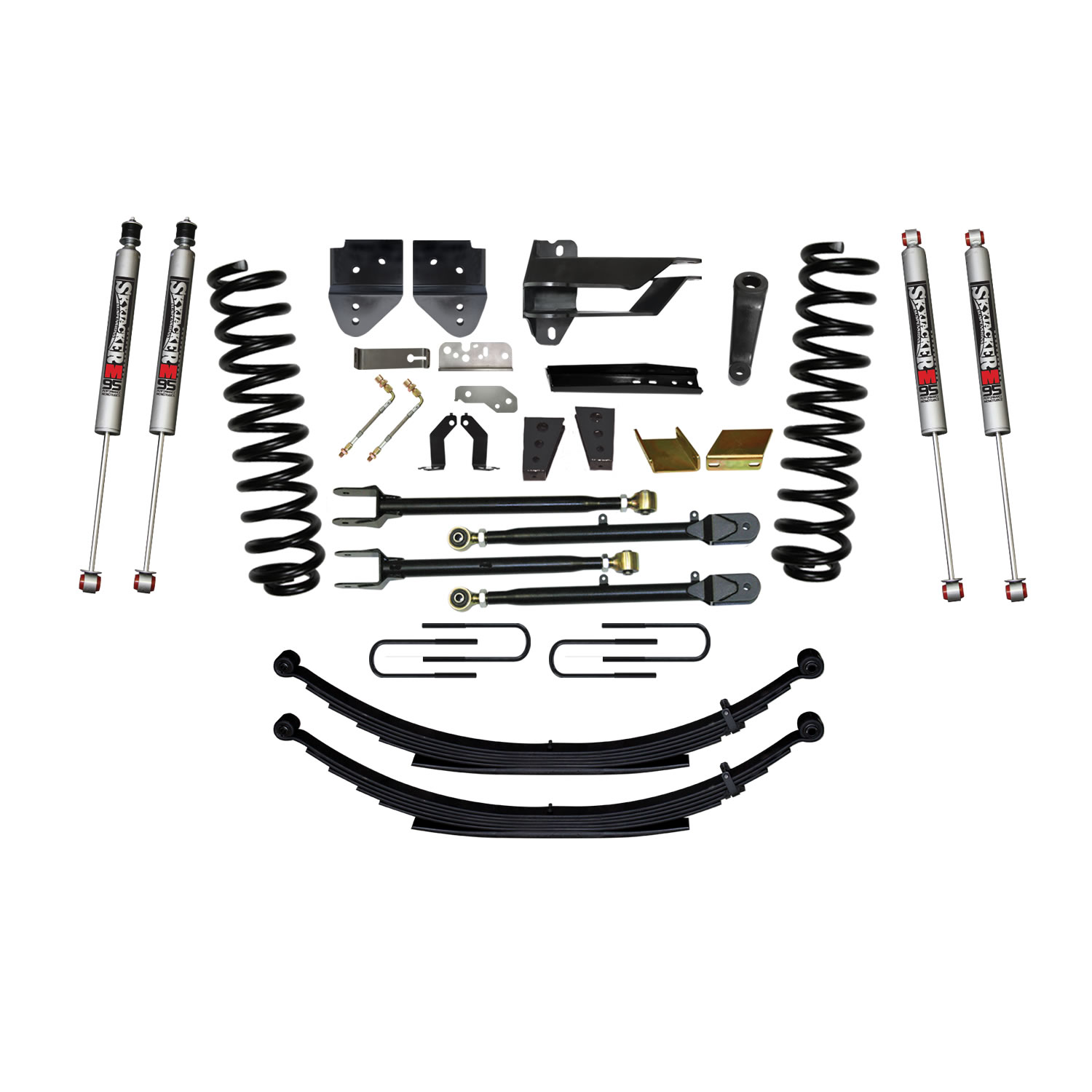

Kit Includes:
- Front Softride® Variable Rate Coil Springs
- Rear Softride® Leaf Springs
- Upper & Lower Adjustable Flex Link 4-Link Arms
- Radius Arm Drop Brackets
- M9500 Monotube Shocks (front and rear)
- Track Bar Relocation Bracket
- Drop Pitman Arm
- Stabilizer Bracket
- Sway Bar Lowering Brackets
- Brake Line Extension Brackets
- Bump Stop Spacers
- U-Bolts and all necessary mounting hardware
Note: Does not fit models equipped with the Tremor Package. If front driveshaft vibration occurs after installation, order extended driveshaft part #F17685DS. For diesel engines only. California residents: see Prop 65 warning at P65Warnings.ca.gov.
