The Skyjacker F17852KS-N is a comprehensive 8.5-inch suspension lift system engineered specifically for 2017–2019 Ford F-250 and F-350 Super Duty diesel trucks. This kit performs a full 4-Link Conversion, replacing the factory radius arms with an integrated system of upper and lower adjustable Flex Link control arms for improved geometry, caster correction, and on- and off-road handling.
The adjustable Flex Links are formed from 2-inch OD x 0.250 wall DOM tubing, with a forked clevis end at the lower axle mount and a 1-1/4" forged rod end with RB-style rubber bushing at the upper bracket. This adjustability allows precise caster settings that restore proper steering geometry at lift height. Front lift is provided by Skyjacker's Softride® Variable Rate Coil Springs, purpose-engineered for the Super Duty 4WD diesel platform to maximize wheel travel and long-term spring life.
An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement and keep the axle centered. A drop pitman arm corrects steering angle, sway bar lowering brackets realign the front sway bar, and a heavy-duty steering stabilizer relocation bracket reinforces the stabilizer connection. Front brake line extension brackets and bump stop drop spacers correctly reposition those components at the new ride height.
Rear lift is handled by Skyjacker's Softride® Leaf Springs, which feature tapered leafs to distribute loads more evenly and create greater flex at the leaf ends. Front and rear damping is handled by the included Nitro 8000 shocks. All necessary mounting hardware and detailed installation instructions are included.
Key Features:
- 8.5-inch lift via full 4-Link Conversion system
- Adjustable Flex Link upper and lower control arms — 2" OD x 0.250 wall DOM tubing
- Softride® Variable Rate Front Coil Springs engineered for Super Duty 4WD Diesel
- Softride® Rear Leaf Springs with tapered leaf design for load distribution and flex
- Nitro 8000 shocks front and rear
- Drop pitman arm, heavy-duty track bar relocation bracket, and steering stabilizer bracket included
- Sway bar lowering brackets, bump stop spacers, and brake line extension brackets included
- Rear U-bolts included
- Diesel engines only — does not fit Tremor Package models
- Limited Lifetime Warranty
- UPC: 803696253930
Important Notes:
- Designed for diesel engine applications only
- Does not fit F-250/F-350 models equipped with the Tremor Package
- If front driveshaft vibration occurs after installation, order extended driveshaft Part # F17685DS
- California Residents: WARNING — Cancer and Reproductive Harm. See www.p65warnings.ca.gov

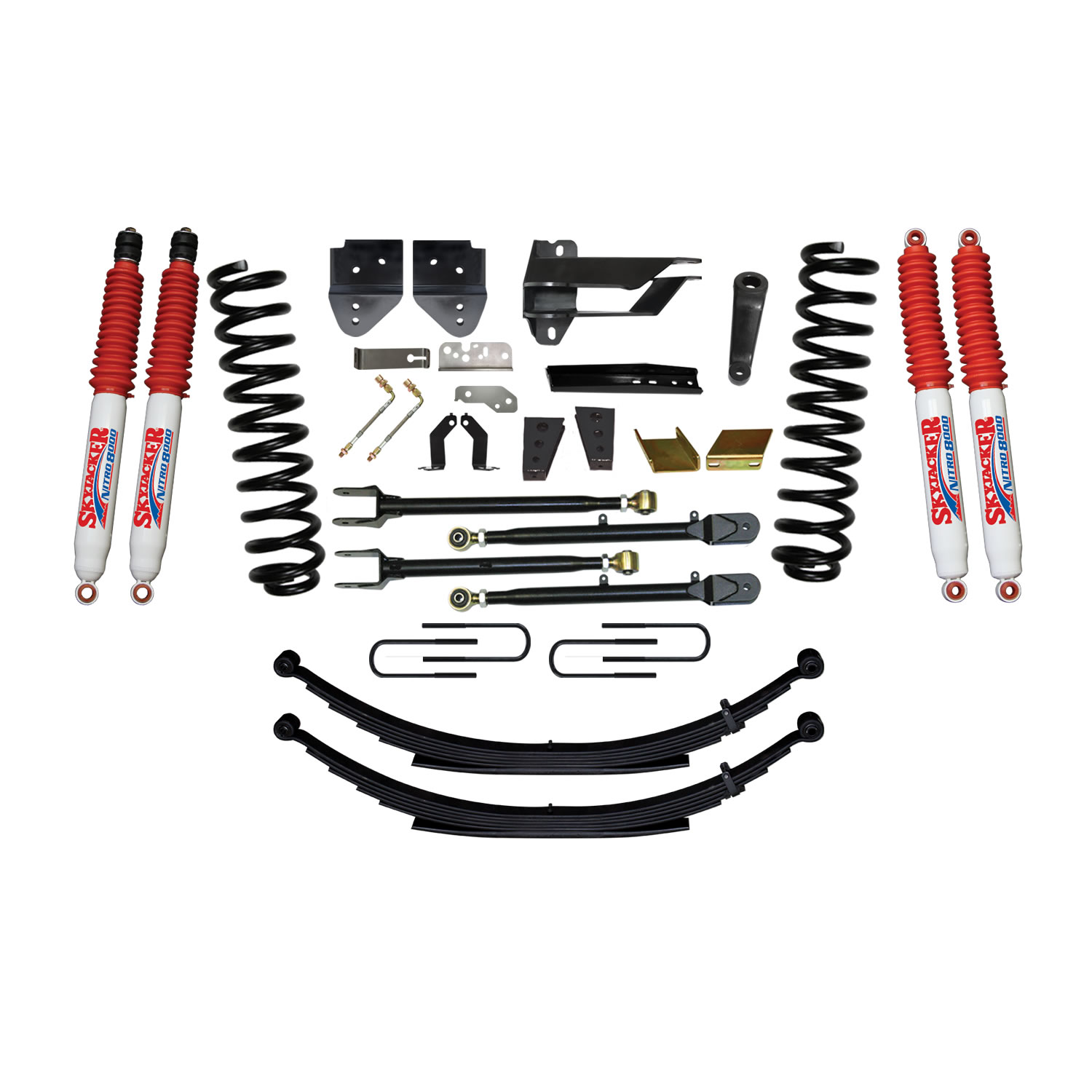

What's Included:
- Front Variable Rate Coil Springs (Softride®)
- Rear Leaf Springs (Softride®)
- Upper and Lower Adjustable 4-Link Flex Link Control Arms
- Nitro 8000 Shocks (front and rear)
- Radius Arm Brackets
- Track Bar Relocation Bracket
- Drop Pitman Arm
- Steering Stabilizer Bracket
- Sway Bar Lowering Brackets
- Bump Stop Spacers
- Front Brake Line Extension Brackets
- Rear Brake Line Extensions
- Rear U-Bolts
- All necessary mounting hardware and installation instructions
